Product Description:

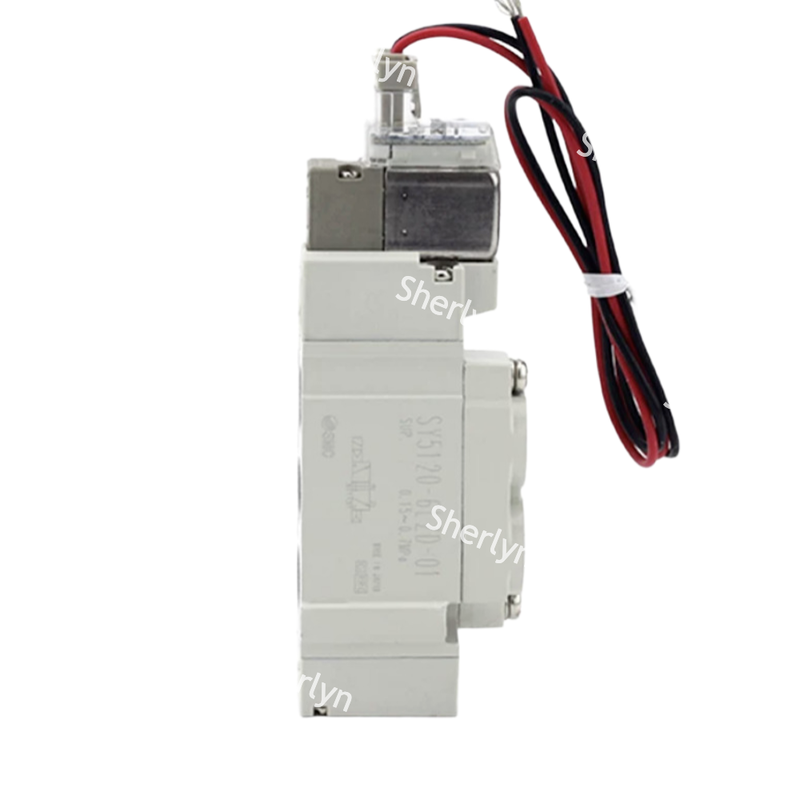

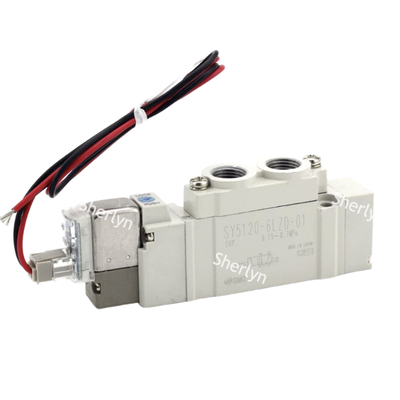

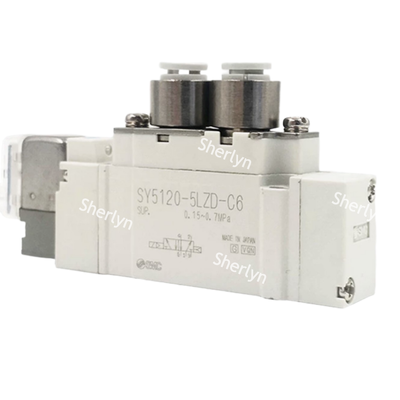

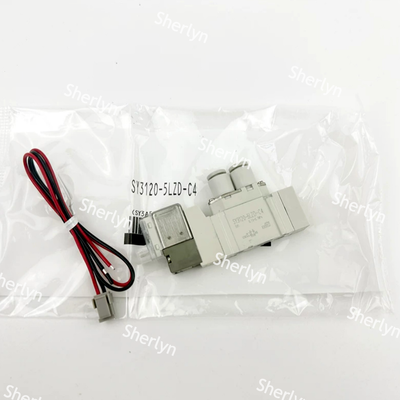

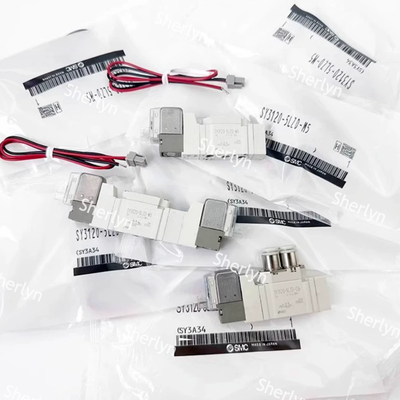

The SMC SY3120 is part of the SY3000 series, which features compact 5/2 way internal pilot solenoid valves. This valve is designed with a mini-sized directional control structure that includes a single coil and spring return mechanism.
It offers versatile connection options, such as M5 threaded ports and quick fitting ports in φ4 or φ6 sizes. Additionally, there are two different mounting styles available: either an individual body ported configuration or a manifold base mounted setup.
The valve operates with clean compressed air as its working medium and does not require air lubrication. Its standard working pressure ranges from 0.15 to 0.7 MPa. The coil voltage options commonly available are DC 24V and DC 12V.
Due to its compact size and reliable performance, the SY3120 is widely used as a standard control component in mini air cylinders, pneumatic grippers, and vacuum air switching applications within compact automated equipment.
Applications:
Electronics & Semiconductor
The Electronics and Semiconductor industry utilizes a range of specialized equipment including SMT mounters, dispensers, and PCB separators. Key components such as control vacuum nozzles, mini grippers, and compact air cylinders play a vital role in enhancing precision and automation efficiency.
Packaging Machinery
In the field of Packaging Machinery, vertical packing machines, sealers, and labeling machines are widely employed. These machines often incorporate cutter cylinders, hopper cylinders, and tension mechanism controls to ensure accurate and reliable packaging processes.
Automated Assembly Line
Automated assembly lines benefit from the use of mini conveyors, transfer modules, and various fixtures. These components assist in clamping, lifting, and positioning by utilizing cylinder controls, which streamline the assembly operations efficiently.
Auto Parts Manufacturing
The auto parts manufacturing sector employs inspection jigs and compact press machines designed specifically for workpiece clamping and locating. Air circuit systems are integrated to facilitate smooth and precise operations during the manufacturing process.
Medical & Lab Equipment
In medical and laboratory environments, biochemical analyzers and lab test fixtures are essential. These devices often use pneumatic controls for clean gas and inert gas on-off regulation to maintain accurate testing conditions.
Plastic & Injection Auxiliary Machine
Auxiliary machinery in the plastic and injection molding industry includes blow molding equipment complemented by ejector cylinders and nozzle pneumatic switch controls, enabling precise molding and product ejection.
Custom Automation
Custom automation solutions involve mini robots, sorting machines, and laser fixtures. These systems rely on auxiliary pneumatic actuators to control various functions, enhancing automation flexibility and productivity.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and reliability in various industrial applications. For technical support, please refer to the product manual for installation, operation, and maintenance guidelines to ensure optimal functionality and longevity.
If you encounter any operational issues, verify that the cylinder is installed correctly, and that air pressure and flow meet the specified requirements. Regular inspection for leaks, wear, and proper lubrication will help maintain performance.
We offer comprehensive services including troubleshooting assistance, replacement parts, and repair services to minimize downtime. For detailed technical inquiries, please consult the FAQ section or the online resources available on our website.
Our support team is committed to providing prompt and efficient service to help you maximize the benefits of your Piston Pneumatic Cylinder. Ensure that all service and repairs are carried out by qualified personnel to maintain product safety and warranty coverage.
Packing and Shipping:
Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure safe delivery. The cylinder is first wrapped in a protective foam sleeve to prevent scratches and damage during transit. It is then placed inside a sturdy cardboard box with adequate cushioning materials such as bubble wrap or foam inserts to absorb shocks. The packaging is sealed securely and labeled with product information, handling instructions, and barcodes for easy identification.
Shipping: We offer reliable shipping options to deliver the Piston Pneumatic Cylinder promptly and safely. Orders are processed within 1-2 business days, and shipping methods include standard, expedited, and express delivery services. The product is shipped via trusted carriers with tracking available for all shipments. For international orders, customs documentation is prepared to ensure smooth clearance. Customers will receive a confirmation email with tracking details once the product has been dispatched.
