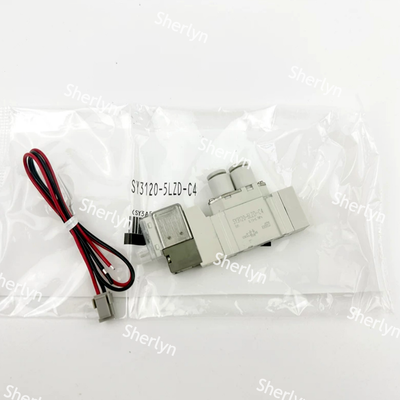

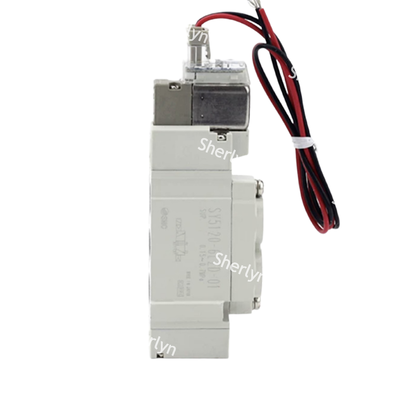

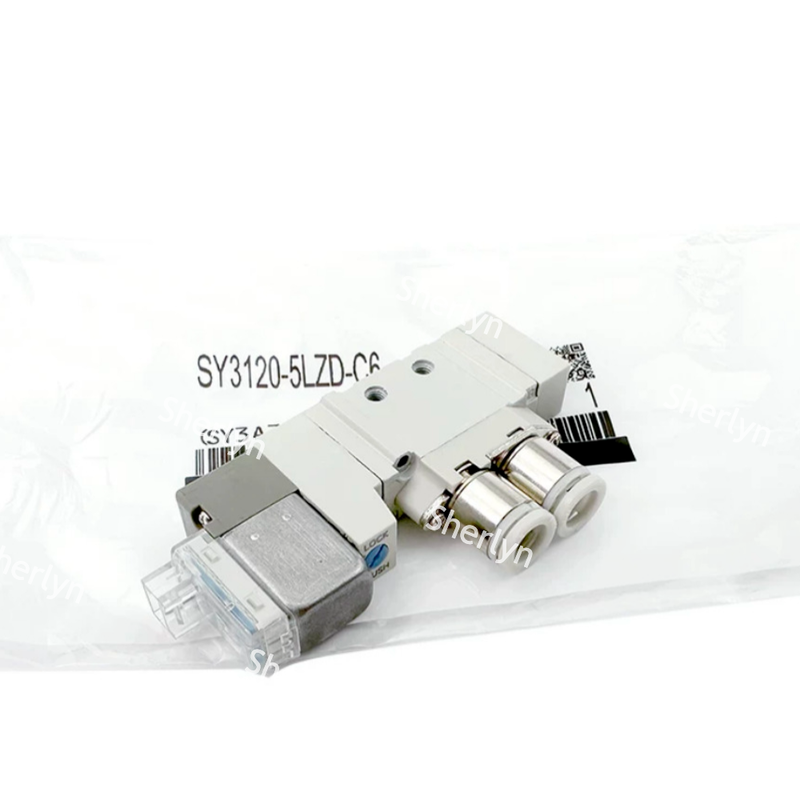

Product Description:
The SMC SY3120 is a part of the SY3000 series, which features compact 5/2 way internal pilot solenoid valves. This valve is designed to be mini-sized, making it ideal for applications where space is limited. It operates as a directional control valve equipped with a single coil and a spring return mechanism.
The SY3120 valve is available with various port options, including M5 thread and φ4/φ6 quick fitting ports. Users can choose between two mounting methods: either an individual body ported configuration or a manifold base mounted setup. These options provide flexibility for different installation needs.
This valve is designed to work with clean compressed air and does not require air lubrication for optimal performance. It has a standard operating pressure range from 0.15 to 0.7 MPa. Additionally, the valve supports common coil voltages such as DC 24V and DC 12V, accommodating various electrical systems.
Thanks to its compact design and reliable functionality, the SMC SY3120 serves as a standard control component for mini air cylinders, pneumatic grippers, and vacuum air switching. It is widely used in compact automated equipment where efficient and precise pneumatic control is essential.
Applications:
Electronics & Semiconductor
In the field of electronics and semiconductors, various equipment are utilized such as SMT mounters, dispensers, and PCB separators. Control of vacuum nozzles, mini grippers, and compact air cylinders plays a crucial role in ensuring precision and efficiency.
Packaging Machinery
Packaging machinery includes vertical packing machines, sealers, and labeling machines designed for cutter cylinders. These machines also incorporate hopper cylinders and tension mechanism controls to enhance packaging performance.
Automated Assembly Line
Automated assembly lines employ mini conveyors, transfer modules, and specialized fixtures. These fixtures assist in clamping, lifting, and positioning with the help of cylinder control systems.
Auto Parts Manufacturing
In the automotive parts manufacturing industry, auto component inspection jigs and compact press machines are used. These machines handle workpiece clamping and locating through precise air circuit management.
Medical & Lab Equipment
Medical and laboratory equipment includes biochemical analyzers and test fixtures designed for the control of clean and inert gases, allowing for reliable on-off switching in various lab environments.
Plastic & Injection Auxiliary Machine
Auxiliary machines in plastics and injection molding involve blow molding equipment. These machines utilize ejector cylinders and pneumatic switches to effectively control nozzle operations.
Custom Automation
Custom automation solutions include mini robots, sorting machines, and laser fixtures. These applications benefit from auxiliary pneumatic actuator controls to enhance automation processes.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and durability in various industrial applications. To ensure optimal operation, regular maintenance and proper handling are essential.
If you experience any issues with the piston pneumatic cylinder, first refer to the product manual for troubleshooting tips and installation guidelines. Common issues such as air leakage, reduced stroke, or irregular movement can often be resolved by checking connections, seals, and lubrication.
For technical support, our team of experts is available to assist with installation advice, troubleshooting, and replacement parts. We recommend using only genuine parts and accessories to maintain product integrity and performance.
We also offer comprehensive maintenance services to extend the lifespan of your pneumatic cylinders, including inspection, cleaning, seal replacement, and performance testing.
To maximize the efficiency and reliability of your pneumatic system, ensure that the cylinder is operated within the specified pressure and temperature ranges and avoid exposure to corrosive environments unless the cylinder is specially coated or designed for such conditions.
For detailed service procedures, technical datasheets, and installation videos, please refer to our online resources or product documentation provided with your purchase.
Packing and Shipping:
Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static bubble wrap to prevent any surface damage. It is then placed inside a sturdy, custom-fitted cardboard box with additional cushioning materials to absorb shocks and vibrations. The packaging is sealed securely and labeled with handling instructions and product details to ensure safe and easy identification.
Shipping: We offer reliable shipping options to deliver the Piston Pneumatic Cylinder promptly and safely to your location. Orders are processed within 1-2 business days. Shipping methods include standard ground shipping, expedited air freight, and international courier services. All shipments come with tracking information so you can monitor your package’s progress. We also provide insurance options to cover any potential damage or loss during transit.
