Product Description:

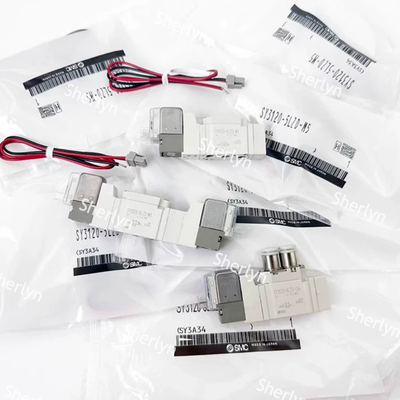

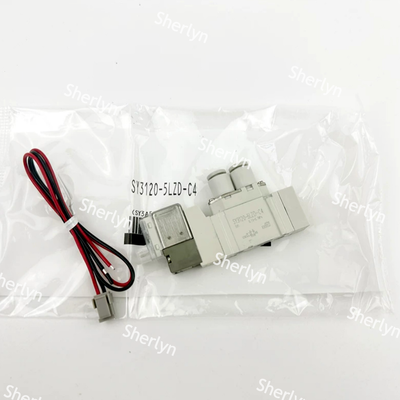

The SMC SY3120 is a part of the SY3000 series, which features compact 5/2 way internal pilot solenoid valves. This model is a mini-sized directional control valve designed with a single coil and a spring return mechanism.
It comes with various port options, including M5 thread and quick fitting ports with diameters of φ4 or φ6. Additionally, there are two mounting methods available: either individual body ported or mounted on a manifold base.
The valve operates using clean compressed air as the working medium, and it does not require air lubrication. It supports a standard working pressure range of 0.15 to 0.7 MPa, with common coil voltages of DC 24V or DC 12V.
This valve serves as a standard control component widely used in compact automated equipment. Typical applications include mini air cylinders, pneumatic grippers, and vacuum air switching systems.
Applications:
Electronics & Semiconductor
This sector involves a variety of advanced equipment such as SMT mounters, dispensers, and PCB separators.
It also includes precise components like control vacuum nozzles, mini grippers, and compact air cylinders
to ensure efficient and accurate manufacturing processes.
Packaging Machinery
In packaging machinery, vertical packing machines, sealers, and labeling machines play essential roles.
These are supported by cutter cylinders, hopper cylinders, and tension mechanism controls to maintain
smooth and reliable packaging operations.
Automated Assembly Line
Automated assembly lines utilize mini conveyors, transfer modules, and specialized fixtures designed
for clamping, lifting, and positioning. These functions are managed by cylinder control systems to
optimize production efficiency.
Auto Parts Manufacturing
In the manufacture of automotive parts, the focus is on inspection jigs and compact press machines.
These tools assist with workpiece clamping and locating, facilitated through sophisticated air circuit controls.
Medical & Lab Equipment
Medical and laboratory equipment includes biochemical analyzers and lab test fixtures.
These devices feature clean gas and inert gas on-off control systems to ensure accurate and safe testing environments.
Plastic & Injection Auxiliary Machines
The plastic and injection molding industry employs blow molding equipment, ejector cylinders, and
nozzle pneumatic switch controls to support auxiliary machine functions in the production process.
Custom Automation
Custom automation solutions include mini robots, sorting machines, and laser fixtures.
These systems utilize auxiliary pneumatic actuators for precise and flexible control during operation.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation.
We offer detailed product documentation, including user manuals, specification sheets, and safety instructions to help you understand the features and proper usage of the pneumatic cylinder. Our support team is equipped to answer technical inquiries and provide solutions tailored to your specific application requirements.
To maximize the lifespan and performance of your piston pneumatic cylinder, we recommend regular inspection and maintenance. This includes checking for air leaks, ensuring proper lubrication, and verifying alignment and mounting. Replacement parts and accessories are available to support ongoing maintenance needs.
Additionally, we provide training resources and service programs aimed at enhancing your operational knowledge and ensuring your equipment runs smoothly. Our commitment is to support you throughout the product lifecycle to minimize downtime and improve productivity.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is individually wrapped with anti-static and moisture-resistant materials to prevent damage and corrosion. The product is then securely placed in a custom-fitted foam insert within a sturdy, double-walled cardboard box to minimize movement and absorb shocks.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are clearly labeled with handling instructions and product details to facilitate smooth processing. We also offer additional packaging options upon request for bulk orders or special requirements, ensuring your Piston Pneumatic Cylinder arrives in perfect condition.
