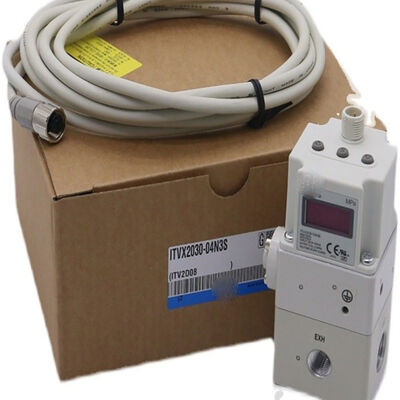

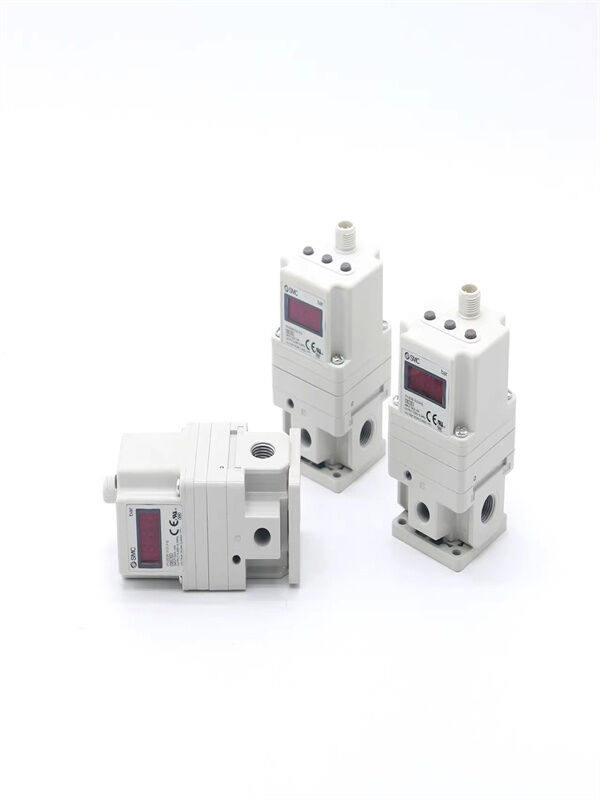

ITV1030-011 ITV1030-012 ITV1030-013 SMC electro-pneumatic proportional regulator delivering IP65 Protection Class for enhanced control accuracy

Product Description:

The ITV1000 series is a line of compact electro-pneumatic proportional pressure regulators developed by SMC. These regulators are designed to continuously and accurately control the output pressure of compressed air. They achieve this by using an analog voltage or current signal from a PLC, combined with a closed-loop control system to maintain precise pressure adjustments.

This series includes two main pressure ranges to accommodate different application needs: the ITV1030 model supports pressures from 0.005 to 0.5 MPa, while the ITV1050 model handles pressures from 0.005 to 0.9 MPa. Additionally, the series offers multiple variants distinguished by suffix codes such as 011, 012, 013, 112, 113, 211, 212, 213, 312, and 313, which cater to various signal configurations.

Featuring a high-precision closed-loop sensor design, the ITV1000 series delivers excellent performance with a linearity of ±1% FS, hysteresis of less than or equal to 0.5% FS, sensitivity of 0.2% FS, and repeatability within ±0.5% FS. The regulator provides a rapid no-load response time of 0.1 seconds, ensuring stable and interference-resistant pressure control.

Its compact and lightweight construction allows for easy DIN rail mounting. The device is equipped with a built-in LED digital pressure indicator and a fault alarm LED to enhance user convenience. With an IP65 rating for ingress protection, the ITV1000 series is well-suited for use with clean, dry compressed air in various industrial environments.

Technical Parameters:

Applications:

The SMC Solenoid Valves, specifically the ITV1030 model from the ITV1000 Series, are renowned for their exceptional precision and reliability in various industrial applications. As a precision pneumatic pressure control valve, the ITV1030 offers outstanding accuracy in regulating air pressure, making it an ideal choice for industries requiring meticulous control of pneumatic systems. Certified with CE standards, this electronically controlled air regulator ensures both safety and performance compliance, catering to global market demands.

One of the primary application occasions for the SMC ITV1030 precision pneumatic pressure control valve is in automated manufacturing environments. Here, it plays a crucial role in controlling pneumatic actuators, air cylinders, and other equipment that require stable and precise air pressure to function efficiently. Its rapid response time of 0.1 seconds (no-load) allows it to maintain tight pressure tolerances, which is pivotal for processes such as assembly lines, packaging systems, and robotic control where precision directly impacts product quality.

In addition, the SMC ITV1030 excels in laboratory and testing scenarios where exact pressure regulation is necessary for conducting experiments or quality assurance tests. The electronically controlled air regulator can be seamlessly integrated into test rigs or calibration setups due to its compact design, Rc1/4 port size, and flexible packaging options, which can be tailored according to client requirements.

The versatility of the SMC ITV1030 also extends to applications in the automotive industry, where it is used in pneumatic control systems for brake testing, engine testing, and other control systems requiring fine-tuned air pressure. Its supply ability of 5000 pieces per month and a fast delivery time of 1-7 workdays after payment ensures that it can meet the demands of high-volume production environments.

Moreover, the product’s payment terms, including T/T, Western Union, and Paypal, facilitate easy procurement, while the minimum order quantity of just one piece makes it accessible for both small-scale projects and large industrial deployments. With negotiable pricing and packaging details offered in cartons or customized as per client requests, the SMC ITV1030 precision pneumatic pressure control valve stands out as a flexible and dependable solution for a wide range of pneumatic pressure control scenarios.

Packing and Shipping:

All SMC Solenoid Valves are carefully packaged to ensure they arrive in perfect condition. Each valve is securely placed in protective packaging materials to prevent damage during transit. The packaging includes anti-static bags and sturdy boxes designed to safeguard the product from moisture, dust, and impact.

For shipping, we use reliable carriers with tracking options to provide timely and safe delivery. Orders are processed promptly, and customers receive confirmation along with tracking information. We offer various shipping methods to accommodate different delivery needs, including standard, expedited, and express shipping.

International shipments are handled with care, ensuring all necessary documentation and customs requirements are met to avoid delays. Our packaging and shipping protocols guarantee that your SMC Solenoid Valves reach you efficiently and in excellent working condition.
