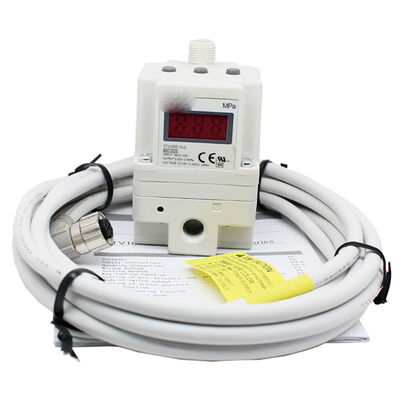

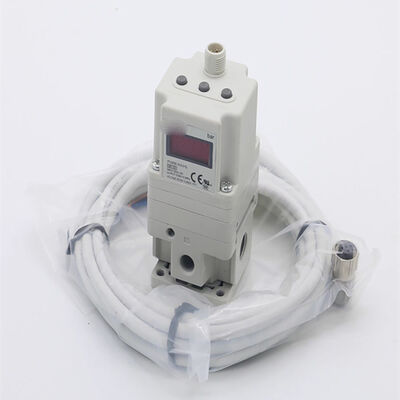

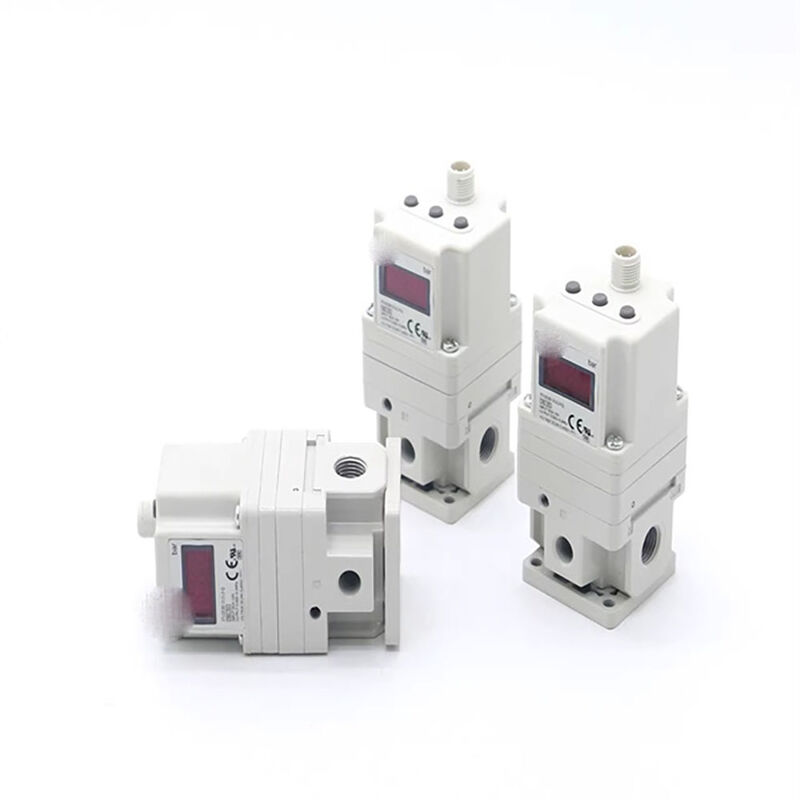

ITV1030-211 ITV1030-212 ITV1030-213 The ITV1000 series is SMC compact electro-pneumatic proportional pressure regulator

Product Description:

The ITV1000 series is a compact electro-pneumatic proportional pressure regulator manufactured by SMC. It is designed to continuously and accurately adjust the output pressure of compressed air based on an analog voltage or current signal received from a PLC. This is achieved through a closed-loop control system, ensuring precise pressure regulation at all times.

This product line includes two main pressure range models: the ITV1030, which operates between 0.005 and 0.5 MPa, and the ITV1050, which covers a range from 0.005 to 0.9 MPa. Additionally, there are various variants available with suffix codes such as 011, 012, 013, 112, 113, 211, 212, 213, 312, and 313, each designed to support different signal configurations according to specific application requirements.

The regulator incorporates a high-precision closed-loop sensor structure. It offers excellent performance characteristics including a linearity of ±1% FS, hysteresis not exceeding 0.5% FS, sensitivity at 0.2% FS, and repeatability within ±0.5% FS. Moreover, it boasts a quick response time of 0.1 seconds under no-load conditions, enabling stable and interference-resistant pressure control.

Its compact and lightweight design facilitates easy installation via DIN rail mounting. The unit is equipped with a built-in LED digital pressure indicator and a fault alarm LED for convenient monitoring. With an IP65 rating for ingress protection, the ITV1000 series is suitable for use with clean, dry compressed air environments.

Technical Parameters:

Applications:

The SMC Electro-pneumatic Proportional Regulator, model ITV1030, is a high-performance precision pneumatic pressure control valve designed for a wide range of industrial applications. With its CE certification and robust IP65 protection class, this product ensures reliable operation even in harsh environments. Its fast response time of 0.1 seconds (no-load) and low hysteresis of ≤0.5%FS make it ideal for applications requiring closed-loop pressure control with exceptional accuracy and stability.

One of the primary application occasions for the SMC ITV1030 solenoid valve is in automated manufacturing processes where precise pressure regulation is critical. This includes assembly lines, packaging machines, and robotic systems that demand consistent pneumatic pressure to maintain product quality and operational efficiency. The valve’s Rc1/4 port size and versatile compatibility allow it to integrate seamlessly into existing pneumatic systems.

Another common scenario involves laboratory and testing equipment that requires fine-tuned pressure adjustments. The electro-pneumatic proportional regulator’s ability to provide stable and repeatable pressure control makes it a preferred choice for research and development setups, where precision and responsiveness are essential.

In addition, the SMC ITV1030 is well-suited for use in process control industries such as chemical, pharmaceutical, and food processing. Its closed-loop pressure control functionality helps maintain optimal conditions, ensuring safety and compliance with industry standards. The product’s packaging can be customized according to client requirements, and with a minimum order quantity of just one piece, it caters both to small-scale and large-scale operations.

Customers benefit from flexible payment terms including T/T, Western Union, and PayPal, along with a quick delivery time of 1-7 workdays after payment. With a supply capacity of 5000 pieces per month, SMC guarantees availability to meet urgent demands. Pricing is negotiable, providing cost-effective solutions tailored to specific project needs.

Overall, the SMC electro-pneumatic proportional regulator ITV1030 stands out as a reliable, precise, and efficient solution for closed-loop pressure control in diverse pneumatic applications, making it an indispensable component in modern industrial automation.

Packing and Shipping:

All SMC Solenoid Valves are carefully packaged to ensure they arrive in perfect condition. Each valve is individually sealed in protective wrapping to prevent damage during transit. The packaging includes anti-static materials and cushioning to safeguard the delicate components inside.

For shipping, we use sturdy, high-quality boxes that provide excellent protection against impact and vibration. Each package is clearly labeled with product information and handling instructions to ensure safe and efficient delivery.

We offer multiple shipping options to meet your needs, including standard, expedited, and international shipping. Tracking information is provided with every order so you can monitor the shipment status in real time.

Our commitment is to deliver your SMC Solenoid Valves promptly and securely, ensuring optimal performance upon arrival.
