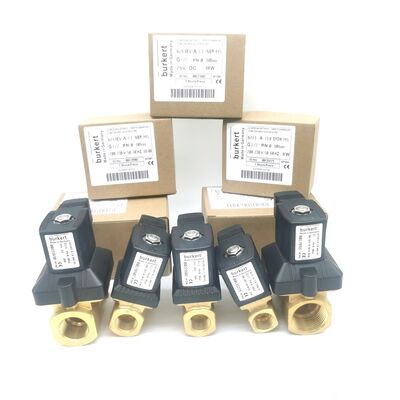

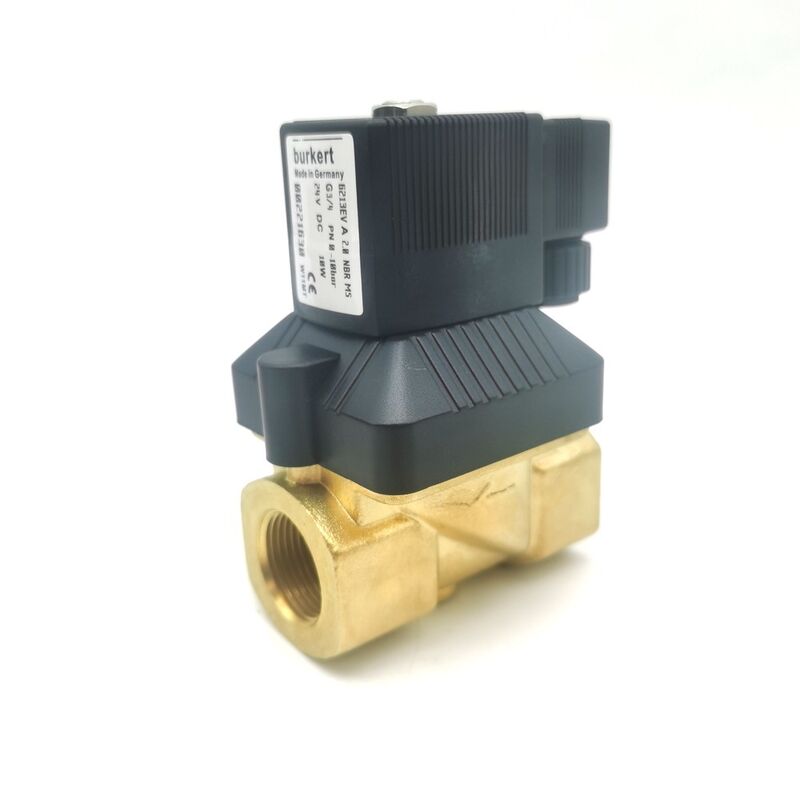

DC24V 8W Genuine Burkert 00221630 6213 NC Diaphragm Valve, G3/4 Internal Thread 20 Flow Hole NBR Gasket, Brass Housing For -10℃~80℃ 0-10bar Pipeline System

Product Description:

The Burkert Type 6213 is a high-performance 2/2-way servo-assisted diaphragm solenoid valve that has been developed by the renowned German manufacturer Bürkert. This valve comes with a robust forged brass body as a standard feature, ensuring durability and reliability. Designed to be compact, it provides stable and zero-leakage switching capabilities, making it ideal for handling neutral liquids, water, and low-pressure gases.

This versatile valve is extensively used across various sectors including industrial automation, water treatment, and commercial fluid control systems. Its reliable performance in these applications has made it a preferred choice for controlling fluids efficiently and safely.

The 6213 series is available in sizes ranging from DN10 to DN40, with thread connection options including BSPP and NPT to suit different installation requirements. It also offers multiple sealing material options such as NBR, EPDM, and FKM, catering to various fluid compatibility needs. Furthermore, the valve supports a range of global standard voltages, enhancing its adaptability for international use.

Equipped with energy-saving encapsulated coils, the valve ensures low energy consumption while maintaining high efficiency. Its IP65 rating provides waterproof protection, enabling it to operate reliably in harsh environments. This combination ensures long-lasting performance with minimal noise, making it suitable for continuous-duty applications.

Additionally, Bürkert offers an optional zero-differential pressure version of the Type 6213 valve. This variant is specifically designed for vacuum and gas applications, expanding the range of working conditions that the valve can handle. This flexibility allows users to select the most appropriate configuration based on their specific process requirements.

Features:

The valve body is crafted from standard brass using a hot-forged one-piece forming technique, ensuring there are no sand holes or impurities. This manufacturing process provides excellent resistance to oxidation, scaling, and mild chemical corrosion. Additionally, a dezincification-resistant brass version is offered for long-term use in water media. This version fully complies with EU standards for drinking water contact, making it safe for handling pure water, beverages, and food-grade fluids.

Thanks to its excellent thermal conductivity, the valve body prevents coil overheating during continuous operation at full duty cycle. Its robust structural ductility effectively protects against cracking caused by frequent pressure fluctuations. Compared to plastic or thin cast iron valves, this brass valve body demonstrates significantly enhanced durability and reliability.

Various seal materials are available to ensure compatibility with different media:

• NBR seal: Suitable for tap water, air, and common hydraulic oil within a temperature range of -10℃ to +80℃.
• EPDM seal: Designed for pure water, hot water, and steam-free neutral liquids, operating between -30℃ and +100℃. This seal is approved for food and drinking water applications.
• FKM seal: Ideal for high-temperature oil, weak acids and alkalis, and corrosive neutral media, functioning from 0℃ to +90℃.

All sealing structures are engineered to achieve bubble-tight zero leakage across the entire pressure range, ensuring no dripping even during extended periods of continuous switching.

Technical Parameters:

Applications:

Support and Services:

Burkert Solenoid Valves are precision-engineered components designed for reliable control of liquids and gases in various industrial applications. Our technical support team is dedicated to assisting you with installation, operation, maintenance, and troubleshooting to ensure optimal performance of your solenoid valve.

For installation, ensure that the valve is mounted according to the flow direction indicated on the valve body. Verify that the electrical connections comply with the specified voltage and current ratings. Use appropriate tools to avoid damage during assembly.

During operation, monitor the valve for any signs of leakage, unusual noise, or temperature fluctuations. Regular maintenance includes cleaning the valve components, checking seals and diaphragms, and replacing worn parts to prevent failure and extend service life.

If you encounter any issues, consult the product manual for troubleshooting tips, such as checking coil continuity, verifying power supply, and inspecting for blockages. Our support team is also available to provide guidance on selecting the right valve model for your application and optimizing system integration.

We recommend using genuine Burkert replacement parts to maintain product integrity and performance. Detailed documentation, including datasheets, wiring diagrams, and installation instructions, can be accessed through our online resources.

Burkert is committed to delivering high-quality solenoid valves backed by comprehensive technical support and service to help you achieve efficient and reliable process control.

Packing and Shipping:

Burkert solenoid valves are carefully packaged to ensure safe transportation and delivery. Each valve is securely placed in a custom-fitted protective casing to prevent damage during shipping. The packaging materials are selected to provide cushioning and support, protecting the product from shocks, vibrations, and environmental factors.

The product packaging includes clear labeling with product details, handling instructions, and safety information to facilitate efficient handling and storage. Burkert solenoid valves are shipped using reliable carriers that provide tracking and timely delivery services.

For international shipments, all necessary customs documentation and compliance certifications are included to ensure smooth transit across borders. Upon receipt, customers are advised to inspect the packaging for any signs of damage and to report any issues promptly to Burkert customer service for assistance.
