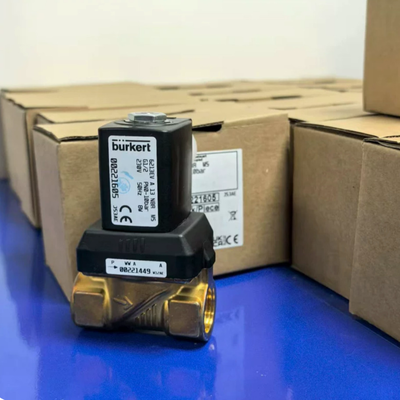

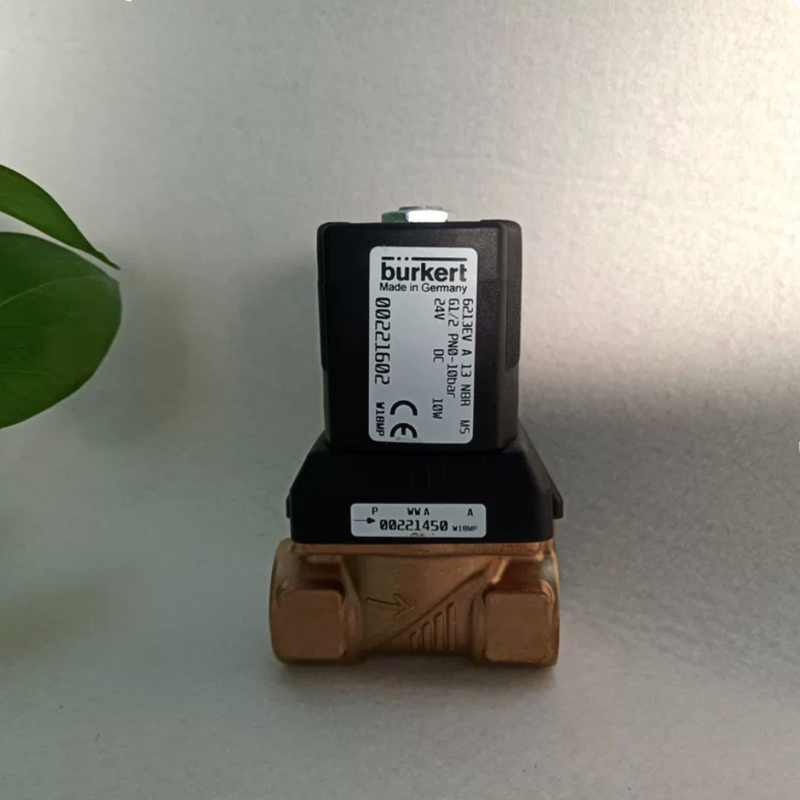

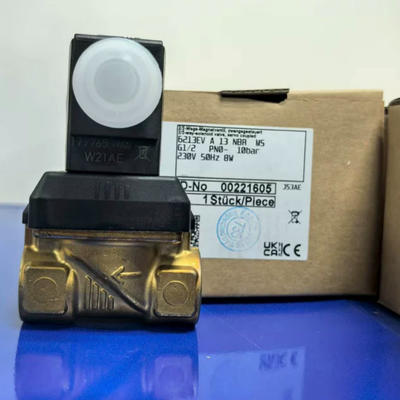

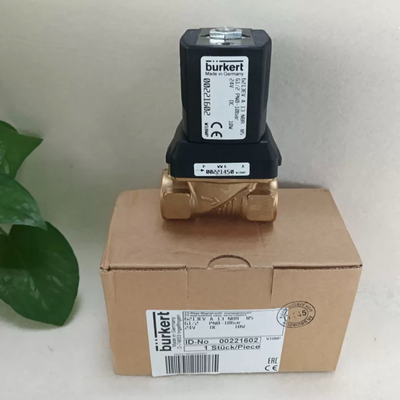

0-10 Bar Pressure Resistant Burkert 00221618 Type 6213 Solenoid Valve, NBR Sealing 13 Orifice G3/4 Thread, Brass Housing DC24V 8W For -10~80°C Pipelines

Product Description:

The Burkert Type 6213 is a high-performance, 2/2-way servo-assisted diaphragm solenoid valve designed and manufactured by the renowned German company Bürkert. This valve features a robust forged brass body as its standard construction, ensuring durability and reliability. Its compact size makes it suitable for applications requiring stable, zero-leakage switching, particularly for neutral liquids, water, and low-pressure gases.

Widely used across various industries, the 6213 valve is a common choice in industrial automation, water treatment plants, and commercial fluid control systems. It is available in sizes ranging from DN10 to DN40 and supports both BSPP and NPT thread connections, offering versatility for different installation requirements.

The valve series offers multiple sealing material options, including NBR, EPDM, and FKM, to accommodate a range of fluid types and operating environments. Additionally, it supports global standard voltages, making it suitable for international use. Its energy-efficient encapsulated coils and IP65-rated waterproof protection help deliver reliable, low-noise fluid control, even in continuous-duty applications.

For more specialized needs, an optional zero-differential pressure version of the Type 6213 is available. This variant is ideal for vacuum and gas applications, expanding the valve’s usability to cover a broader spectrum of working conditions and ensuring optimal performance in diverse operational scenarios.

Features:

The valve body is crafted from standard brass using a hot-forged one-piece forming process that eliminates sand holes and trachoma defects. This manufacturing method ensures exceptional resistance to oxidation, scaling, and mild chemical corrosion. For applications involving long-term water exposure, a dezincification-resistant brass variant is available. This version fully complies with EU standards for drinking-water contact, making it safe for use with pure water, beverages, and food-grade fluids.

With excellent thermal conductivity, the valve body effectively prevents coil overheating even under a 100% continuous duty cycle. Its robust structural ductility allows it to withstand frequent pressure fluctuations without cracking. Compared to plastic or thin cast iron valves, this forged brass body offers significantly greater durability and reliability.

The valve features multiple seal materials tailored to suit various media environments. The NBR seal is ideal for tap water, air, and common hydraulic oils within a temperature range of -10°C to +80°C. The EPDM seal is suitable for pure water, hot water, and steam-free neutral liquids, operating effectively between -30°C and +100°C; it is also approved for food and drinking water applications.

For handling high-temperature oils, weak acids and alkalis, as well as corrosive neutral media, the FKM seal is employed, functioning within a temperature range of 0°C to +90°C. All sealing structures guarantee bubble-tight, zero leakage performance across the full pressure spectrum, ensuring no dripping even during prolonged continuous switching operations.

Technical Parameters:

Applications:

Support and Services:

Burkert solenoid valves are designed for high performance and reliability in various industrial applications. To ensure optimal operation and longevity of your Burkert solenoid valve, it is important to follow the recommended installation, maintenance, and troubleshooting guidelines.

Installation:

Before installation, verify that the valve specifications match your system requirements, including voltage, pressure, temperature, and media compatibility. Ensure the valve is installed in the correct orientation and that all connections are secure to prevent leaks. Use proper tools and avoid excessive force when tightening fittings.

Maintenance:

Regular maintenance of Burkert solenoid valves includes periodic inspection for wear, contamination, and damage. Clean or replace filters and seals as necessary. Avoid using solvents or abrasive materials that may damage valve components. Lubrication is generally not required but consult the specific product manual for details.

Troubleshooting:

If the valve fails to operate correctly, first check the electrical supply to ensure proper voltage and current. Inspect wiring and connections for damage or corrosion. Verify that the valve coil is not overheated or burnt out. Check for mechanical blockages or debris in the valve body. Refer to the product manual for detailed troubleshooting steps and corrective actions.

For detailed technical information, including specifications, wiring diagrams, and replacement parts, please refer to the official Burkert product documentation. Proper handling and adherence to guidelines will help maintain the performance and durability of your Burkert solenoid valve.

Packing and Shipping:

Burkert solenoid valves are packaged with utmost care to ensure product integrity during transit. Each valve is securely placed in protective packaging material to prevent damage from shocks and vibrations. The packaging includes detailed product information and handling instructions to facilitate safe and efficient installation.

For shipping, Burkert solenoid valves are dispatched using reliable carriers that offer tracking and timely delivery services. Depending on the destination, shipping options may include standard, expedited, or freight services to meet customer requirements. All shipments are accompanied by the necessary documentation, including invoices, certificates of conformity, and safety data sheets, ensuring a smooth customs clearance process.
