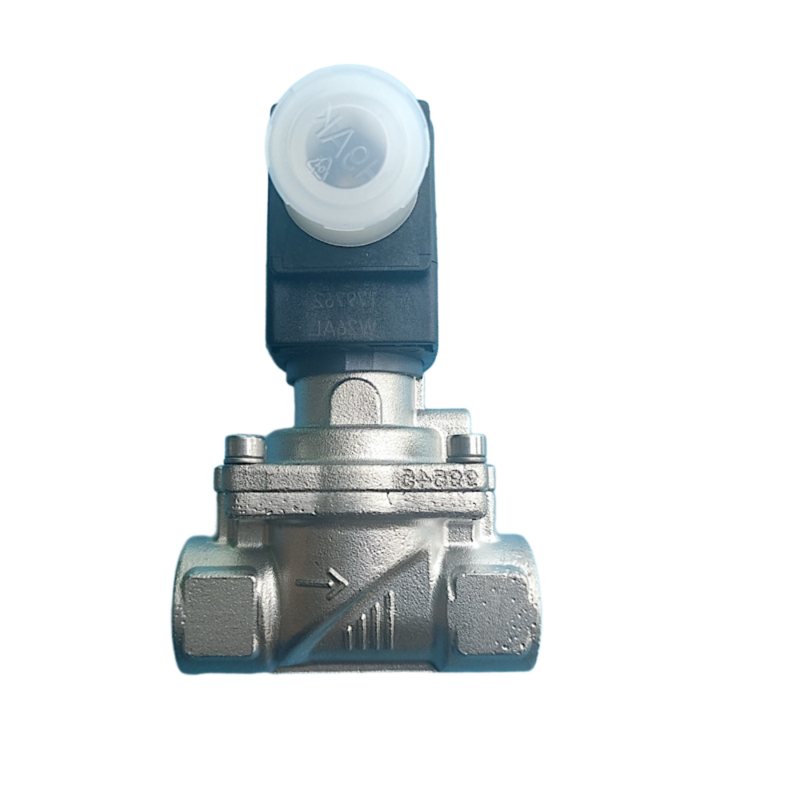

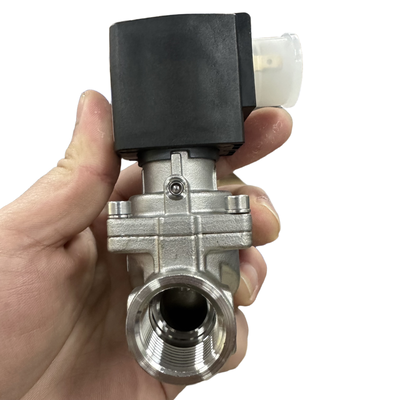

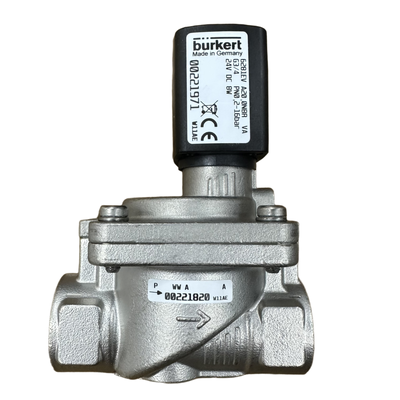

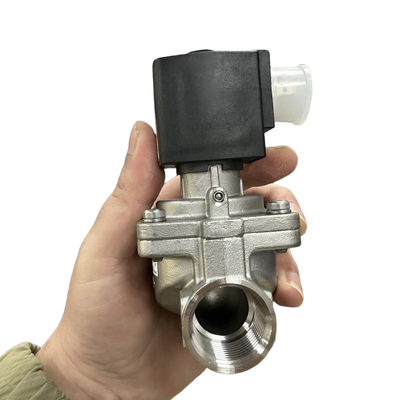

G1 G1 1/4 Female Thread Burkert 6281 Solenoid Valve Module 2/2 NC 25.0 Orifice Size Built‑in Manual Control Stainless Steel Construction FKM Sealing DC24V/AC220V 00323979 00323980 00323982 00323984

Product Description:

The Burkert 6281 series belongs to the S.EV range and is a servo-assisted 2/2-way diaphragm solenoid valve. It is engineered to provide reliable shut-off, dosing, and filling functions for neutral and mildly aggressive gaseous and liquid media. For proper operation, the valve requires a minimum differential pressure to be maintained at all times.

Constructed with a stainless steel body combined with an FKM (fluororubber) seal, this valve offers outstanding corrosion resistance along with high-temperature durability, making it ideal for demanding industrial environments. These materials ensure longevity and dependable performance even under challenging conditions.

One notable feature is the manual override, which enhances serviceability by enabling simple maintenance, commissioning, and emergency operation in case of power failure. To activate manual mode, the hand lever located beneath the solenoid must be rotated to a vertical position.

Additionally, the valve is designed with a vibration-resistant, centrally screwed coil system and incorporates damping for quiet closing action. The solenoid coils are encapsulated in chemically resistant epoxy to ensure durability. For energy efficiency, the coils are available with electronic power reduction technology known as Kick and Drop double coil.

When paired with a suitable cable plug conforming to DIN EN 175301-803 Form A standards, the valve achieves an IP65 protection rating. If equipped with a stainless steel housing, it meets the NEMA 4X standard. The valve can be installed in any position, although it is recommended to position the actuator upright for optimal performance.

Features:

This feature allows for straightforward testing, maintenance, and emergency operation in the event of a power outage. It ensures that the device can be manually controlled without difficulty, enhancing reliability and ease of service.

Constructed with stainless steel, the body offers exceptional resistance to corrosion, making it ideal for use with aggressive media and in harsh environmental conditions. This durable material extends the lifespan and maintains the integrity of the product.

The seals made from FKM fluororubber excel in resisting hot air, chemical solutions, oils, and solvents. They operate effectively within a temperature range of 0°C to +90°C, and can handle up to +120°C when paired with an epoxy coil, ensuring dependable sealing in varied applications.

Featuring a servo-assisted diaphragm, the design guarantees reliable performance for shut-off, dosing, and filling procedures involving both neutral and aggressive media. This mechanism aids in precise control and enhances operational efficiency.

The normally closed setup provides fail-safe operation, which is crucial for maintaining control in process management. This configuration ensures that the valve closes in the absence of power, enhancing safety.

To accommodate various flow requirements, the product offers port sizes ranging from G1/4 to G2, and orifice diameters from 10 mm to 40 mm. This versatility allows it to be adapted for a broad spectrum of applications.

The valve is capable of operating within a pressure range from as low as 0.2 bar up to 16 bar, providing flexibility for different industrial environments and process demands.

Equipped with 8-watt coils, the device supports a 100% continuous duty cycle. This means it can operate continuously over long periods without overheating or performance degradation.

Available in DC 24V, AC 24V, and AC 220V (with a tolerance of ±10%), the product is compatible with a global range of electrical systems, making it suitable for diverse installation requirements.

The valve is designed to be dust-tight and resistant to water jets when paired with an appropriate cable plug, ensuring reliable operation in dusty or wet conditions.

Its centrally screwed coil system provides secure and stable operation even in demanding industrial settings where vibrations are common, enhancing durability and safety.

The valve incorporates a damped mechanism that reduces noise during closure, making it suitable for sensitive environments where low sound levels are important.

This innovative double coil technology minimizes power consumption during operation, promoting energy efficiency without compromising performance.

For hazardous area applications, there are versions certified according to ATEX and IECEx standards, ensuring safety and compliance in explosive environments.

The product can be installed in any orientation, though it is recommended to position the actuator upright. This flexibility simplifies integration into various system layouts.

Technical Parameters:

Applications:

Our systems provide reliable control when handling aggressive chemicals, solvents, and corrosive media. Designed to withstand harsh environments, they ensure safe and efficient processing.

We offer precise control solutions for hot air and various gaseous media, capable of operating at temperatures up to +120°C. This makes them suitable for a wide range of industrial heating applications.

Our equipment is well-suited for managing oils, solvents, and other fluids based on hydrocarbons. This ensures reliable performance in industries where such fluids are essential.

Designed for general-purpose fluid control, our solutions support manufacturing and process automation, enhancing overall efficiency and productivity.

We provide effective control of water in treatment plants and industrial water systems, ensuring optimal operation and compliance with environmental standards.

Our control systems manage cooling water and chilled water circuits smoothly. Their quiet operation is particularly beneficial for HVAC systems, providing comfortable environments without noise disruption.

Suitable for chemical, pharmaceutical, and various other process control applications, our products offer precision and reliability to meet demanding industry requirements.

For environments with explosive hazards, we offer ATEX certified versions that comply with strict safety standards, ensuring secure operation under challenging conditions.

Customization:

Introducing the BURKERT 00323894 SS 2/2 Way Solenoid Valve, a high-quality Brass Body Solenoid Valve manufactured in China. This Solenoid Valve is CE certified, ensuring reliable performance and safety. We offer customization services with a minimum order quantity of just 1 piece, making it ideal for both small and large-scale applications.

The BURKERT 2/2 Way Solenoid Valve comes with various port sizes including G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, and G2, and orifice sizes ranging from 0 mm to 40 mm, allowing you to select the perfect configuration for your needs. It features a manual override and supports a pressure range from 0.2 to 16 bar, providing versatile control options.

We provide flexible packaging options such as carton packaging or customized packaging as per client requirements. Pricing is negotiable to suit your budget, and we ensure prompt delivery within 1-7 work days after payment confirmation. Payment terms include T/T, Western Union, and Paypal for your convenience.

With a supply ability of 5000 pieces per month, BURKERT guarantees consistent availability of this Brass Body Solenoid Valve. Customize your order today and experience the superior quality and performance of a BURKERT Solenoid Valve tailored to your specifications.

Support and Services:

Burkert Solenoid Valve Product Technical Support and Services

Burkert provides comprehensive technical support and services to ensure optimal performance and reliability of our solenoid valve products. Our expert team is available to assist with product selection, installation guidance, troubleshooting, maintenance advice, and customization options tailored to your specific application needs.

We offer detailed product documentation, including datasheets, wiring diagrams, and installation manuals to facilitate proper setup and operation. Our support extends to helping you understand the technical specifications, operating principles, and compatibility requirements of Burkert solenoid valves.

For maintenance, we provide recommendations on regular inspection intervals, cleaning procedures, and replacement parts to maximize valve lifespan and minimize downtime. In case of technical issues, our troubleshooting guides help identify common problems and solutions quickly.

Additionally, Burkert offers training sessions and seminars to enhance your team’s knowledge and skills in handling solenoid valve technology effectively. Our commitment is to deliver timely, accurate, and professional support to ensure your processes run smoothly and efficiently.
