Product Description:

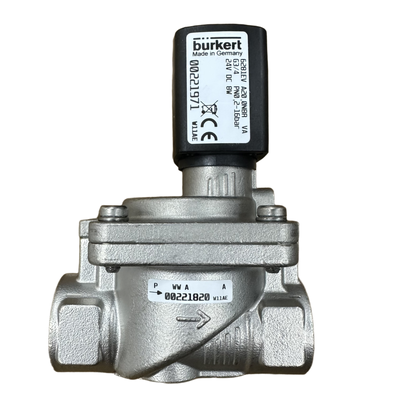

The Burkert 6281 series belongs to the S.EV line and is a servo-assisted 2/2-way diaphragm solenoid valve. It is specifically engineered to provide reliable shut-off, precise dosing, and efficient filling for neutral and mildly aggressive gaseous and liquid media. For proper operation, the valve requires a minimum differential pressure.
Constructed with a robust stainless steel body and equipped with an FKM (fluororubber) seal, this valve offers excellent corrosion resistance along with the ability to perform under high-temperature conditions. These features make it well-suited for demanding industrial environments where durability and reliability are critical.
A convenient manual override is integrated into the design, enhancing serviceability. This feature facilitates straightforward maintenance, commissioning, and emergency operation when power is unavailable. To activate manual control, the operator simply turns the hand lever located beneath the solenoid to a vertical position.
The valve also incorporates a vibration-resistant coil system secured with a central screw and utilizes a damped mechanism to ensure quiet closing. The solenoid coils are moulded using chemically resistant epoxy, contributing to longevity and consistent performance. Additionally, for energy efficiency, all coils can be supplied with electronic power reduction by means of Kick and Drop double coil technology.
When paired with an appropriate cable plug conforming to DIN EN 175301-803 Form A, the valves meet the IP65 protection rating. Moreover, with a stainless steel housing, they comply with the NEMA 4X standard, ensuring reliable protection against environmental factors. Installation flexibility is also a key feature as the valve can be mounted in any orientation, although positioning the actuator upright is recommended for optimal performance.
Features:
The service-friendly manual override feature allows for straightforward testing, maintenance, and emergency operation in case of power failures. This ensures that the system remains operational under critical conditions without requiring complex procedures.
Constructed with a stainless steel body, the device offers outstanding corrosion resistance. This makes it suitable for handling aggressive media and enduring harsh environmental conditions, thereby enhancing its durability and longevity.
Equipped with FKM (fluororubber) seal material, the device demonstrates excellent resistance to hot air, chemical solutions, oils, and solvents. It supports media temperatures ranging from 0°C up to +90°C, and can handle temperatures as high as +120°C when paired with an epoxy coil.
The servo-assisted diaphragm design guarantees dependable operation for tasks such as shut-off, dosing, and filling, whether dealing with neutral or aggressive media. This design enhances the precision and reliability of the process control.
Featuring a normally closed configuration, known as circuit function A (NC), the valve provides fail-safe operation which is essential for maintaining safety and control in automated processes.
With a wide range of port and orifice sizes available—from G1/4 to G2 ports and 10 mm to 40 mm orifices—the device can accommodate various flow requirements, offering flexibility across different applications.
The valve operates efficiently within a broad pressure range of 0.2 bar up to 16 bar, making it adaptable to numerous industrial pressure conditions.
Standard 8W coils enable a 100% continuous duty cycle, ensuring reliable long-term operation without overheating or performance degradation.
It is offered with multiple voltage options, including DC 24V, AC 24V, and AC 220V, all with a ±10% tolerance. This versatility supports global compatibility and easy integration into various electrical systems.
The device comes with IP65 and NEMA 4X protection ratings, guaranteeing it is dust-tight and safeguarded against water jets when used with an appropriate cable plug. This makes it robust for challenging environmental conditions.
Featuring a vibration-proof coil system secured by a central screw, the design ensures stable and secure operation in demanding industrial settings where vibrations are common.
A damped design for quiet closing minimizes noise emissions, which is particularly beneficial for sensitive environments that require low operational noise levels.
An energy-saving option is available utilizing Kick-and-Drop (KD) double coil technology, which reduces power consumption during operation without compromising performance.
For hazardous area applications, explosion-proof variants certified by ATEX and IECEx are available, providing enhanced safety and compliance with strict industry standards.
The flexible installation capability allows the device to be mounted in any orientation, although positioning the actuator upright is recommended to optimize performance.
Technical Parameters:
| Seal and Diaphragm Material |
FKM |
| Circuit Function |
Normally Closed |
| Body Material |
Stainless Steel |
| Orifice Sizes |
0 mm, 13 mm, 20 mm, 25 mm, 40 mm |
| Manual Override |
Yes |
| Media |
Hot Air, Chemical Solutions, Oils, Solvents, Neutral Media |
| Voltage Options |
DC24V, AC220V |
| Port Sizes |
G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2 |
| Valve Type |
2/2-way |
| Pressure Range |
0.2 to 16 Bar |
Applications:
Chemical Processing
Our solutions provide reliable control when dealing with aggressive chemicals, solvents, and corrosive media, ensuring safety and efficiency in chemical processing environments.
Hot Air and Gas Systems
We offer precise control for hot air and various gaseous media, capable of handling temperatures up to +120°C to meet the demands of thermal processes.
Oil and Solvent Handling
Designed to manage oils, solvents, and other hydrocarbon-based fluids, our products ensure smooth and reliable operation in fluid handling applications.
Industrial Automation
Our versatile fluid control solutions are ideal for manufacturing and process automation, supporting general-purpose industrial automation needs.
Water Treatment
Effective water control is critical in treatment facilities and industrial water systems; our technology provides robust performance in these applications.
Cooling and Air Conditioning Systems
We enable accurate control of cooling water and chilled water circuits. Our products operate quietly, making them especially suitable for HVAC systems.
Process Control
Our solutions are applicable in chemical, pharmaceutical, and general process control, supporting a wide range of industry requirements.
Hazardous Areas
For environments with explosive atmospheres, we offer ATEX certified versions, ensuring safety and compliance with industry standards.
Customization:
Introducing the BURKERT 2/2 Way Solenoid Valve, model number 00323894 SS, a high-quality Burkert Type 5281 Valve designed to meet diverse industrial needs. Originating from China and certified with CE standards, this valve guarantees reliable performance and compliance with international quality requirements.
This 2/2 Way Solenoid Valve features a durable FKM seal and diaphragm material, ensuring excellent chemical resistance and long service life. Equipped with a manual override, it offers convenient control for various applications. The valve is available in multiple orifice sizes including 0 mm, 13 mm, 20 mm, 25 mm, and 40 mm, and supports a wide range of port sizes such as G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, and G2, providing flexibility to suit your specific system requirements.
With a minimum order quantity of just 1 piece, BURKERT ensures quick and efficient supply ability of up to 5000 pieces per month. Pricing is negotiable to accommodate your budget, making it an excellent choice for both small and large scale projects. Packaging is done carefully in cartons or as per client requirements to ensure safe delivery.
Delivery time is prompt, ranging from 1 to 7 working days after payment confirmation. We accept multiple payment terms including T/T, Western Union, and Paypal for your convenience. Choose the BURKERT 2/2 Way Solenoid Valve for dependable performance, versatile configurations, and trusted quality in your fluid control solutions.
Support and Services:
Burkert Solenoid Valve products are designed for reliable and efficient operation in a wide range of industrial applications. Our technical support team is dedicated to providing expert assistance for installation, operation, and maintenance to ensure optimal performance and longevity of your solenoid valve.
We offer comprehensive services including application consulting, troubleshooting, and repair support. Our specialists can guide you through system integration and assist in selecting the right valve for your specific requirements.
For maintenance, we recommend regular inspection of valve components and adherence to Burkert’s service guidelines to prevent downtime and extend product life. Replacement parts and upgrade kits are available to enhance functionality and adapt to evolving process needs.
Burkert also provides training sessions and detailed documentation to empower users with in-depth product knowledge and best practices. Our commitment is to deliver timely and effective support, ensuring your Burkert solenoid valve operates seamlessly within your system.
