Product Description:

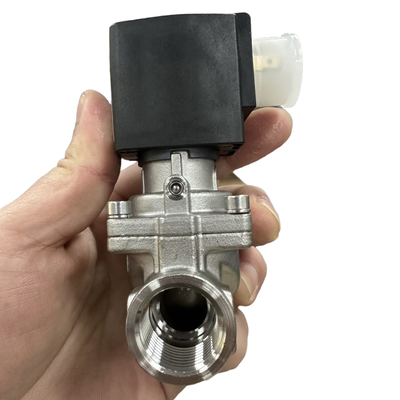

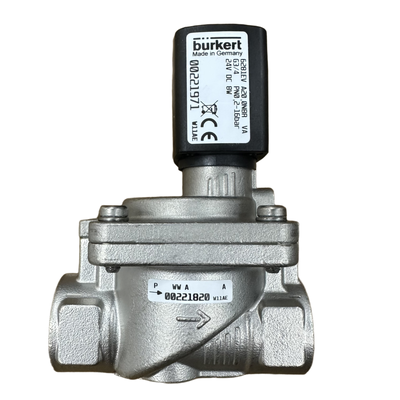

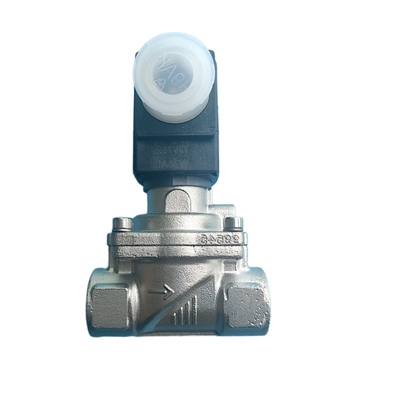

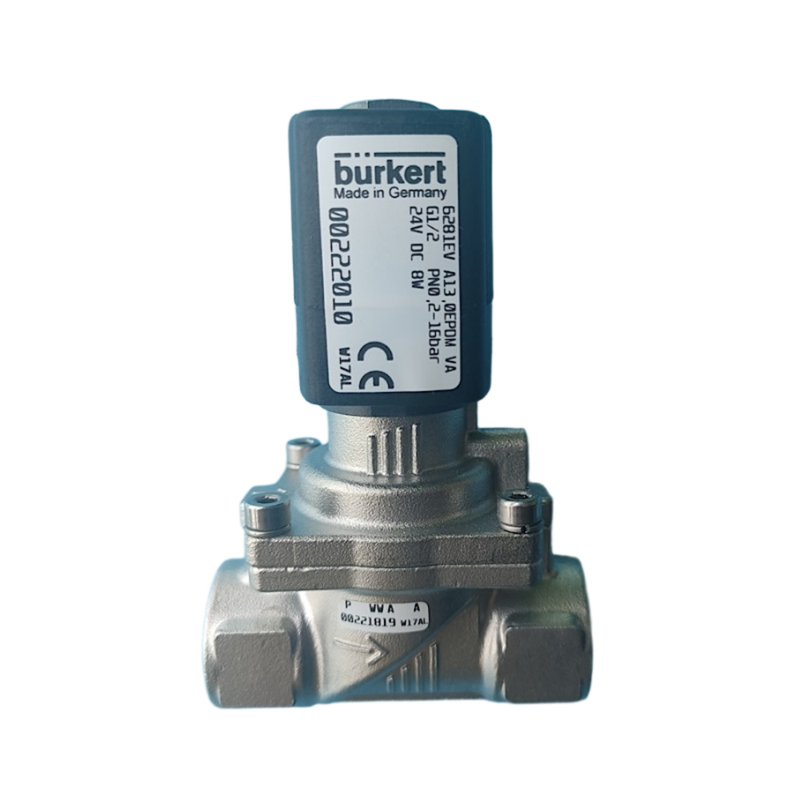

Burkert 6281 Series Solenoid Valve
The Burkert 6281 series belongs to the S.EV family of servo-assisted 2/2-way diaphragm solenoid valves. It is specially engineered to provide dependable shut-off, precise dosing, and efficient filling for neutral and mildly aggressive gaseous and liquid media. The proper operation of this valve depends on maintaining a minimum differential pressure at all times.
Constructed with a robust stainless steel body combined with an FKM (fluororubber) seal, the valve ensures superior corrosion resistance and high-temperature durability. These features make it suitable for demanding industrial environments requiring reliable performance.
A notable feature of the Burkert 6281 valve is its manual override mechanism, which enhances serviceability. This allows for straightforward maintenance, easy commissioning, and emergency operation during power outages. To engage the valve manually, the hand lever located beneath the solenoid must be turned to a vertical orientation.
The design incorporates a vibration-resistant, centrally screwed coil system alongside a damped structure to enable quiet closing. The solenoid coils are encapsulated in chemically resistant epoxy, providing added protection. For energy efficiency, all coils are available with electronic power reduction technology known as Kick and Drop double coil technology.
When combined with an appropriate cable plug that complies with DIN EN 175301-803 Form A standards, the valves meet the IP65 protection rating. Additionally, with a stainless steel housing, they conform to the NEMA 4X standard. Installation flexibility is supported as the valve can be mounted in any position, although it is recommended to position the actuator upright.
Features:
Service-Friendly Manual Override
This feature enables easy testing, maintenance, and emergency operation in the event of a power outage, ensuring uninterrupted functionality.
Durable Stainless Steel Body
The construction of the body with stainless steel offers superior resistance to corrosion, making it suitable for aggressive media and challenging environments.
FKM (Fluororubber) Seal Material
The seals made from FKM fluororubber provide excellent resistance against hot air, chemical solutions, oils, and solvents. It supports media temperatures ranging from 0°C to +90°C, and up to +120°C when paired with an epoxy coil.
Servo-Assisted Diaphragm Design
This innovative diaphragm design guarantees reliable operation for shut-off, dosing, and filling processes involving both neutral and aggressive media.
Normally Closed Configuration
The Circuit function A (NC) setup ensures fail-safe operation, which is essential for various process control applications.
Wide Range of Ports and Orifices
Available port sizes range from G1/4 to G2, with orifice diameters between 10 mm and 40 mm, allowing adaptation to diverse flow requirements.
Broad Pressure Operating Range
The device operates efficiently within a pressure range of 0.2 bar up to 16 bar.
Standard 8W Coils
The coils are designed to handle a 100% continuous duty cycle, providing reliable and consistent long-term performance.
Multiple Voltage Options
For global compatibility, the product offers various voltage options including DC24V, AC24V, and AC220V, each with a tolerance of ±10%.
IP65 / NEMA 4X Protection
This level of protection ensures that the device is dust-tight and can withstand water jets when used with an appropriate cable plug, enhancing durability in harsh conditions.
Vibration-Proof Coil System
The coil system is centrally screwed, providing secure and stable operation in demanding industrial environments subject to vibrations.
Damped Design for Quiet Closing
The design incorporates damping mechanisms that enable low noise operation, which is particularly beneficial in noise-sensitive areas.
Energy-Saving Option
The Kick-and-Drop (KD) double coil technology helps reduce power consumption during operation, promoting energy efficiency.
Explosion-Proof Variants
For hazardous area applications, ATEX and IECEx certified explosion-proof versions are available, ensuring safety and compliance.
Flexible Installation
The device can be installed in any orientation, though it is recommended to position the actuator upright for optimal performance.
Technical Parameters:
| Product Type |
2/2 Way Solenoid Valve |
| Model |
Burkert Type 5281 Valve |
| Valve Type |
2/2-way |
| Voltage Options |
DC24V, AC220V |
| Pressure Range |
0.2 To 16 Bar |
| Media |
Hot Air, Chemical Solutions, Oils, Solvents, Neutral Media |
| Body Material |
Stainless Steel |
| Manual Override |
Yes |
| Circuit Function |
Normally Closed |
| Orifice Sizes |
0 mm, 13 mm, 20 mm, 25 mm, 40 mm |
| Port Sizes |
G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2 |
| Seal and Diaphragm Material |
FKM |
| Description |
Burkert Electromagnetic Valve designed as a 2/2 Way Solenoid Valve for versatile applications. |
Applications:
Chemical Processing
Ensure dependable management of aggressive chemicals, solvents, and corrosive substances within various industrial environments. Our solutions provide reliable control to maintain safety and efficiency when handling challenging chemical media.
Hot Air and Gas Systems
Manage hot air and gaseous substances effectively with systems designed to operate at temperatures up to +120°C. These systems ensure precise control and durability under high-temperature conditions.
Oil and Solvent Handling
Our equipment is well-suited for handling oils, solvents, and other fluids derived from hydrocarbons, providing robust performance and safe operation across various applications.
Industrial Automation
Ideal for general fluid control in manufacturing processes and automation systems, enabling smooth and efficient operation within industrial settings.
Water Treatment
Effectively control water flow in treatment plants and industrial water systems, supporting purification and processing requirements with high reliability.
Cooling and Air Conditioning Systems
Designed to regulate cooling water and chilled water circuits, these systems operate quietly, making them perfect for HVAC applications where noise reduction is important.
Process Control
Suitable for chemical, pharmaceutical, and general process control scenarios, providing precise regulation and consistency throughout various production stages.
Hazardous Areas
Available in ATEX certified versions to ensure safe usage in explosive or hazardous environments, guaranteeing compliance with stringent safety standards.
Customization:
Introducing the BURKERT 00323894 SS Solenoid Valve, a high-quality product originating from CHINA and certified with CE standards. This Burkert Electromagnetic Valve is designed to meet diverse industrial needs with a body made of durable stainless steel and FKM seal and diaphragm materials, ensuring reliable performance with hot air, chemical solutions, oils, solvents, and neutral media.
This Brass Body Solenoid Valve, also known as the Burkert Type 5281 Valve, offers a wide range of port sizes including G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, and G2, accommodating various piping requirements. It operates efficiently within a pressure range of 0.2 to 16 bar, providing versatile application options.
BURKERT provides flexible product customization services with a minimum order quantity of just 1 piece. Pricing is available upon negotiation to best suit your project needs. Packaging is handled with care, using cartons or as per clients' specific requirements to ensure safe delivery.
With a supply ability of 5000 pieces per month, BURKERT guarantees prompt delivery within 1-7 work days after payment confirmation. Payment terms include T/T, Western Union, and Paypal for your convenience.
Choose BURKERT for your solenoid valve needs and benefit from top-tier quality, customization options, and reliable service for the Burkert Type 5281 Valve and other Burkert Electromagnetic Valve products.
Support and Services:
Our Burkert Solenoid Valve product is designed to offer reliable and efficient fluid control for a wide range of industrial applications. To ensure optimal performance and longevity, we provide comprehensive technical support and services tailored to your specific needs.
Our technical support team is available to assist you with product selection, installation guidance, troubleshooting, and maintenance tips. We offer detailed product documentation, including datasheets, wiring diagrams, and operation manuals to help you understand the specifications and operational requirements of your solenoid valve.
For installation, it is important to follow the recommended procedures to avoid common issues such as incorrect wiring, improper mounting, or exposure to incompatible fluids. Our experts can guide you through these steps to ensure your valve operates correctly and safely.
In the event of a malfunction, our support services include diagnostic assistance to identify causes such as coil failure, valve seat wear, or contamination. We provide repair options, including replacement parts and refurbishment services, to minimize downtime.
Regular maintenance is crucial for the reliable operation of your Burkert Solenoid Valve. We recommend periodic inspection and cleaning to prevent build-up and ensure smooth actuation. Our team can supply maintenance kits and advise on best practices tailored to your application environment.
For custom applications or special requirements, we offer engineering support to help integrate Burkert solenoid valves into your systems effectively. This includes customization options and compatibility assessments.
Through our commitment to customer satisfaction and technical excellence, we strive to deliver the highest level of support to maximize the value and performance of your Burkert Solenoid Valve installations.
