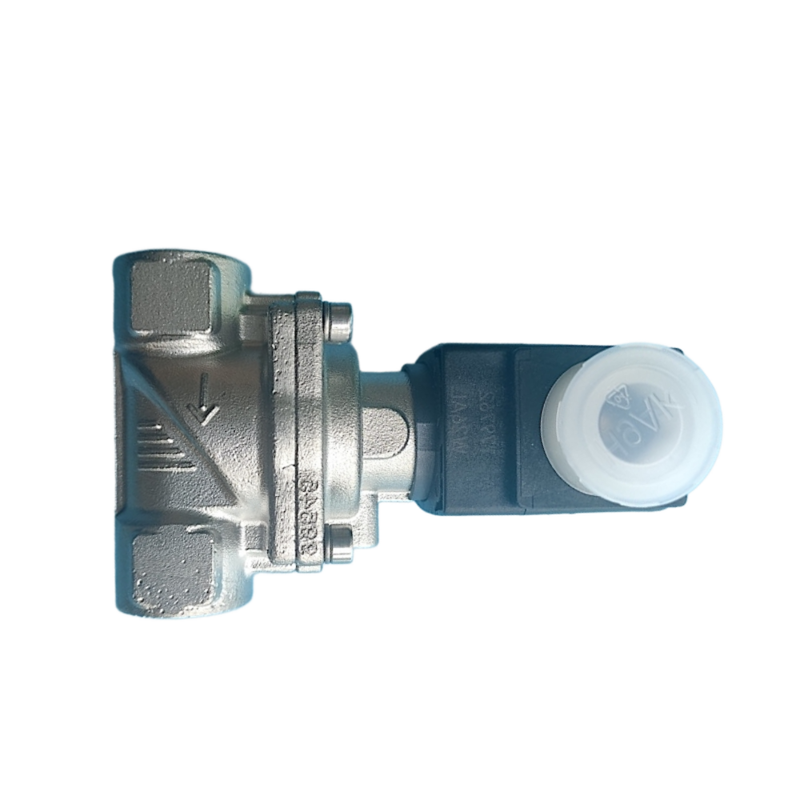

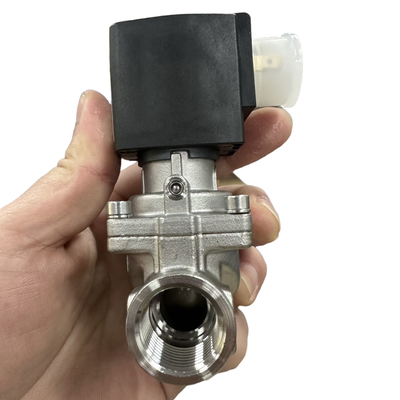

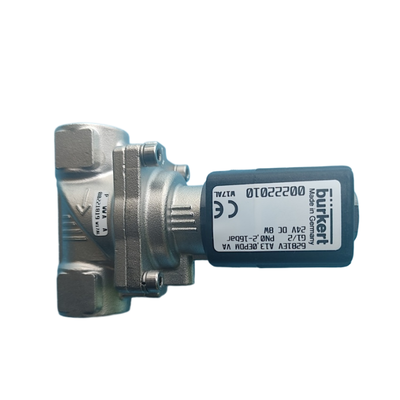

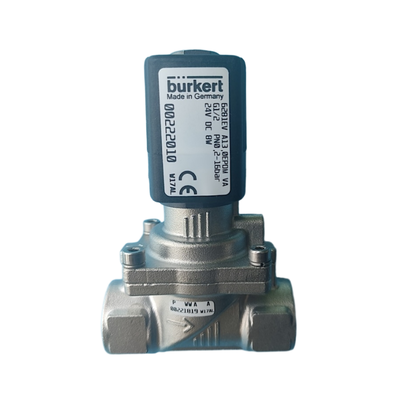

Burkert 6281 Series Manual Override Equipped 2/2 Way NC Servo Diaphragm Solenoid Valve G1/4 G3/8 Port Heat Resistant FKM Seal Stainless Steel Housing 10mm Orifice 00323894 00323968 00323971 00323972

Product Description:

The Burkert 6281 series belongs to the servo-assisted 2/2-way diaphragm solenoid valves within the S.EV series. It is specifically engineered for dependable shut-off, precise dosing, and efficient filling of neutral as well as mildly aggressive gaseous and liquid media. To ensure proper functionality, the valve requires a minimum differential pressure at all times.

Constructed with a robust stainless steel body and equipped with an FKM (fluororubber) seal, this valve delivers outstanding resistance to corrosion and can withstand high-temperature conditions, making it highly suitable for demanding industrial environments.

An important service-friendly attribute of the valve is its manual override feature, which facilitates straightforward maintenance, commissioning, and emergency operation in the event of power failure. To manually operate the valve, simply rotate the hand lever located beneath the solenoid to a vertical position.

The valve incorporates a vibration-resistant, centrally screwed coil system and is designed with damping to ensure quiet closing. Its solenoid coils are encapsulated in chemically resistant epoxy for enhanced durability. For improved energy efficiency, all coils are available with electronic power reduction, utilizing Kick and Drop double coil technology.

When paired with an appropriate cable plug adhering to DIN EN 175301-803 Form A standards, the valves comply with the IP65 protection class. Additionally, a stainless steel housing enables compliance with NEMA 4X standards. Installation flexibility is provided as the valve can be mounted in any position, although it is recommended to install it with the actuator facing upright.

Features:

The service-friendly manual override feature simplifies the process of testing, maintenance, and emergency operations in case of power failure. This ensures that the system remains functional and accessible even during unexpected power interruptions.

Constructed from stainless steel, the body of this product offers outstanding corrosion resistance. This makes it well-suited for handling aggressive media and performing reliably in demanding environmental conditions.

The sealing material, made from FKM (fluororubber), provides exceptional resistance against hot air, various chemical solutions, oils, and solvents. It supports media temperatures ranging from 0°C to +90°C, and can withstand up to +120°C when equipped with an epoxy coil.

Featuring a servo-assisted diaphragm design, the product guarantees dependable performance for shut-off, dosing, and filling applications involving both neutral and aggressive media.

The normally closed configuration, known as circuit function A (NC), delivers fail-safe operation that meets critical process control requirements, enhancing safety and reliability.

With a wide selection of port sizes from G1/4 to G2 and orifice options ranging between 10 mm and 40 mm, the product can be tailored to accommodate a broad variety of flow rates and application demands.

It operates efficiently over a broad pressure spectrum, from as low as 0.2 bar up to 16 bar, granting versatility for different operational settings.

Equipped with standard 8-watt coils, the device supports a 100% continuous duty cycle, ensuring reliable and consistent long-term use without overheating concerns.

To cater to diverse global requirements, multiple voltage options are available, including DC24V, AC24V, and AC220V, all providing a tolerance of ±10% for flexible integration.

The design incorporates IP65 / NEMA 4X protection standards, making the device dust-tight and resistant to water jets when combined with an appropriate cable plug, thus suitable for harsh environments.

Its vibration-proof coil system, secured by a centrally screwed coil mounting, ensures stable and secure operation even under challenging industrial vibrations.

The damped mechanism for quiet closing minimizes noise levels, making it ideal for use in settings where low noise is a priority.

An energy-saving option utilizing Kick-and-Drop (KD) double coil technology helps reduce power consumption during operation, promoting efficiency and cost savings.

For hazardous area applications, explosion-proof variants certified under ATEX and IECEx standards are available, ensuring safe usage in potentially explosive atmospheres.

The product’s flexible installation design allows it to be installed in any orientation, though it is recommended to position the actuator upright for optimal performance.

Technical Parameters:

Applications:

Customization:

Introducing the BURKERT Solenoid Valve, model number 00323894 SS, a high-quality product originating from China and certified with CE standards. This Brass Body Solenoid Valve is designed to meet diverse industrial needs with its robust stainless steel body material and versatile port sizes including G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, and G2.

The Burkert Type 5281 Valve features a normally closed circuit function and includes a manual override for enhanced control and safety. It operates efficiently within a pressure range of 0.2 to 16 bar, making it suitable for various applications requiring reliable fluid control.

We offer flexible product customization services with a minimum order quantity of just 1 piece, allowing you to negotiate pricing based on your specific requirements. Packaging is handled with care, available in cartons or as per clients' requests to ensure safe delivery.

With a supply ability of 5000 pieces per month, BURKERT guarantees timely delivery within 1-7 workdays after payment. Convenient payment terms include T/T, Western Union, and Paypal, facilitating a smooth transaction process.

Choose the BURKERT Brass Body Solenoid Valve for your automation and fluid control systems, and benefit from a reliable, efficient, and customizable solenoid valve solution tailored to your industrial needs.

Support and Services:

Burkert solenoid valves are precision-engineered components designed for reliable control of liquids and gases in various industrial applications. To ensure optimal performance and longevity of your Burkert solenoid valve, it is important to follow the recommended installation, operation, and maintenance guidelines provided in the product manual.

For installation, ensure that the valve is mounted in the correct orientation as specified, and that all connections are secure and leak-free. Use appropriate tools and avoid excessive force to prevent damage to the valve components.

During operation, verify that the electrical specifications such as voltage and current match the requirements of the solenoid coil to avoid coil burnout. It is also important to operate the valve within its specified pressure and temperature ranges.

Routine maintenance includes periodic inspection and cleaning of the valve to remove any debris or contaminants that may affect its performance. Replace any worn or damaged seals and components with genuine Burkert spare parts to maintain valve integrity and functionality.

If you experience any issues with your Burkert solenoid valve, consult the troubleshooting section of the product manual for guidance on common problems and solutions. For technical support, Burkert offers expert assistance to help diagnose and resolve product-related concerns.

For additional services, Burkert provides calibration, repair, and customized solutions tailored to specific application requirements. Utilizing these services can help maximize the efficiency and reliability of your solenoid valve system.
