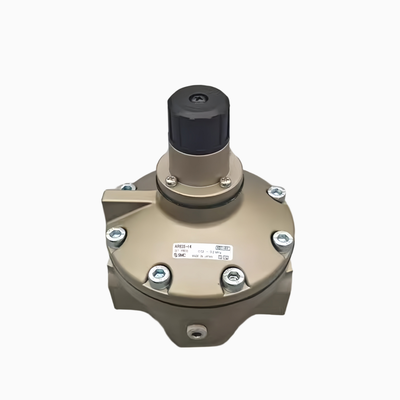

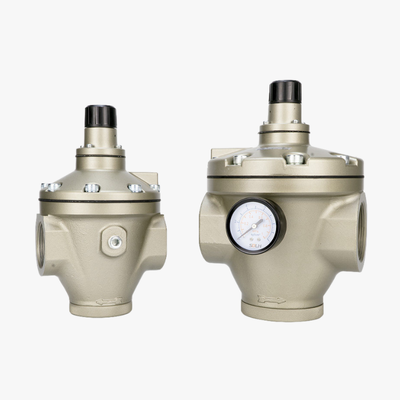

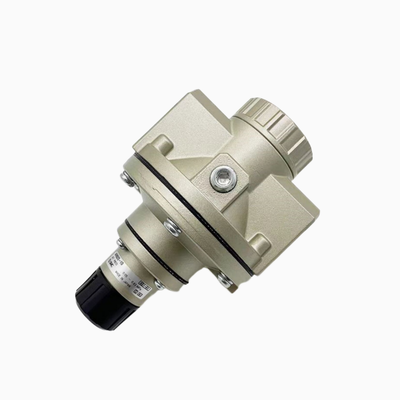

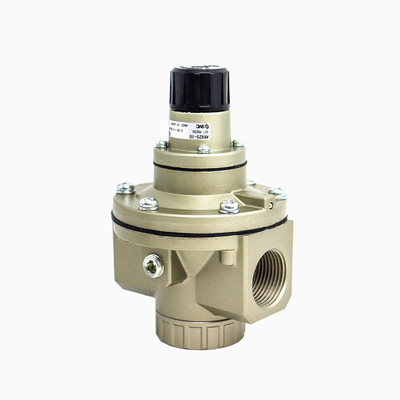

2" Main Pipeline Pilot Regulator SMC AR825-14 AR825 Series Large Flow Reducing Valve

Product Description:

The SMC AR625 to AR935 series is an internal pilot-operated pressure regulator specifically designed for relieving large flow in compressed air main pipelines with large bore sizes. This regulator is engineered to handle demanding conditions, ensuring optimal performance in industrial applications.

It supports a maximum operating pressure of 1.0 MPa and a proof pressure of 1.5 MPa, providing reliable and safe operation. Users can choose between two pressure ranges to suit various requirements: 0.05 to 0.83 MPa and 0.02 to 0.2 MPa.

Available port sizes for this series include 1¼", 1½", and 2", offering flexibility for different pipeline configurations. The SMC body is equipped with a built-in gauge port for easy pressure monitoring. Additionally, pressure gauges and mounting brackets are available as optional accessories to enhance usability.

The operating temperature range spans from -5℃ to 60℃, making it suitable for various environmental conditions. Its relief structure is designed to automatically release excess downstream pressure, maintaining a stable air supply even under high flow scenarios.

Features:

The internal pilot relieving structure ensures a high flow output while maintaining precise regulation and stable pressure even when there are fluctuations in flow. This design contributes to consistent performance under varying operational conditions.

Featuring large port sizes, the device is ideal for factory main air lines, providing ample capacity to support heavy-duty pneumatic equipment efficiently. This allows for reliable operation in demanding industrial environments.

Constructed from aluminum alloy, the body offers excellent vibration resistance and durability, making it suitable for long periods of continuous operation without compromising its structural integrity.

The relieving mechanism is designed to automatically release excess pressure, enhancing the overall safety of the pneumatic system by preventing potential overpressure situations.

Technical Parameters:

Applications:

Pressure stabilization plays a crucial role in maintaining the efficiency of factory central compressed air main pipelines. This involves the regulation and stabilization of pressure within the air compressor station as well as the primary air lines that run through various workshops.

Various industries rely on precise pneumatic systems to ensure smooth operation of their equipment. This includes construction machinery, mining pneumatic systems, rubber and plastic machinery, and the pneumatic circuits used in paper-making production lines. Each of these applications demands reliable pressure control to function optimally.

In addition, pneumatic process control is vital within the chemical and pharmaceutical industries, particularly in maintaining a clean compressed air loop. Ensuring stable pressure and clean air supply helps uphold the stringent requirements necessary for safe and effective processing in these sensitive fields.
