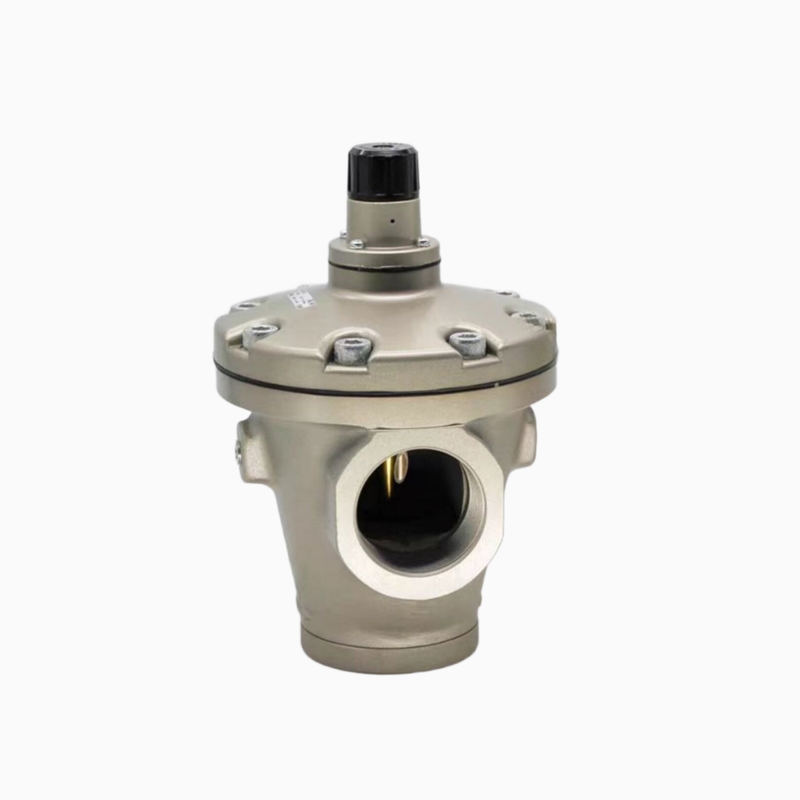

Air Stabilizing Valve for Factory Air Compressor Main Line AR825 Series SMC AR825-12, 1.5" Large Flow Pilot Relieving Pressure Regulator

Product Description:

The SMC AR625 to AR935 series is an internally pilot-operated large flow pressure regulator specifically designed for main pipelines with large-bore compressed air. It ensures efficient pressure regulation in systems where high air volume is required.

This pressure regulator operates at a maximum pressure of 1.0 MPa and has a proof pressure rating of 1.5 MPa. Users can choose between two available pressure ranges: 0.05 to 0.83 MPa and 0.02 to 0.2 MPa, depending on their application needs.

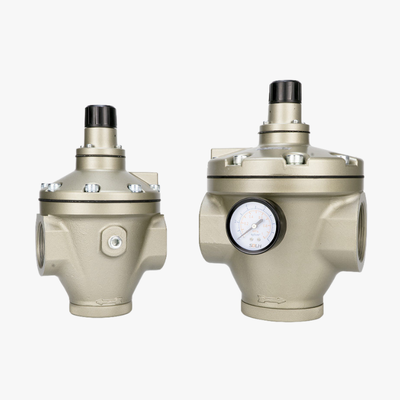

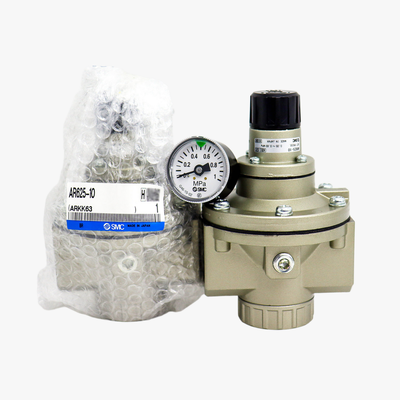

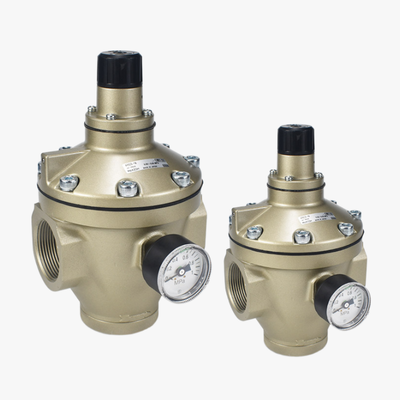

Available port sizes for this series include 1¼", 1½", and 2", accommodating various pipeline dimensions. The SMC body is designed with a built-in gauge port, while the pressure gauge and mounting bracket are offered as optional accessories for enhanced monitoring and installation flexibility.

Operating within a temperature range from -5 to 60 degrees Celsius, the relief structure of the AR625 to AR935 series automatically releases excess downstream pressure. This feature helps maintain a stable air supply even under conditions of high flow demand.

Features:

The internal pilot relieving structure ensures a high flow output, providing precise regulation and maintaining stable pressure even when flow fluctuates.

Featuring large port sizes, this component is ideal for main factory air lines, effectively supplying heavy-duty pneumatic equipment with reliable air flow.

Constructed from aluminum alloy, the body offers resistance to vibration and exceptional durability, making it suitable for long continuous operation in demanding environments.

Its relieving design allows automatic release of overpressure, enhancing overall system safety and preventing potential damage.

Technical Parameters:

Applications:

Pressure stabilization plays a crucial role in the management of central compressed air main pipelines within factories. This involves regulating and maintaining consistent pressure levels in the air compressor stations as well as the main air lines that service various workshops. Effective pressure reduction and stabilization ensure the smooth operation of pneumatic equipment and prevent system malfunctions.

Pneumatic systems are widely applied across different industries, including construction machinery, mining, and rubber and plastic manufacturing. These systems are integral to pneumatic circuits used in paper-making production lines, where reliable and stable air pressure is essential for operational efficiency and product quality.

Moreover, pneumatic process control is vital in the chemical and pharmaceutical sectors. These industries require clean compressed air loops to maintain the purity and safety of their processes. Implementing precise pressure control within these systems supports optimal performance and adherence to stringent industry standards.

Support and Services:

SMC provides comprehensive technical support and services for its Solenoid Valves to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with product selection, installation guidance, troubleshooting, and maintenance practices. We offer detailed product documentation, including datasheets, manuals, and application guides to help users understand the specifications and operational parameters of each solenoid valve model.

In addition to technical support, SMC offers customized solutions and engineering assistance to tailor solenoid valve configurations to specific application requirements. We also provide training sessions and seminars to enhance user knowledge and skills in pneumatic control systems.

For any technical inquiries or assistance, customers can rely on SMC’s dedicated support network to receive timely and accurate information. Our commitment is to deliver high-quality service that maximizes the reliability and efficiency of SMC Solenoid Valves in your applications.

Packing and Shipping:

All SMC Solenoid Valves are carefully packaged to ensure protection against damage during transit. Each valve is individually sealed in anti-static, dust-proof packaging to maintain product integrity and prevent contamination.

The packaging materials are selected to provide cushioning and support, minimizing the risk of impact or vibration damage. Outer boxes are clearly labeled with product information, handling instructions, and shipping details to facilitate efficient processing and delivery.

For shipping, we use reliable carriers with tracking services to ensure timely and secure delivery. Special handling options are available upon request for large orders or sensitive shipments. Our logistics team monitors all shipments to guarantee that SMC Solenoid Valves arrive in optimal condition, ready for immediate use.
