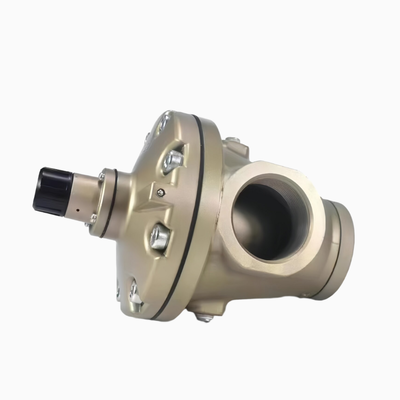

1" Pilot Relieving Low Pressure Reducing Valve SMC AR635-10G AR635 Series Air Regulator with Gauge

Product Description:

The SMC AR625～935 series is a large flow pressure regulator operated by an internal pilot mechanism. It is specifically designed for large-bore compressed air main pipelines, ensuring efficient and stable pressure control in demanding applications.

This regulator can handle a maximum operating pressure of up to 1.0 MPa, with a proof pressure rating of 1.5 MPa for enhanced safety and durability. Users can select between two pressure ranges depending on their requirements: 0.05 to 0.83 MPa or 0.02 to 0.2 MPa.

Available port sizes include 1¼", 1½", and 2", accommodating various pipeline configurations. The SMC body features a built-in gauge port, making it convenient to monitor pressure levels. Additionally, both the pressure gauge and a mounting bracket are offered as optional accessories.

Designed to operate effectively within a temperature range of -5 to 60 degrees Celsius, the regulator incorporates a relief structure that automatically vents any excess downstream pressure. This feature ensures a stable air supply even during conditions of high flow.

Features:

The internal pilot relieving structure ensures a large flow output while maintaining high regulating accuracy. It also provides stable pressure even when there are fluctuations in the flow, guaranteeing consistent performance.

Equipped with large port sizes, this device is ideal for factory main air lines, capable of supplying heavy-duty pneumatic equipment with ease and efficiency.

Constructed from an aluminum alloy body, it offers excellent resistance to vibration and is highly durable, making it suitable for long periods of continuous operation without compromising reliability.

The relieving design allows the system to automatically release any overpressure, significantly enhancing overall safety and protecting the equipment from potential damage.

Technical Parameters:

Applications:

Pressure stabilization in factory central compressed air main pipelines is crucial for maintaining efficient operation. This involves controlling the pressure at both the air compressor station and the main air distribution lines within the workshop. By reducing and stabilizing the pressure, the system ensures consistent performance and protects downstream equipment from pressure fluctuations.

Various industries rely on pneumatic systems, including construction machinery, mining operations, rubber and plastic manufacturing, as well as paper-making lines. Each of these applications utilizes pneumatic circuits that require precise pressure management to function effectively and safely.

In addition, pneumatic process control plays an essential role in chemical and pharmaceutical industries. These sectors often require clean compressed air loops to maintain product quality and meet stringent safety standards. Proper pressure stabilization in these processes helps achieve accurate control and improves overall production reliability.

Support and Services:

SMC provides comprehensive technical support and services for Solenoid Valves to ensure optimal performance and customer satisfaction. Our technical support team offers expert advice on product selection, installation, and troubleshooting to help you achieve the best results in your applications.

We offer detailed product documentation, including datasheets, manuals, and CAD drawings, to assist you in design and maintenance. Our support extends to providing guidance on electrical connections, operating conditions, and maintenance procedures to maximize valve longevity and reliability.

SMC also provides customized solutions and modifications to meet specific application requirements. Our experienced engineers work closely with customers to develop tailored solenoid valve configurations, enhancing system efficiency and functionality.

For ongoing service, SMC offers maintenance and repair solutions to minimize downtime and extend the service life of your solenoid valves. We recommend regular inspection and preventive maintenance to ensure continuous and trouble-free operation.

By choosing SMC Solenoid Valves, you benefit from our global network of technical support and service centers, ensuring prompt and professional assistance whenever you need it.

Packing and Shipping:

All SMC Solenoid Valves are carefully packaged to ensure maximum protection during transit. Each valve is individually boxed with protective materials to prevent damage from shocks, vibrations, and moisture. The packaging is clearly labeled with product specifications and handling instructions to facilitate easy identification and safe handling.

For shipping, SMC Solenoid Valves are securely packed in sturdy cartons, suitable for both domestic and international transportation. We use reliable courier services and provide tracking information to ensure timely delivery. Special care is taken to comply with all regulatory requirements for hazardous materials when applicable.

Bulk orders are palletized and shrink-wrapped to maintain stability and protect against environmental factors. We also offer customized packaging solutions upon request to meet specific customer needs.
