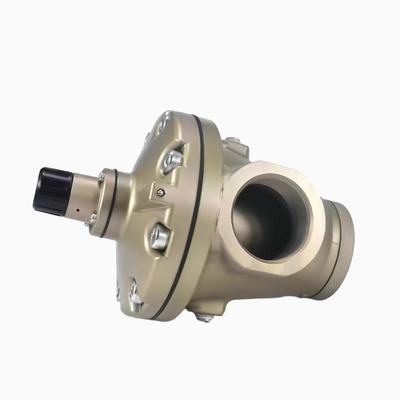

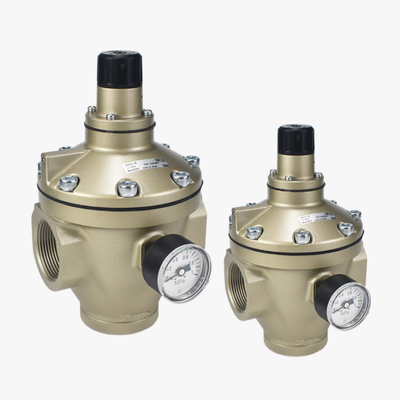

Large Flow Low Pressure Reducing Valve With Pressure Gauge SMC AR635-06G, AR635 Series 3/4" 0.02~0.2MPa Pneumatic Pilot Regulator

Product Description:

The SMC AR625～935 series is a pressure regulator designed for use in large-bore compressed air main pipelines. It features an internal pilot operation mechanism that allows for relieving large flow pressures efficiently. This makes it suitable for applications requiring stable pressure regulation in demanding conditions.

This series supports a maximum operating pressure of 1.0 MPa and has a proof pressure rating of 1.5 MPa, ensuring reliable performance and safety. Users can choose between two pressure ranges depending on their specific needs: 0.05 to 0.83 MPa or 0.02 to 0.2 MPa, allowing for flexibility in various industrial settings.

The regulator comes with multiple port size options, including 1¼", 1½", and 2", to fit different pipeline configurations. The body of the SMC regulator is equipped with a built-in gauge port, while a pressure gauge and mounting bracket are available as optional accessories to suit installation preferences.

Designed to operate within a temperature range from -5 to 60 degrees Celsius, the SMC AR625～935 series ensures consistent functionality even in fluctuating environmental conditions. Its relief structure is engineered to automatically release excess downstream pressure, maintaining a stable air supply under high flow scenarios.

Features:

The internal pilot relieving structure ensures a large flow output, providing high regulating accuracy and maintaining stable pressure even when there are fluctuations in the flow.

This product features large port sizes, making it ideal for factory main air lines and capable of supplying heavy-duty pneumatic equipment efficiently.

Constructed with an aluminum alloy body, it offers excellent resistance to vibration and durability, ensuring reliable performance during long periods of continuous operation.

The relieving design automatically releases overpressure, thereby enhancing the overall safety of the system.

Technical Parameters:

This SMC electro-pneumatic proportional regulator serves as a digital display proportional valve and an analog signal pressure control valve, ensuring precise and reliable control in pneumatic systems.

Applications:

Pressure stabilization is essential for the main compressed air pipeline in factories, particularly in the air compressor stations and the primary workshop air lines. This involves reducing and maintaining consistent pressure levels to ensure smooth and efficient operation of pneumatic equipment.

Various industrial sectors benefit from these systems, including construction machinery, mining pneumatic applications, rubber and plastic machinery, as well as pneumatic circuits used in paper manufacturing lines. Each of these industries relies on precise air pressure control for optimal performance.

Additionally, pneumatic process control plays a vital role in the chemical and pharmaceutical industries. In these fields, maintaining a clean compressed air loop is critical to ensure product quality and compliance with stringent industry standards.
