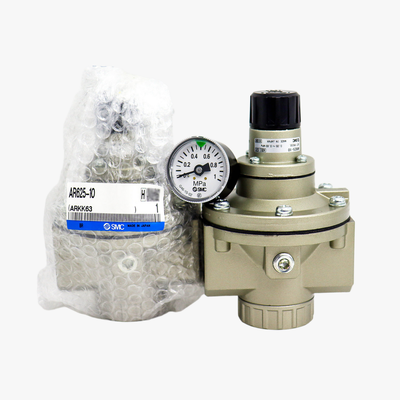

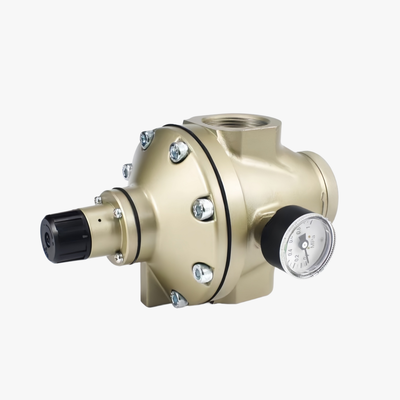

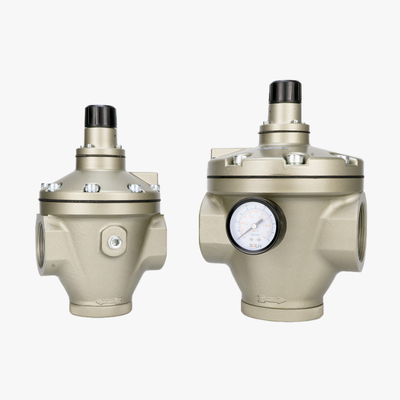

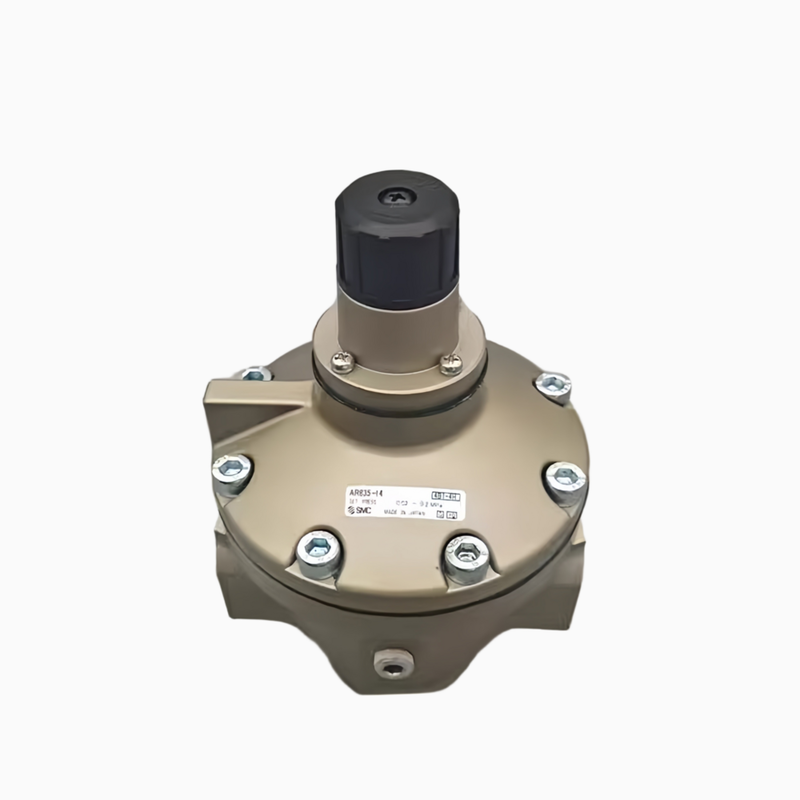

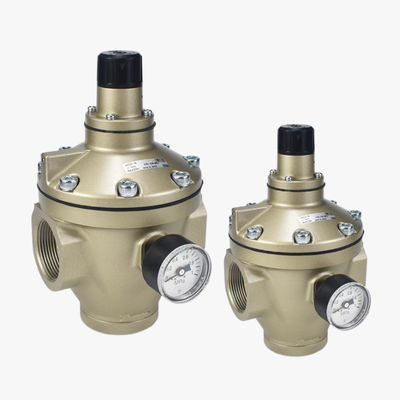

1" Pneumatic Pressure Regulator With Gauge SMC AR625-10G AR625 Series Large Flow Reducing Valve

Product Description:

The SMC AR625 to AR935 series is a pressure regulator specifically designed for large-bore compressed air main pipelines. It features an internal pilot-operated relieving mechanism capable of handling high flow rates efficiently.

This series supports a maximum operating pressure of 1.0 MPa and has a proof pressure rating of 1.5 MPa, ensuring reliable and safe performance. Users can choose between two pressure ranges according to their application requirements: 0.05 to 0.83 MPa and 0.02 to 0.2 MPa.

Port sizes available for the SMC AR625～935 series include 1¼", 1½", and 2", providing flexibility for various system setups. The main body is equipped with a built-in gauge port, while options for a pressure gauge and mounting bracket are also offered to enhance usability.

Designed to operate in temperatures ranging from -5 to 60 degrees Celsius, this regulator includes a relief structure that automatically vents excess downstream pressure. This feature helps maintain a stable air supply, especially under conditions of high airflow.

Features:

The internal pilot relieving structure ensures a high flow output while maintaining precise regulation. It offers stable pressure even when there are fluctuations in the flow, making it highly reliable in various working conditions.

Equipped with large port sizes, this component is ideal for factory main air lines. It is specifically designed to supply heavy-duty pneumatic equipment, ensuring efficient and consistent performance.

Constructed with an aluminum alloy body, the device boasts excellent resistance to vibration. This durable build supports long periods of continuous operation without compromising its integrity.

Additionally, the relieving design automatically releases any overpressure, significantly enhancing the overall safety of the pneumatic system. This feature helps prevent damage and ensures smooth and safe functioning.

Technical Parameters:

Applications:

The pressure stabilization system is designed for the central compressed air main pipeline in factories. It specifically focuses on regulating and maintaining stable pressure levels at the air compressor station as well as the main air lines within workshops. This ensures consistent and reliable air supply throughout the facility.

Various industrial sectors utilize these systems, including construction machinery, mining pneumatic networks, and rubber and plastic equipment. Additionally, pneumatic circuits employed in paper manufacturing lines benefit from precise pressure control to optimize their operation.

In the chemical and pharmaceutical industries, pneumatic process control plays a vital role. Clean compressed air loops are maintained to support sensitive processes, ensuring purity and accuracy in these critical applications.

Support and Services:

SMC provides comprehensive Product Technical Support and Services for its Solenoid Valves to ensure optimal performance and customer satisfaction. Our support includes detailed product documentation, application guidance, and troubleshooting assistance to help you select and maintain the right valve for your specific needs.

Technical support is available to assist with installation procedures, operation parameters, and maintenance schedules, ensuring reliable and efficient system performance. We also offer training resources and expert consultation to help you maximize the benefits of our solenoid valve solutions.

For any product inquiries or technical challenges, SMC’s team of specialists is committed to providing timely and accurate solutions. We strive to support your operations with high-quality products backed by responsive service and technical expertise.

Packing and Shipping:

All SMC Solenoid Valves are carefully packaged to ensure protection during transit. Each valve is individually sealed in anti-static packaging and cushioned with foam inserts to prevent damage from shocks and vibrations. The products are then placed in sturdy, labeled boxes that provide additional protection and ease of identification.

For shipping, we use reliable carriers to deliver SMC Solenoid Valves safely and promptly to your location. Tracking information is provided for all shipments, allowing you to monitor the delivery status. We also offer expedited shipping options for urgent orders, ensuring timely arrival to meet your project deadlines.

Our packaging and shipping processes comply with all relevant safety and transportation regulations, ensuring that your SMC Solenoid Valves arrive in optimal condition and ready for immediate use.
