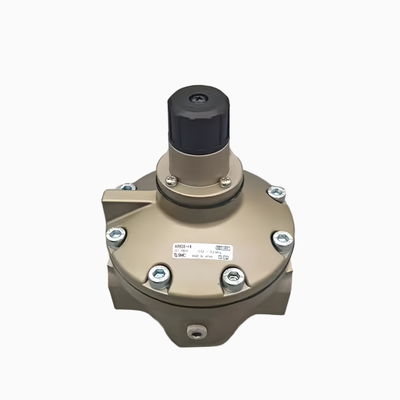

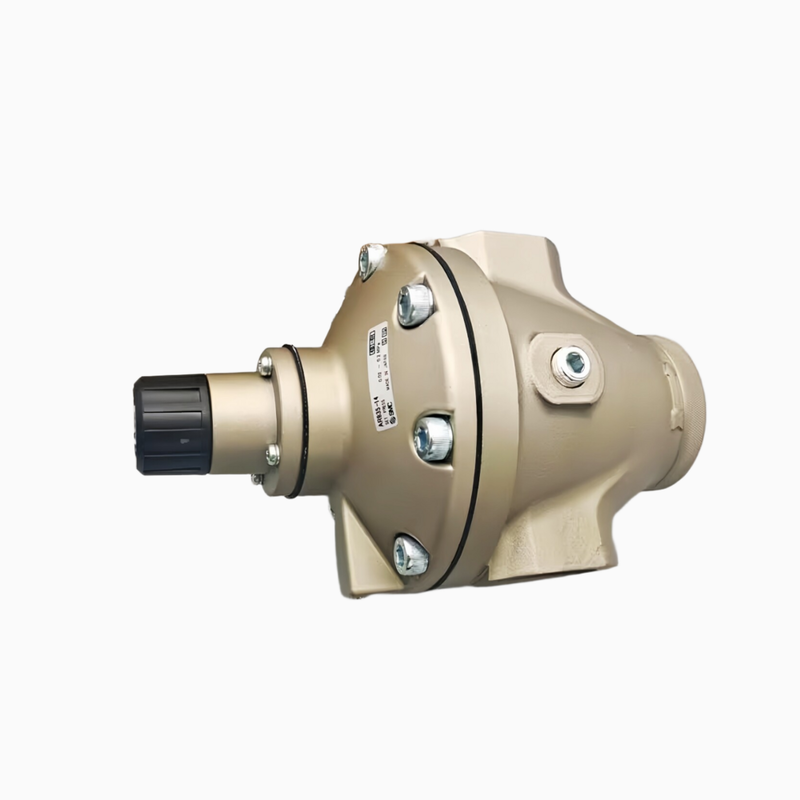

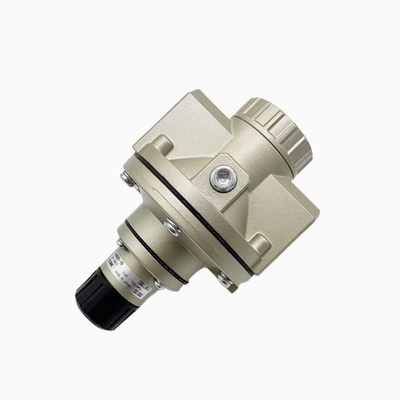

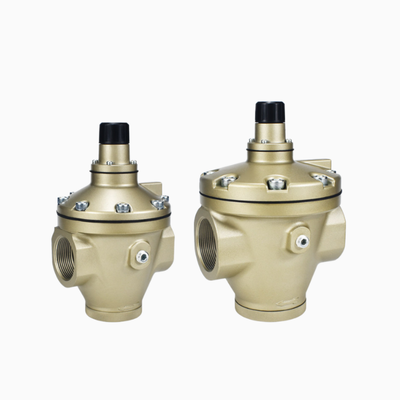

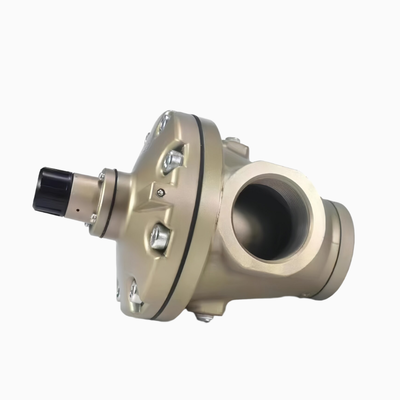

SMC AR625-06 Pilot Operated Air Regulator Rc3/4" 0.05-0.83 MPa Compressed Air Valve

Product Description:

The SMC AR425 to AR935 series represents a line of internally pilot-operated, relieving-type air pressure regulators. These devices are engineered specifically for heavy-duty industrial compressed-air systems that demand both stable outlet pressure and high flow capacity. Unlike direct-acting regulators, this series employs a pilot structure that uses the supply air itself to control the main valve. This design results in enhanced pressure regulation accuracy, smoother flow characteristics, and minimal fluctuations in outlet pressure even when the inlet pressure changes.

This product range includes 12 popular part numbers categorized into four sub-series: AR625, AR635, AR825, and AR835. They feature port sizes varying from Rc 3/4" up to Rc 1-1/2", catering to different installation requirements. Customers can select between two pressure ranges: 0.05 to 0.83 MPa (25 type) and 0.02 to 0.2 MPa (35 low-pressure type). Furthermore, units designated with a "G" indicate the inclusion of a panel pressure gauge for easy monitoring, and an optional mounting bracket B25P is available for secure installation.

The versatility of the SMC AR425 to AR935 series makes them ideal for a wide variety of applications. They are commonly employed in compressor stations, central compressed-air lines, automated production lines, pneumatic manipulators, as well as in OEM machine packages. Their robust performance and reliable operation contribute significantly to maintaining efficiency and stability in demanding industrial environments.

Features:

The regulator features a pilot-operated design, which ensures a much more stable outlet pressure compared to direct-acting regulators. This design is highly resistant to fluctuations in inlet pressure, providing consistent performance even under variable input conditions.

It incorporates an internal relieving mechanism that automatically releases excess outlet pressure into the atmosphere. This function maintains a steady downstream line pressure, enhancing system safety and reliability.

Constructed with a die-cast aluminum body, the regulator is both lightweight and durable. The protected bonnet and chamber design contribute to effective heat dissipation, making it well-suited for demanding factory floor environments.

There are two adjustable pressure ranges available: 0.05 to 0.83 MPa (represented by model 25) and a low-pressure precision type ranging from 0.02 to 0.2 MPa (model 35). These options allow users to select the appropriate setting for their specific application requirements.

Port size options include 3/4", 1", 1-1/4", and 1-1/2". Additionally, thread types such as Rc (PTF), NPT (F), and G are available upon request, providing flexibility to accommodate various piping standards.

An optional pressure gauge from the G46 series (indicated by the G suffix) and a mounting bracket (model B25P) can be supplied for clear and convenient local pressure readings. These accessories also facilitate straightforward retrofitting, improving usability and monitoring.

To prevent accidental adjustments or pressure drift after setup, the adjusting handle includes a locking screw. This feature ensures that once the desired pressure setting is established, it remains securely in place during operation.

Technical Parameters:

Applications:

Air compressor stations and centralized FRL units, which consist of filters, regulators, and lubricators, play a crucial role in maintaining the quality and stability of compressed air in various industrial environments.

Pressure regulation at branch points is essential for the efficient operation of automated lines such as assembly, packaging, and conveying systems, ensuring that each section receives air at the proper pressure for optimal performance.

Pneumatic actuators—including air cylinders, grippers, pneumatic chucks, and vacuum generators—are widely employed to perform precise mechanical movements and handling tasks across numerous applications.

Equipment like machine tools, welding booths, spray painting stations, air blow-off systems, and purging points rely heavily on controlled pneumatic power to achieve accurate and consistent results in manufacturing processes.

Original Equipment Manufacturer (OEM) machines serving industries such as food and beverage, textile, electronics, semiconductor, and packaging incorporate pneumatic technology to enhance automation, efficiency, and product quality.

Secondary pressure reduction and precision control are vital on high-flow centralized air mains, allowing for fine-tuned adjustments that meet the specific requirements of downstream equipment and processes.
