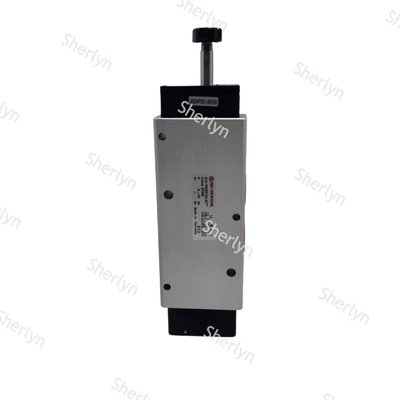

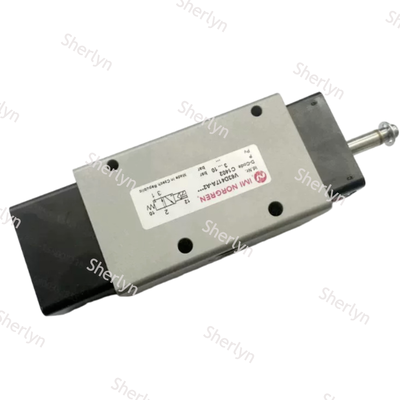

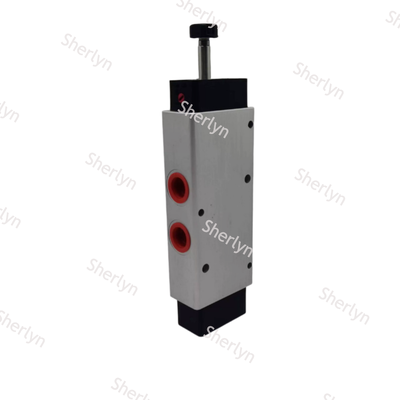

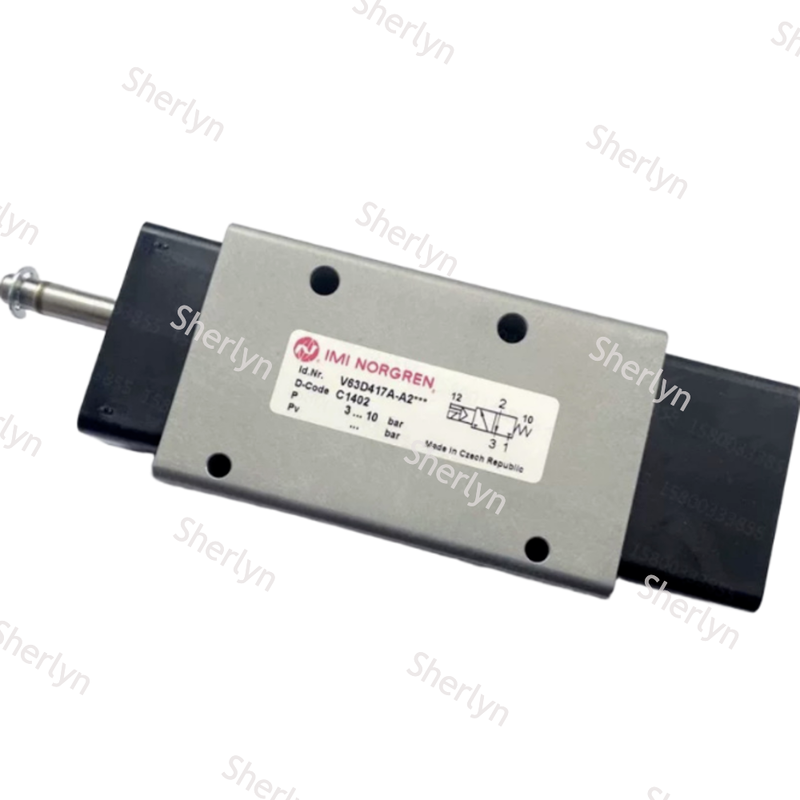

V63D517A-A218J 5/2 Way Solenoid Valve, Norgren V63 Series Pilot Actuated Single Solenoid Valve

Product Description:

The NORGREN V63 series 5/2 single solenoid pilot operated solenoid valve (spring return) is a part of the XF inline pilot directional control valve family. This valve features a spring return mechanism, ensuring that the main spool returns to its original position automatically when the power is switched off.

Operation of the valve is controlled by a pilot air signal which shifts the main spool. The valve is equipped with a G1/2 port and offers a high flow capacity, making it highly efficient for various applications. Additionally, it supports both internal and external pilot air supplies, providing versatility in installation and usage.

Constructed with a die-cast aluminum body and NBR seals as standard components, the valve is well-suited for use with filtered, lubricated, or non-lubricated compressed air. Its robust design ensures durability and reliability in demanding industrial environments.

Furthermore, the valve can be mounted flexibly thanks to its modular manifold base system. This feature allows easy integration into different setups. The NORGREN V63 series valve is widely applied in industrial automation, primarily to control double-acting cylinders efficiently.

Features:

This valve features a single solenoid design with a spring return mechanism and pilot actuation. It operates with a low power coil, consuming only 2 watts, which ensures minimal heat generation. Additionally, it is designed to be compatible with direct control from a PLC, enhancing its integration capabilities in automated systems.

The body of the valve is made from die-cast aluminium, providing excellent corrosion resistance and durability. It incorporates a proven, reliable seal system that requires no maintenance, contributing to a long service life and consistent performance.

This product uses a standard G thread, making it compatible with common pneumatic piping systems. Furthermore, it supports modular manifold bases, allowing for multi-valve integrated installations that simplify system design and improve efficiency.

Technical Parameters:

This Norgren solenoid valve is designed for reliable operation in various industrial applications. The solenoid valve features a 5/2 valve operation and supports a temperature range of -10 ... 50 °C. Constructed with durable materials for the body, it ensures longevity and performance. The port size is G1/2, making it suitable for standard compressed air mediums. Belonging to the V63 range, this solenoid valve offers efficient and precise control.

Applications:

The V63 5/2 single solenoid pilot valve is primarily designed for controlling the extension and retraction of double-acting cylinders. Its reliable performance makes it an essential component in various industrial applications.

This valve is widely used in automatic assembly machines as well as pneumatic clamps and fixtures, where precise control of motion is crucial. Additionally, it finds applications in packaging machinery, filling machines, palletizing systems, and conveyor lines, helping to streamline manufacturing processes.

In the automotive sector, the V63 valve is employed in production lines, welding jigs, and spraying equipment to ensure efficient and accurate operation. Moreover, it is utilized in textile machinery, woodworking machines, and pneumatic systems of machine tools to maintain consistent performance.

The valve also plays a vital role in material handling systems, sorting lines, and mechanisms involved in lifting and positioning, providing reliable and smooth control. Beyond industrial manufacturing, it is suitable for use in water treatment plants, HVAC systems, and pneumatic circuits found in food processing and light industry sectors.
