Product Description:

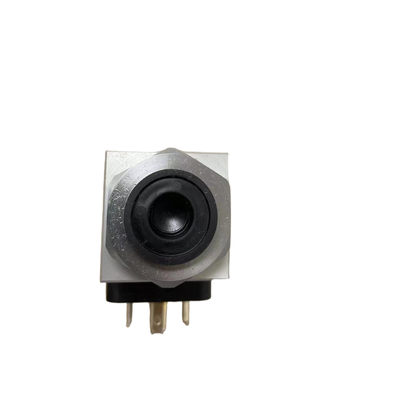

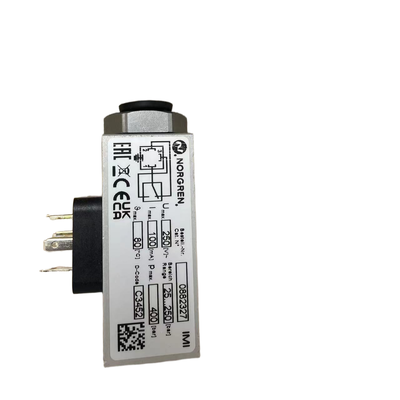

NORGREN 18D Series Electro-Mechanical Pneumatic Pressure Switch
The NORGREN 18D Series, comprising Model 0880 and 0881, is a reliable diaphragm-actuated pressure switch designed for industrial automation applications. It serves as an effective pressure monitor for alarms, interlock mechanisms, and loop control systems. This series accommodates a wide range of pressures, from vacuum levels up to 30 bar, and provides multiple port configuration options including G1/4, 1/4 NPT, and flange mounting.
Users can select between two types of electrical connections: the DIN EN 175301-803 Form-A and the M12×1 IEC 947-5-2. Additionally, LABS-free variants and special brass-body versions tailored for water service are available, making the switch suitable for neutral gases, liquids, and water-based media.
Featuring a gold-plated contact microswitch certified by UL and CSA, the device offers intrinsically safe operation and withstands vibrations up to 15 g. Its mechanical service life can reach up to 10 million switching cycles, ensuring excellent repeatability. The standard housing is made of aluminium alloy, whereas models intended for water applications utilize a brass housing. Seal materials include NBR and FPM, and the maximum ingress protection rating is IP67, allowing the switch to perform reliably in harsh factory environments.
When the system pressure attains the pre-set threshold, the SPDT micro-switch triggers an electrical signal that can be used for machine interlocks, alarms, and on/off control functions in pneumatic machines, hydraulic circuits, and water treatment equipment.
Note: It is recommended to set the pressure set-points near the center of the operating range. Avoid exceeding the rated pressure indicated on the nameplate. For inductive loads, spark-quenching protection circuits are necessary. Connectors must be purchased separately, as DIN or M12 plugs are not included.
Features:
Experience the genuine quality of NORGREN IMI with the comprehensive 18D‑0880 series, offering a wide selection of pressure ranges and port options to suit various applications.
This diaphragm-operated device functions efficiently within an operating pressure range of ‑1 to 30 bar (‑14 to 435 psi), and can withstand a maximum over-pressure of up to 80 bar, ensuring reliable performance under demanding conditions.
Equipped with a gold-plated contact micro-switch, it meets UL and CSA approvals and boasts an impressive mechanical lifespan of 10 million switching cycles, providing durability and consistent operation.
Designed to endure high vibration environments up to 15 g, this product supports intrinsically safe operation, making it suitable for use in challenging and hazardous settings.
The ingress protection ratings are IP65 for the DIN connector version, and IP67 for the M12×1 connection variant, ensuring robust sealing against dust and water ingress.
Compatible with neutral, non-flammable gases and liquids, it features a specialized brass body option for water service applications. It can handle media with viscosity levels up to 1000 mm²/s, expanding its usability.
Featuring an SPDT switch output with fixed hysteresis, the device allows for unrestricted mounting positions to accommodate diverse installation requirements.
Seal materials are selectable between NBR and FPM, with LABS-free versions available, covering the full vacuum range for versatile usage across industries.

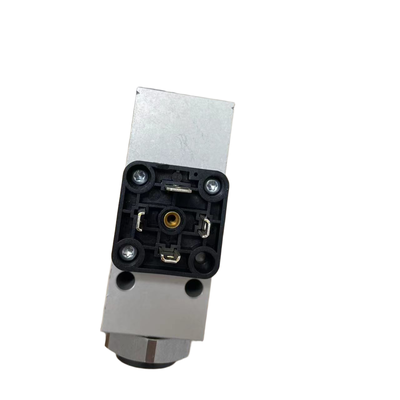

Two electrical interface options are provided: DIN EN175301‑803 Form‑A and M12×1 IEC947‑5‑2, offering flexibility in connectivity according to system specifications.
Technical Parameters:
| Brand |
IMI NORGREN |
| Series |
18D Series, 0880 / 0881 Model Family |
| Hysteresis |
Fixed Switching Differential |
| Operating Pressure |
‑1 …30 Bar |
| Max Over-pressure |
80 Bar |
| Actuation |
Diaphragm Type |
Applications:
This system provides comprehensive pressure monitoring and alarm functions specifically designed for industrial pneumatic automation setups. It ensures optimal performance and safety by continuously tracking pressure levels and alerting operators when abnormalities occur.
Additionally, it offers interlock protection for compressors and vacuum pumps, preventing equipment damage by coordinating pressure conditions and operational sequences. This feature enhances the reliability and longevity of critical machinery.
For hydraulic fluid power systems, the platform enables precise pressure signal feedback, allowing for accurate control and diagnostics. This feedback mechanism supports efficient system management and helps prevent potential failures.
The solution also caters to water-treatment and water-supply equipment, including variants made with brass specifically designed for water‑service applications. This ensures durability and performance in demanding aquatic environments.
In the realm of packaging machinery, machine tools, and conveyor equipment, the system facilitates effective pressure detection, contributing to smooth operation and timely maintenance interventions.
Moreover, it incorporates over-pressure alarm capabilities along with machine start-stop control for industrial fluid pipelines, enhancing safety and operational control within fluid transport networks.
Finally, the system supports vacuum monitoring and control for general-purpose machinery, ensuring consistent performance and protecting equipment from vacuum-related issues across various industrial applications.
Support and Services:
Norgren is committed to providing comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice. We offer detailed product documentation, including datasheets, installation manuals, and operation guides to help you make the most of your solenoid valve.
For maintenance and repair services, Norgren provides authorized service centers equipped with trained technicians and genuine spare parts to ensure the longevity and reliability of your solenoid valves. Additionally, our team can offer on-site support and customized training sessions tailored to your specific application requirements.
We also provide product customization options and engineering support to meet unique operational demands. Whether you require assistance with system integration or need advice on optimizing valve performance, Norgren’s technical experts are ready to support your needs.
By choosing Norgren solenoid valves, you benefit from a global network of support and a commitment to quality and innovation in fluid control solutions.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-fitted foam insert within a sturdy cardboard box to prevent movement and damage. The packaging materials are selected to provide cushioning against shocks, vibrations, and environmental factors.
For shipping, the product is labeled with all necessary handling instructions and shipping information. It is shipped via reliable carriers with tracking options to guarantee timely and safe delivery. Bulk orders are palletized and wrapped to maintain stability during transportation. Customers can expect their Norgren Solenoid Valve to arrive in excellent condition, ready for immediate installation and use.
