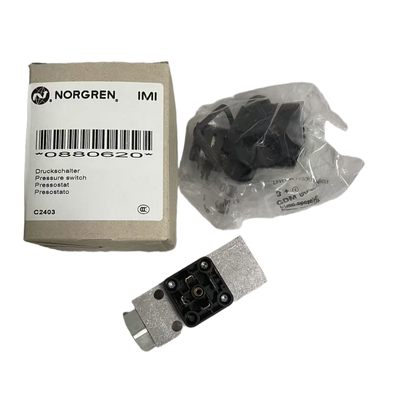

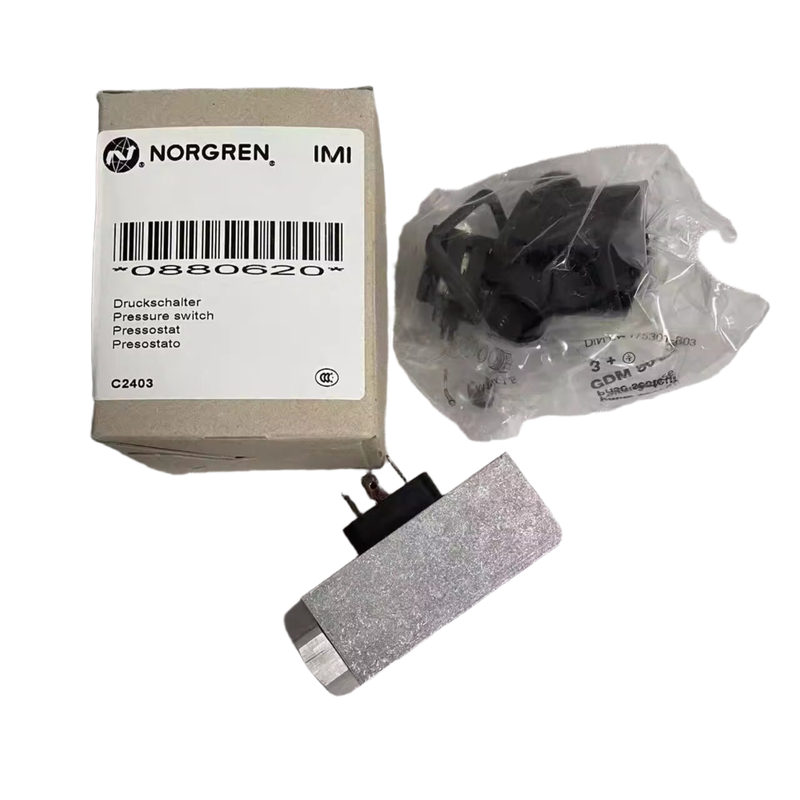

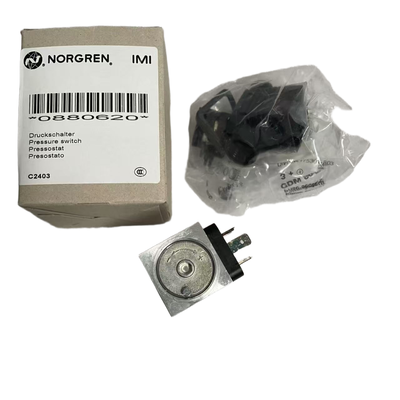

1/4'NPT Thread 1 to 30bar Pressure Switch NORGREN 0880620 Diaphragm Pressure Monitor for Industrial Fluid

Product Description:

The NORGREN 18D Series (Model 0880 / 0881) is an electro-mechanical pneumatic pressure switch that has been extensively used as a reliable diaphragm-actuated pressure monitoring device in industrial automation. It is designed for applications such as pressure alarms, interlock systems, and loop control. This series supports a wide range of pressures, from vacuum conditions up to 30 bar working pressure, and offers various port connection options including G1/4, 1/4 NPT, and flange mounting.

Users can choose between two electrical connection types: DIN EN 175301-803 Form-A and M12×1 IEC 947-5-2. The product line also includes LABS-free variants as well as brass-body models specially intended for water service applications. These configurations make the switch suitable for use with neutral gases, liquids, and water-based media, adapting to diverse working conditions.

The switch is equipped with a gold-plated contact microswitch certified by UL and CSA, ensuring intrinsically safe operation and resistance to vibrations up to 15 g. It boasts a mechanical service life of up to 10 ⁷ switching cycles, maintaining excellent repeatability over time. Standard models feature an aluminium alloy housing, while water-application versions use brass housings. Seal options include NBR and FPM materials. Additionally, the device provides a high degree of protection with an IP67 rating, making it suitable for harsh factory environments.

When the system pressure reaches the preset point, the SPDT micro-switch triggers an electrical signal. This signal can be used for machine interlock, alarm activation, and on-off control of pneumatic machinery, hydraulic circuits, and water-treatment equipment.

Note: It is recommended to set pressure points within the middle range of the device’s operational pressure. Users should never exceed the rated pressure indicated on the nameplate. For inductive loads, appropriate spark-quenching protection circuits are necessary. Connectors are sold separately, and either DIN or M12 plugs are not included with the product.

Features:

Technical Parameters:

Applications:

Pressure monitoring and alarm systems play a crucial role in industrial pneumatic automation setups. These systems ensure that pressure levels remain within safe limits, helping to maintain operational efficiency and safety.

In addition, compressor and vacuum pump operations benefit from pressure interlock protection mechanisms. These safeguards prevent equipment damage by automatically shutting down or adjusting the system when unsafe pressure levels are detected.

For hydraulic fluid power systems, accurate pressure signal feedback is essential. This feedback enables precise control and monitoring of fluid dynamics, improving system performance and reliability.

Water treatment and supply equipment, especially those utilizing brass water-service variants, require specialized pressure monitoring solutions. These are designed to withstand the unique conditions found in water processing environments, ensuring longevity and consistent operation.

Pressure detection is also vital in packaging machinery, machine tools, and conveyor equipment. By continuously monitoring pressure, these systems can maintain optimal performance and prevent mechanical failures.

Over-pressure alarms combined with machine start-stop control are implemented in industrial fluid pipelines to enhance safety. These controls help to avoid accidents by responding promptly to abnormal pressure conditions.

Lastly, general-purpose machinery employs vacuum monitoring and control systems to manage vacuum levels effectively. This is essential for maintaining process integrity and equipment functionality across various industrial applications.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our support team offers expert guidance on product selection, installation, and troubleshooting. We provide detailed product documentation, including datasheets, installation manuals, and maintenance guidelines to assist users in maximizing the efficiency and lifespan of their solenoid valves.

In addition, Norgren offers customized solutions and engineering support to tailor solenoid valve applications to specific industry needs. Our service includes repair and maintenance options to minimize downtime and extend product life. Customers can also benefit from training programs designed to enhance understanding of solenoid valve operation and maintenance best practices.

Norgren’s commitment to quality and innovation ensures that all solenoid valve products meet rigorous performance standards. Our technical support team is dedicated to resolving any issues promptly and effectively, helping customers achieve reliable and efficient pneumatic control solutions.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely enclosed in a durable, custom-fitted box with protective padding to prevent damage from shocks and vibrations. The packaging materials are chosen to provide moisture resistance and safeguard the product from environmental factors.

For shipping, the packaged solenoid valves are placed in sturdy outer cartons with clear labeling for easy identification and handling. We use reliable shipping carriers to guarantee timely and safe delivery to our customers worldwide. Tracking information is provided for all shipments to ensure transparency and peace of mind.
