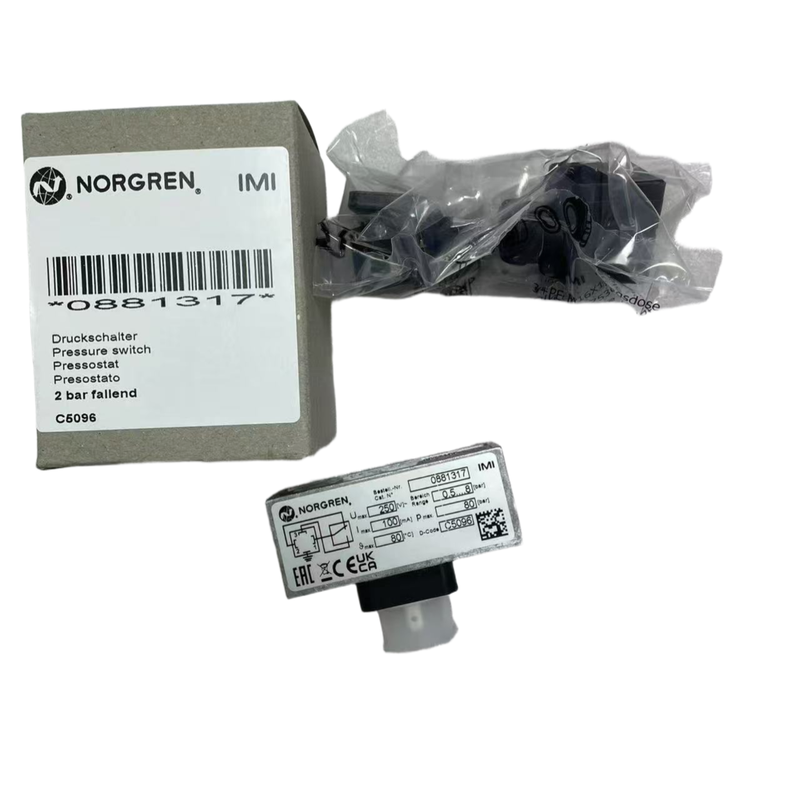

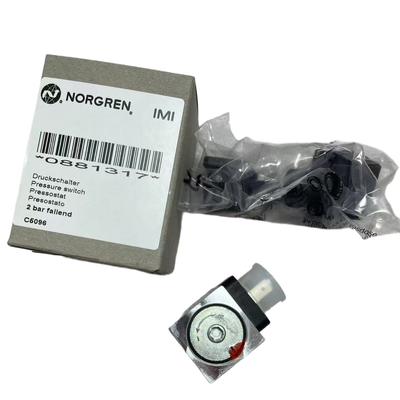

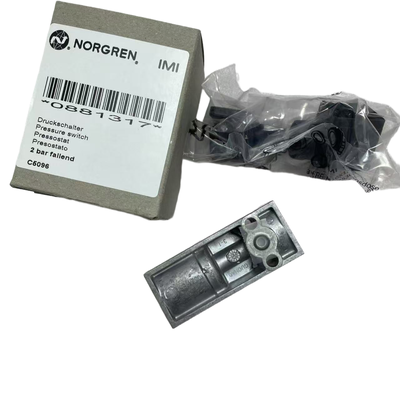

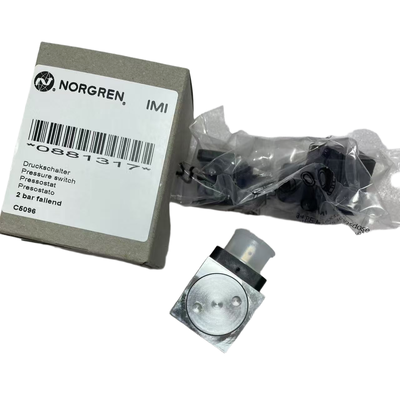

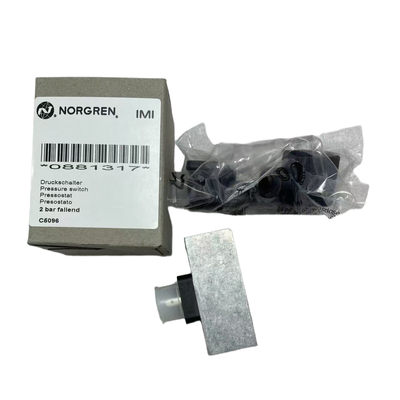

0.5-8bar Industrial Pressure Switch IMI NORGREN 0881317 Pressure Alarm Switch for Conveyor Equipment

The NORGREN 18D Series (Model 0880 / 0881) electro-mechanical pneumatic pressure switch is a reliable diaphragm-actuated device designed for pressure monitoring in industrial automation. It serves functions such as pressure alarms, interlocks, and loop control within various automated systems.

This series supports working pressures ranging from vacuum levels up to 30 bar and offers multiple port configurations, including G1/4, 1/4 NPT, and flange mounting options. Users can choose between two electrical connection types: the DIN EN 175301-803 Form-A and the M12×1 IEC 947-5-2. Additionally, LABS-free variants and brass-bodied special models suited for water applications are available, making this series adaptable for neutral gases, liquids, and water media.

The pressure switch comes equipped with a gold-plated contact microswitch that is UL and CSA certified, ensuring intrinsically safe operation. It is engineered to withstand vibration up to 15 g and offers a mechanical service life of up to 10 million switching cycles with excellent repeatability. The standard housing is made of aluminium alloy, while brass housing options are provided for models intended for water service. Seal materials include NBR and FPM, and the device boasts a maximum ingress protection rating of IP67, making it suitable for challenging factory environments.

When the system pressure reaches the preset point, the SPDT micro-switch activates an electrical signal that can be used for machine interlock, alarm triggers, and on/off control in pneumatic machinery, hydraulic circuits, and water treatment equipment.

Note: Set-points should ideally be positioned near the midpoint of the pressure range. It is important not to exceed the rated pressure indicated on the nameplate. Inductive loads should incorporate spark-quenching protection circuits. Connectors are sold separately; DIN or M12 plugs are not included.

Experience the authentic quality of NORGREN IMI with the comprehensive 18D‑0880 series, offering a wide variety of pressure ranges and port options to suit your specific needs.

This diaphragm-operated device supports an operating pressure range from -1 to 30 bar (equivalent to -14 to 435 psi), with a maximum over-pressure tolerance of up to 80 bar, ensuring reliable performance under diverse conditions.

Equipped with a gold-plated contact micro-switch, the product meets both UL and CSA certifications and boasts a mechanical lifespan of 10 million switching cycles . It is designed to withstand high vibration environments with resistance up to 15 g and guarantees intrinsically-safe operation.

Protection against ingress is rated at IP65 for DIN connectors and IP67 for M12×1 connections, providing excellent durability in challenging environments.

The device is highly compatible with neutral, non-flammable gases and liquids. A dedicated brass body version is available specifically for water service applications. It supports media with viscosities up to 1000 mm²/s, widening its applicability.

Featuring an SPDT switch output with fixed hysteresis, the system allows for mounting in any position without restrictions. Users can select between NBR or FPM seal materials, with LABS-free versions offered to cover the full vacuum range.

Two types of electrical connections are provided: DIN EN175301‑803 Form‑A and M12×1 IEC947‑5‑2 , ensuring flexibility for integration into various control systems.

We provide advanced pressure monitoring and alarm systems specifically designed for industrial pneumatic automation. These systems ensure reliable and accurate detection to maintain smooth operation and safety in various automated processes.

Our solutions include compressor and vacuum pump pressure interlock protection, which helps to prevent equipment damage by automatically managing pressure levels and ensuring safe operation under varying conditions.

For hydraulic fluid power systems, we offer precise pressure signal feedback mechanisms. These enable real-time monitoring and control, enhancing the performance and reliability of hydraulic machinery.

In water-treatment and water-supply industries, we provide specialized pressure monitoring devices with brass water-service variants, tailored to withstand the specific demands of these environments and ensure consistent water flow management.

Our products are also well-suited for packaging machinery, machine tools, and conveyor equipment, where accurate pressure detection plays a critical role in maintaining operational efficiency and product quality.

We offer over-pressure alarm systems and machine start-stop control solutions designed for industrial fluid pipelines, helping to prevent accidents and optimize process control through timely interventions.

Additionally, our general-purpose machinery vacuum monitoring and control systems provide versatile solutions suitable for a wide range of industrial applications, ensuring reliable vacuum management and equipment protection.
