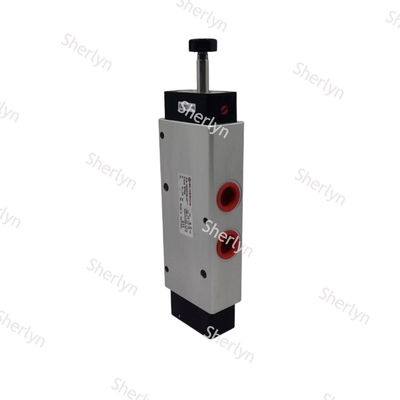

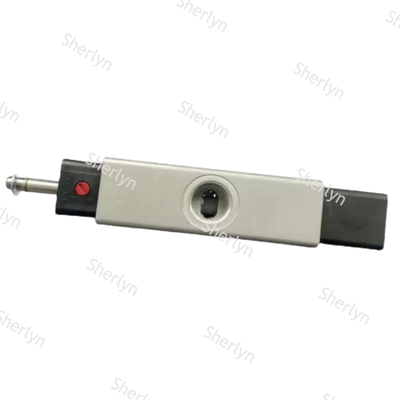

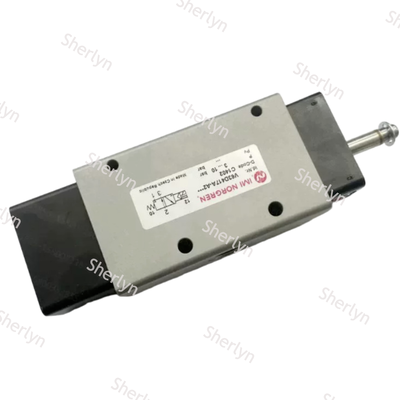

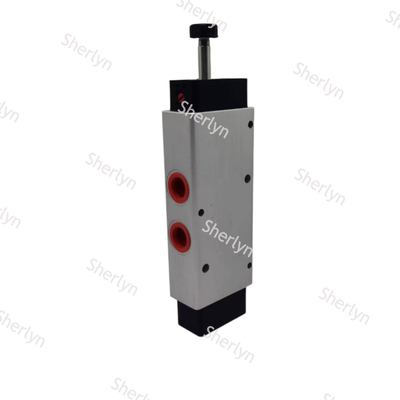

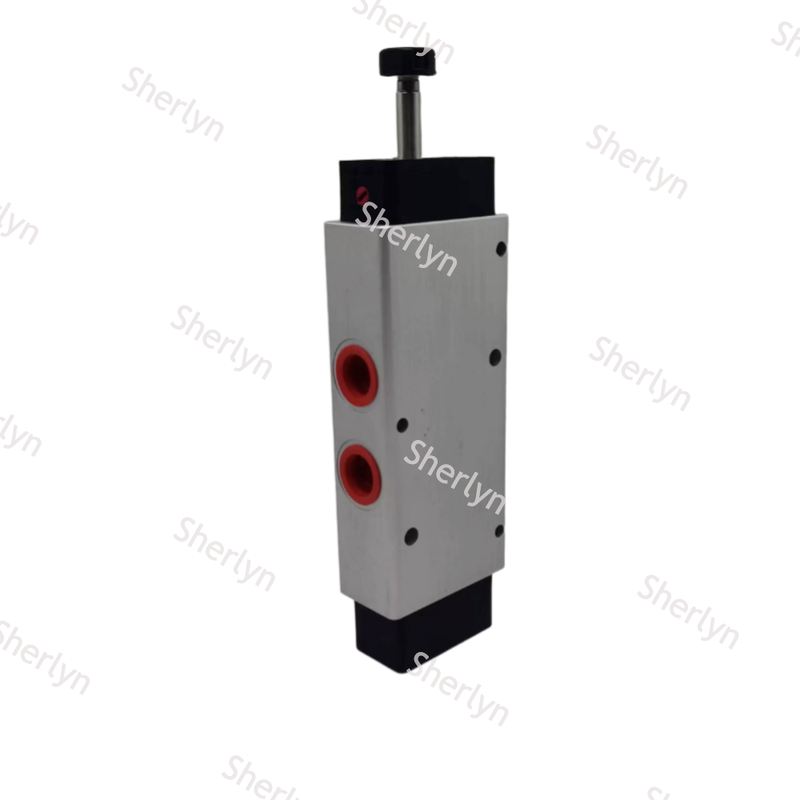

Pneumatic 5/2 Directional Control Valve V63D517A-A213J, IMI NORGREN Single Solenoid Pilot Solenoid Valve

Product Description:

The NORGREN V63 series 5/2 single solenoid pilot operated solenoid valve features a spring return mechanism and belongs to the XF inline pilot directional control valve family. This valve utilizes a spring return design to ensure reliable operation.

The main spool is actuated by a pilot air signal and automatically returns to its original position when the power is turned off. Equipped with a G1/2 port and designed for high flow capacity, it supports both internal and external pilot supply options.

Constructed with a die-cast aluminium body and standard NBR seals, the valve is suitable for use with filtered compressed air, whether lubricated or non-lubricated. Its robust build guarantees durability and efficient performance in various conditions.

Additionally, the modular manifold base system allows for flexible and convenient mounting configurations. This valve is widely utilized in industrial automation to control double-acting cylinders, making it a versatile component in pneumatic systems.

Features:

The device features a single solenoid with a spring return mechanism and pilot actuation. It operates with a low power coil consuming only 2 watts, which results in minimal heat generation. This makes it suitable for direct control through PLC systems.

Constructed with a die-cast aluminium body, the valve offers excellent corrosion resistance. It incorporates a proven and reliable sealing system that ensures maintenance-free operation and extends the service life of the product.

Equipped with a standard G thread, the valve is compatible with commonly used pneumatic piping. Additionally, it includes a modular manifold base designed for multi-valve integrated installations, enhancing flexibility and ease of setup.

Technical Parameters:

Applications:

The V63 5/2 single solenoid pilot valve is primarily designed to control the extension and retraction of double-acting cylinders. Its reliable performance makes it an essential component in various pneumatic systems.

This valve finds broad usage across multiple industries and applications. It is commonly employed in automatic assembly machines as well as pneumatic clamps and fixtures, where precise control of cylinder movement is crucial.

Additionally, the V63 5/2 valve plays a vital role in packaging machinery, filling machines, palletizing units, and conveyor lines, contributing to efficient and smooth operation. It is also widely used in automotive production lines, welding jigs, and spraying equipment to streamline manufacturing processes.

Other notable applications include textile machinery, woodworking machines, and pneumatic systems within machine tools. The valve supports material handling systems, sorting lines, and mechanisms for lifting and positioning, enhancing automation capabilities.

Moreover, it serves important functions in sectors such as water treatment, HVAC systems, and food and light industries, where pneumatic circuits demand reliable valve performance for optimal operation.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance procedures. We offer detailed product documentation, including datasheets, installation manuals, and application notes to help users understand the specifications and operational parameters of our solenoid valves.

In addition to support, Norgren provides repair and maintenance services to extend the lifecycle of your solenoid valves. Our skilled technicians can perform diagnostics, repair, and calibration to maintain product reliability and efficiency. We also offer training sessions and workshops to educate customers on best practices and the latest technological advancements related to our solenoid valve products.

For custom solutions, Norgren's engineering team can collaborate with customers to design and develop solenoid valve configurations tailored to specific application requirements. Our commitment to quality and innovation ensures that you receive high-performance products backed by expert support throughout the product lifecycle.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-fitted foam insert within a sturdy cardboard box to prevent movement and damage. The packaging materials are designed to withstand shocks, vibrations, and environmental factors, ensuring the product arrives in perfect condition.

For shipping, each package is clearly labeled with handling instructions and tracking information. We utilize reliable courier services that offer timely and safe delivery worldwide. Bulk orders are palletized and shrink-wrapped to provide additional stability and protection during shipment. Customers are advised to inspect the package upon receipt and report any damages immediately to facilitate prompt resolution.
