Product Description:

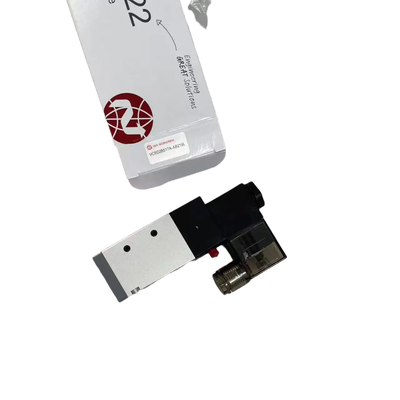

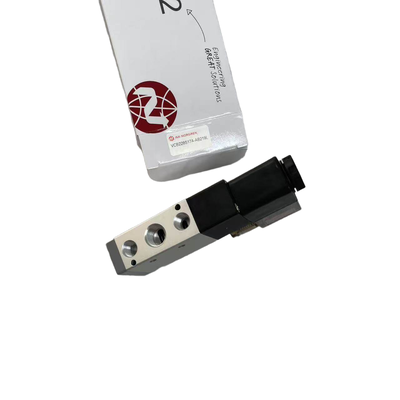

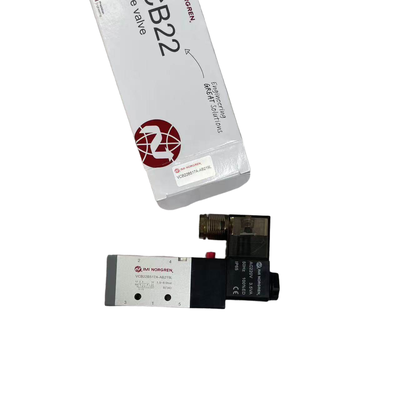

IMI Norgren VCB22 Series Solenoid Valves
The IMI Norgren VCB22 Series represents a high-performance solenoid actuated spool valve designed to deliver versatile directional control functions, including 3/2, 5/2, and 5/3 configurations. This range is suitable for a broad spectrum of industrial pneumatic automation needs, combining reliability with precision control.
Constructed with a compact aluminum housing, the VCB22 Series incorporates features such as standard LED indicator lights and an internal pilot air supply. It supports flow rates varying from 245 to 3350 liters per minute, making it adaptable for applications that demand anything from miniature to high-flow pneumatic circuits.
The series is available in four distinct valve widths—18mm, 22mm, 27mm, and 34mm—and comes with various port size options including M5, G1/8, G1/4, G3/8, and G1/2. Additionally, the valves offer NAMUR mounting capabilities, enabling integration into sub-base systems that facilitate straightforward manifold assembly and simplified maintenance processes.
These valves find widespread application across several industries such as packaging machinery, automotive manufacturing, food and beverage processing, textile equipment, chemical processing, and general industrial automation. Their versatility and robust design make the VCB22 Series a dependable choice for enhancing pneumatic control systems.
Features:
Experience the reliability of genuine IMI Norgren industrial solenoid valves, a brand synonymous with trusted quality in the industrial sector. These valves are engineered for optimal performance and durability.
The product line offers a range of directional control configurations, including 3/2, 5/2, and 5/3 options to suit various application needs. Customers can choose from four distinct valve widths : 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D).
Designed with versatility in mind, these valves come with a comprehensive selection of port sizes : M5, G1/8, G1/4, G3/8, and G1/2. Additionally, NAMUR standards are met with G1/4 and G3/8 port options, enhancing compatibility.
They provide an impressive high flow capacity ranging from 245 to 3350 liters per minute at 6 bar inlet pressure, with a pressure drop of only 1 bar. This ensures efficient and effective pneumatic control.
Each valve features a built-in LED indicator light as a standard component, offering a clear and immediate display of power status. For ease of use during commissioning and ongoing maintenance, a push and turn locking manual override is incorporated.
With a 100% continuous duty rating , these valves are designed for long-term operation without compromise. They also boast an IP65 protection class , making them ideal for use in demanding and harsh industrial environments.
Constructed with a sturdy yet lightweight aluminum housing and fitted with NBR seals for compressed air service, these valves combine durability with reliability. The sub-base mounting system simplifies piping configuration and facilitates manifold assemblies.
The internal design requires only an internal pilot air supply , eliminating the need for any external pilot source. Furthermore, the valves accommodate voltage fluctuations of ±10% , ensuring stable performance under typical industrial power variations.
Available in configurations of either single solenoid (spring return) or double solenoid operation, these valves offer flexibility to meet different operational demands. For the 5/3 models, there are three center function options: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) .
Technical Parameters:
| Series |
VCB22 |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Ambient/Media Temperature |
-5°C To +70°C |
| Operating Pressure |
1.5 To 8 Bar |
| Pilot Supply |
Internal |
| Valve Type |
Solenoid Actuated Spool Valve |
| Flow Rate |
245 To 3350 L/min |
| Brand |
IMI Norgren |
| Voltage Options |
24VDC, 24VAC, 110VAC, 220VAC, 240VAC |
Applications:
The Norgren VCB22 series solenoid valves find extensive application across a variety of industrial sectors. These valves are designed to provide reliable pneumatic control and are suitable for numerous automation tasks.
In the packaging machinery industry, they are commonly used for pneumatic actuation control in processes such as food packaging, carton forming, and filling lines. Their precise operation ensures efficient and consistent packaging processes.
Within automotive manufacturing, these solenoid valves facilitate air circuit switching for welding fixtures, assembly lines, and robotic workcells. Their robust design supports demanding production environments.
The food and beverage sector benefits from the automated control capabilities of the VCB22 series, particularly in filling equipment, labeling machines, and sorting systems. This enhances productivity and maintains hygiene standards.
In textile machinery, these valves provide pneumatic power for looms, dyeing equipment, and fabric handling lines, enabling smooth and reliable operation throughout the manufacturing process.
The chemical and pharmaceutical industries utilize the VCB22 series for pneumatic isolation in process control fluid circuits. It is important to verify media compatibility to ensure optimal performance and safety.
In electronics and semiconductor manufacturing, the valves offer precision pneumatic control critical for cleanroom equipment, printed circuit board assembly, and inspection systems.
For general industrial automation, the VCB22 series is used for directional control in machine loading and unloading, conveyors, lifts, and rotary tables, contributing to streamlined workflows and enhanced efficiency.
These valves also comply with NAMUR standards, allowing direct mounting on pneumatic actuators such as cylinders and control valves, making them ideal for standardized automation setups.
Additionally, manifold systems benefit from the multi-valve centralized installation capability of the VCB22 series, which can be integrated via sub-bases for simplified piping and compact design.
Support and Services:
Norgren solenoid valves are designed to provide reliable and efficient control of pneumatic and fluid flow in a variety of industrial applications. Our product technical support and services ensure that you receive expert assistance throughout the lifecycle of your solenoid valve.
Our technical support team is available to help with product selection, installation guidance, troubleshooting, and maintenance tips to optimize the performance of your solenoid valve. We offer detailed product documentation, including datasheets, wiring diagrams, and operation manuals to assist with proper usage.
In addition to technical support, Norgren provides comprehensive services such as valve customization, repair, and replacement solutions. Our commitment is to minimize downtime and maximize productivity by delivering timely and effective service.
For complex applications, we offer engineering support to tailor solenoid valve solutions that meet specific operational requirements. Our experts work closely with customers to ensure seamless integration and compliance with industry standards.
Trust Norgren for dependable technical support and service excellence to keep your solenoid valve systems running smoothly and efficiently.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely enclosed in a custom-fitted box with protective padding to prevent damage from shocks and vibrations. The packaging materials are designed to be durable and moisture-resistant, maintaining the integrity of the product until it reaches the customer.
For shipping, the Norgren Solenoid Valve is handled with priority to ensure timely delivery. The product is shipped using reliable carriers with tracking options available for customer convenience. All shipments comply with international shipping regulations and standards to guarantee safe and secure transport worldwide.
