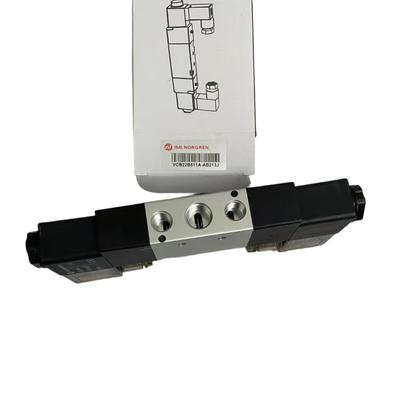

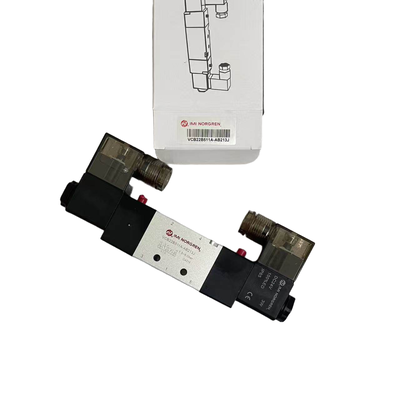

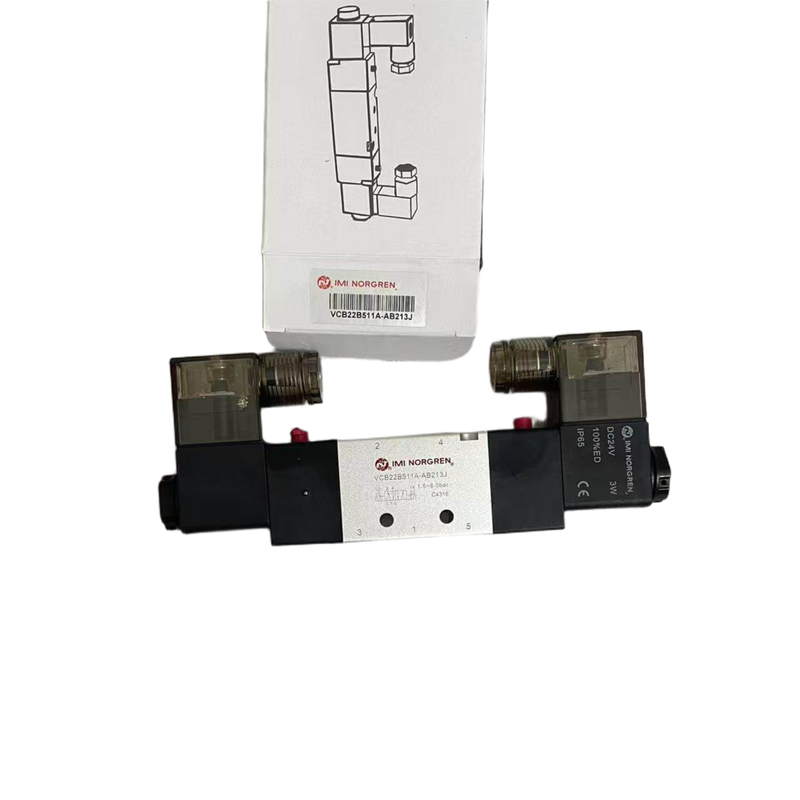

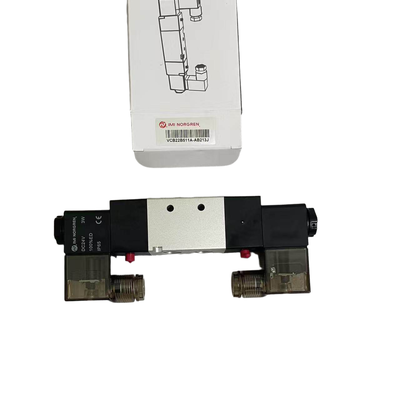

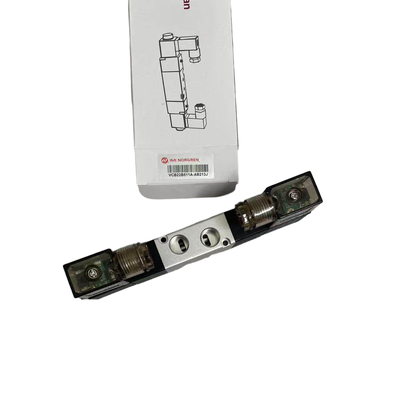

Product Description:
The IMI Norgren VCB22 Series represents a high-performance line of solenoid actuated spool valves designed to deliver versatile directional control. Offering configurations such as 3/2, 5/2, and 5/3, these valves cater to a broad spectrum of industrial pneumatic automation needs. Their compact aluminum construction is complemented by standard LED indicator lights and an internal pilot air supply, ensuring efficient operation across various applications.
With flow rates spanning from 245 to 3350 liters per minute, the VCB22 series is capable of meeting pneumatic circuit requirements that range from small-scale to high-flow demands. This adaptability makes them suitable for diverse settings where precise and reliable valve performance is critical.
The series is available in four different valve widths—18mm, 22mm, 27mm, and 34mm—and offers multiple port sizes including M5, G1/8, G1/4, G3/8, and G1/2. Additionally, NAMUR mounting options are provided, facilitating easy integration into various systems. A sub-base system supports straightforward manifold assembly and maintenance, enhancing operational efficiency.
Due to their robust design and versatile features, VCB22 valves are extensively utilized across numerous industries. Key applications include packaging machinery, automotive manufacturing, food and beverage processing, textile equipment, chemical processing, and general industrial automation tasks.
Features:
Experience the reliability of genuine IMI Norgren industrial solenoid valves, a trusted name known for outstanding quality. These valves come in versatile directional control options including 3/2, 5/2, and 5/3 configurations to suit various industrial applications.
Choose from four distinct valve widths : 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D), providing flexibility to match your operational requirements. The valves support a variety of port sizes including M5, G1/8, G1/4, G3/8, and G1/2 , along with specialized NAMUR ports G1/4 and G3/8 to fit different system needs.
These solenoid valves deliver impressive flow capacities ranging from 245 to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop, ensuring efficient fluid control. An integrated LED indicator provides clear visual feedback of the power status, enhancing operational safety and convenience.
Equipped with a push and turn to lock manual override , these valves simplify commissioning and routine maintenance. Designed for continuous operation, they feature a 100% duty rating and an IP65 protection class to withstand demanding industrial environments.
The robust yet lightweight aluminum housing ensures durability, while NBR seals guarantee reliable performance for compressed air service. Installation is simplified by the sub-base mounting system that facilitates easy piping and manifold assembly.
With an internal pilot air supply , external pilot lines are not necessary. The valves maintain performance despite electrical fluctuations thanks to a ±10% voltage tolerance . Available options include both single solenoid (spring return) and double solenoid configurations.
Additionally, for 5/3 valves, three center functions are offered: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , allowing tailored solutions for different pneumatic control needs.
Technical Parameters:
| Brand |
IMI Norgren |
| Series |
VCB22 |
| Valve Type |
Solenoid Actuated Spool Valve |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Operating Pressure |
1.5 To 8 Bar |
Applications:
Applications of Norgren VCB22 Series Solenoid Valves
The Norgren VCB22 series solenoid valves find extensive utilization across a variety of industrial sectors due to their reliable pneumatic control capabilities. These valves are essential components in systems requiring precise and efficient actuation.
Packaging Machinery
In the packaging industry, these solenoid valves are employed for pneumatic actuation control, playing a critical role in food packaging processes, carton forming, and filling lines. Their integration ensures smooth operation and enhanced productivity.
Automotive Manufacturing
The automotive sector leverages the VCB22 series for air circuit switching within welding fixtures, assembly lines, and robotic workcells. This contributes to streamlined manufacturing workflows and improved automation.
Food and Beverage Industry
These valves facilitate automated control in food and beverage applications, including filling equipment, labeling machines, and sorting systems, thereby supporting hygienic and efficient processing operations.
Textile Machinery
Within textile machinery, the valves are used to drive pneumatic systems in looms, dyeing equipment, and fabric handling lines, enhancing precision and operational reliability.
Chemical and Pharmaceutical Sectors
In chemical and pharmaceutical processes, the VCB22 valves provide pneumatic isolation within fluid circuits for process control. It is important to verify media compatibility when applying these valves in such environments.
Electronics and Semiconductor Manufacturing
Precision pneumatic control is vital in electronics and semiconductor production, where these valves are utilized in cleanroom equipment, PCB assembly lines, and inspection systems to maintain high standards of accuracy and cleanliness.
General Industrial Automation
In broader industrial automation contexts, the valves offer directional control for various machinery, including loading and unloading systems, conveyors, lifts, and rotary tables, contributing to versatile and reliable operation.
NAMUR Standard Applications
The VCB22 series supports direct mounting on pneumatic actuators such as cylinders and control valves in compliance with the NAMUR standard, ensuring compatibility and ease of integration.
Manifold Systems
Additionally, these solenoid valves can be installed in manifold systems via sub-bases, enabling multi-valve centralized configurations for streamlined piping and control.
