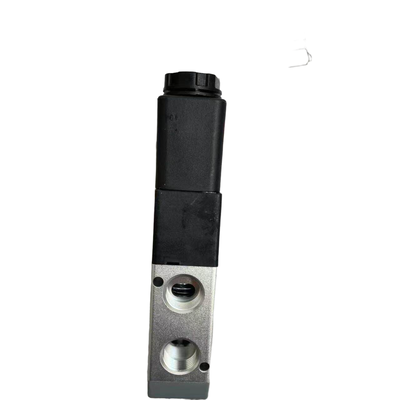

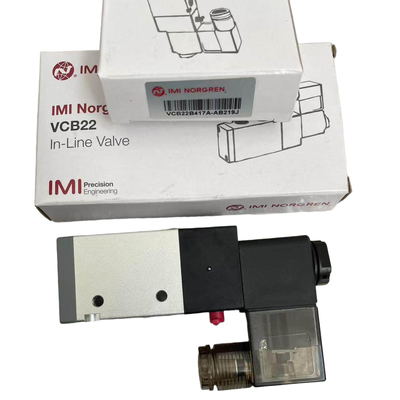

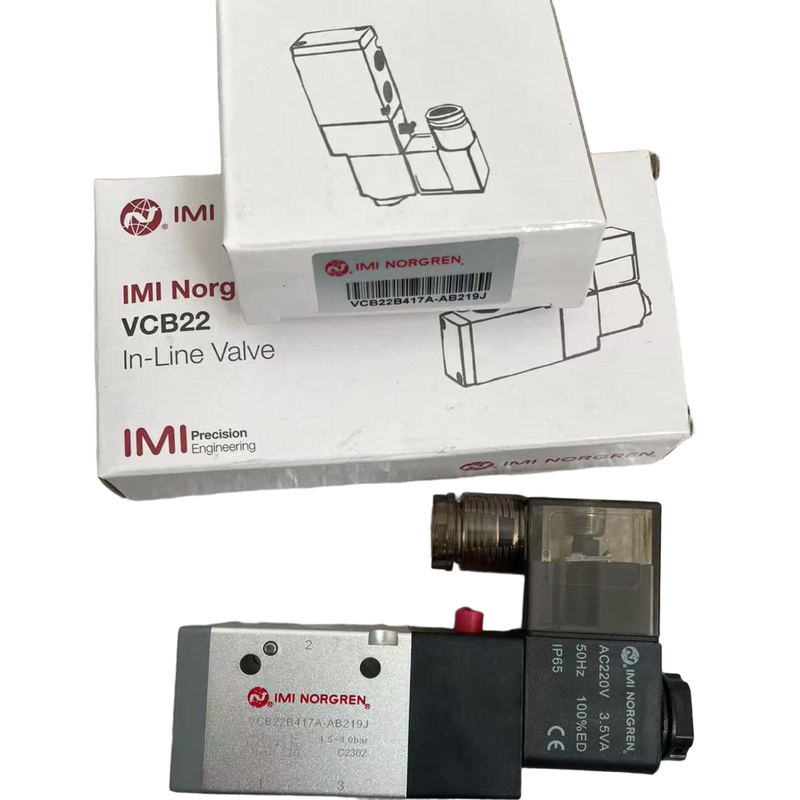

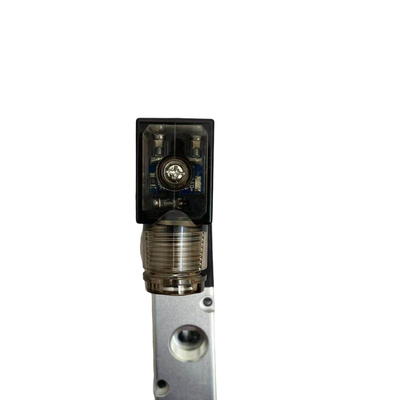

Product Description:
The IMI Norgren VCB22 Series represents a high-performance solenoid-operated spool valve that delivers versatile directional control functions including 3/2, 5/2, and 5/3 configurations. Designed to support a broad spectrum of industrial pneumatic automation needs, this series excels in various applications requiring reliable and efficient valve operation.
Constructed with a compact aluminum housing, the VCB22 Series is equipped with standard LED indicator lights and an internal pilot air supply. It offers impressive flow capacities ranging from 245 to 3350 liters per minute, effectively catering to pneumatic circuits from small-scale to high-flow demands. This makes the series suitable for diverse operational environments.
The valves come in four different widths—18mm, 22mm, 27mm, and 34mm—and support multiple port sizes, including M5, G1/8, G1/4, G3/8, and G1/2. Additionally, the series features NAMUR mounting options and a sub-base system that facilitates straightforward manifold assembly and maintenance. These design elements enhance usability and integration into complex pneumatic systems.
Due to their robust construction and flexible configurations, VCB22 valves find widespread use in a variety of industries. Common applications include packaging machinery, automotive manufacturing, food and beverage production, textile equipment, chemical processing, and general industrial automation, where reliable pneumatic control is essential.
Features:
Introducing the Genuine IMI Norgren industrial solenoid valves, renowned for their trusted brand quality and reliable performance in various industrial applications. These valves come in multiple directional control configurations including 3/2, 5/2, and 5/3 , catering to diverse control needs.
Customers can choose from four different valve widths : 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D). Additionally, these valves offer a comprehensive selection of port options such as M5, G1/8, G1/4, G3/8, and G1/2, along with NAMUR G1/4 and G3/8 variations to fit specific installation requirements.
Designed for high efficiency, the valves support a high flow capacity ranging from 245 to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop. Equipped with an LED indicator light as standard, they provide clear visibility of the power status at all times.
Ease of use is enhanced by the push and turn to lock manual override , simplifying commissioning and maintenance tasks. Moreover, these valves are rated for 100% continuous duty , ensuring reliable operation during extended service periods.
Built to withstand demanding environments, they feature an IP65 protection class rating, offering resistance against dust and water ingress. The robust yet lightweight aluminum housing combined with NBR seals makes them ideal for compressed air service in industrial settings.
Installation is made straightforward with the sub-base mounting system , which simplifies piping and supports manifold assembly. The valves operate using an internal pilot air supply , eliminating the need for an external pilot.
With a voltage tolerance of ±10% , these valves can safely accommodate fluctuations commonly found in industrial power supplies. They are available as either single solenoid (spring return) or double solenoid configurations to best suit control preferences.
For the 5/3 valve type, there are three center functions offered: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , providing flexibility in control strategies.
Technical Parameters:
| Valve Type |
Solenoid Actuated Spool Valve |
| Operating Pressure |
1.5 To 8 Bar |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Series |
VCB22 |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Brand |
IMI Norgren |
Applications:
Applications of Norgren VCB22 Series Solenoid Valves
The Norgren VCB22 series solenoid valves are extensively utilized across a variety of industrial sectors due to their reliable performance and versatility.
Packaging Machinery
These valves are commonly employed for pneumatic actuation control in food packaging processes, carton forming operations, and automated filling lines, ensuring efficiency and accuracy.
Automotive Manufacturing
In the automotive industry, the valves manage air circuit switching for welding fixtures, assembly lines, and robotic workcells, contributing to streamlined production workflows.
Food and Beverage
The valves provide automated control solutions for filling equipment, labeling machines, and sorting systems within the food and beverage sector, enhancing automation and throughput.
Textile Machinery
Within textile machinery, the solenoid valves support pneumatic drives for looms, dyeing equipment, and fabric handling lines, playing a crucial role in process automation.
Chemical and Pharmaceutical
In chemical and pharmaceutical environments, these valves enable pneumatic isolation in process control fluid circuits. It is important to verify media compatibility prior to use.
Electronics and Semiconductor
Precision pneumatic control is achieved in cleanroom equipment, PCB assembly lines, and inspection systems in the electronics and semiconductor industries through the use of VCB22 series valves.
General Industrial Automation
The valves also serve general industrial automation needs by providing directional control for machine loading and unloading, conveyors, lifts, and rotary tables.
NAMUR Applications
Designed to meet NAMUR standards, these solenoid valves allow for direct mounting on pneumatic actuators such as cylinders and control valves, facilitating easy integration.
Manifold Systems
For centralized installations, the VCB22 series valves can be mounted in multi-valve manifold systems using sub-bases, enabling integrated piping and streamlined control.
Support and Services:
Norgren solenoid valves are designed to provide reliable and efficient control of fluid and air flow in various industrial applications. For technical support, please refer to the product datasheets and installation manuals available on the Norgren website to ensure correct selection, installation, and operation.
Our technical support team is available to assist with product selection, troubleshooting, and maintenance advice to maximize the performance and lifespan of your solenoid valve. Regular maintenance is recommended to prevent contamination and wear, which can affect valve functionality.
Spare parts and replacement components for Norgren solenoid valves are available to support repair and refurbishment needs. For detailed service guidelines, please consult the product-specific service instructions provided with your valve or accessible online.
Norgren also offers training and support services to help customers optimize the use of their solenoid valves and integrated systems. For comprehensive support, ensure that all installation and operational procedures follow the recommended guidelines to maintain product warranty and safety standards.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure protection during transit. Each valve is individually wrapped in anti-static material and placed in a custom-fitted foam insert to prevent movement and damage.
The packaged product is then placed inside a sturdy, corrugated cardboard box with clear labeling for easy identification. All necessary documentation, including installation instructions and warranty information, is included inside the package.
For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. The Norgren Solenoid Valve is shipped with appropriate handling instructions to maintain product integrity throughout the shipping process.
