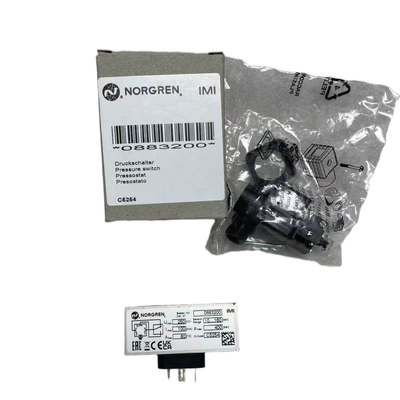

IMI NORGREN 0883200 Pressure Switch 10 to 160bar Pressure Interlock Controller for High Pressure Fluid Pipeline

Product Description:

The NORGREN 18D Series (Model 0880 / 0881) electro-mechanical pneumatic pressure switch is a reliable diaphragm-actuated pressure monitor designed for industrial automation applications. It is ideal for pressure alarm, interlock, and loop control functions. This series accommodates a wide pressure range, covering from vacuum levels up to 30 bar working pressure, and offers multiple port options including G1/4, 1/4 NPT, and flange mounting.

Customers can select from two electrical connection types: the DIN EN 175301-803 Form-A and the M12×1 IEC 947-5-2. Additionally, there are LABS-free variants and brass-body versions specifically designed for water service, making them suitable for neutral gas, liquid, and water-based media environments.

Each unit is equipped with a gold-plated contact microswitch that has been certified by UL and CSA. These switches are built for intrinsically safe operation and can withstand vibrations up to 15 g. The mechanical service life of the switch can reach up to 10⁷ switching cycles, ensuring excellent repeatability and durability. The standard housing is constructed from aluminum alloy, while brass housings are available for water-application models. Sealing options include NBR and FPM materials, and the device provides a maximum ingress protection rating of IP67, suitable for demanding factory environments.

When the system pressure reaches the preset set-point, the SPDT micro-switch will output an electrical signal to trigger machine interlocks, alarms, or on-off control for pneumatic machines, hydraulic circuits, and water-treatment equipment.

Note: Set-points should ideally be set near the middle of the pressure range. Do not exceed the rated pressure indicated on the nameplate. Inductive loads require spark-quenching protection circuits. Connectors are sold separately; DIN or M12 plugs are not included.

Features:

Technical Parameters:

Applications:

Our services include pressure monitoring and pressure alarm systems designed specifically for industrial pneumatic automation processes. These systems ensure safe and efficient operation by constantly keeping track of pressure levels.

We also provide interlock protection solutions for compressors and vacuum pumps. This feature helps prevent equipment damage by ensuring that these devices operate within safe pressure parameters.

In hydraulic fluid power systems, accurate pressure signal feedback is essential. Our products offer reliable pressure sensing capabilities to maintain optimal system performance and prevent malfunctions.

For water-treatment and water-supply equipment, we offer specialized variants made from brass to suit water-service applications. These models are tailored to withstand the unique conditions of water processing environments.

Our pressure detection solutions are widely used across various industries, including packaging machinery, machine tools, and conveyor equipment. These applications benefit from precise and timely pressure measurements to maintain operational consistency.

We provide over-pressure alarm systems along with machine start-stop control designed for industrial fluid pipeline networks. These controls help protect pipelines from damage by automatically responding to pressure anomalies.

Finally, our vacuum monitoring and control systems cater to general-purpose machinery. These systems allow for efficient vacuum level management, ensuring reliable machine functionality in diverse industrial settings.

Support and Services:

Norgren Solenoid Valves are designed to provide reliable and efficient control of pneumatic and fluid systems. For technical support and service inquiries, our team of experts is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice to ensure optimal performance of your solenoid valve.

We offer comprehensive technical documentation, including datasheets, installation manuals, and wiring diagrams, to support correct application and operation. Additionally, our support services include diagnostic assistance to identify and resolve any issues you may encounter during use.

For service and repair, Norgren provides authorized service centers equipped to handle maintenance and refurbishment of solenoid valves, ensuring extended product life and consistent functionality. Replacement parts and upgrade options are also available to meet evolving system requirements.

To maximize the lifespan and efficiency of your Norgren Solenoid Valve, we recommend following the specified installation and maintenance procedures outlined in the product documentation. Our technical support team is committed to helping you achieve the best performance and reliability from your Norgren products.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure protection during transit. Each valve is securely placed in a custom-fitted box with protective padding to prevent damage from shocks and vibrations. The packaging materials are chosen to safeguard the product from moisture, dust, and other environmental factors.

For shipping, the packaged solenoid valves are labeled with handling instructions and product information for easy identification. The shipments are dispatched through reliable carriers, ensuring timely and safe delivery to the customer. Bulk orders are palletized and shrink-wrapped to provide additional stability during shipping.
