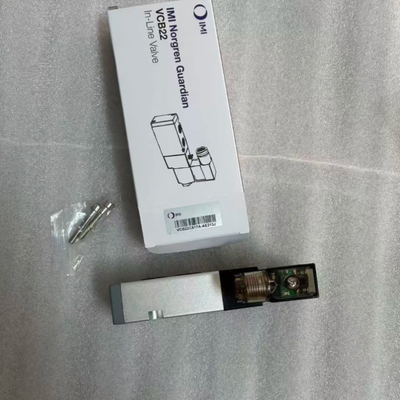

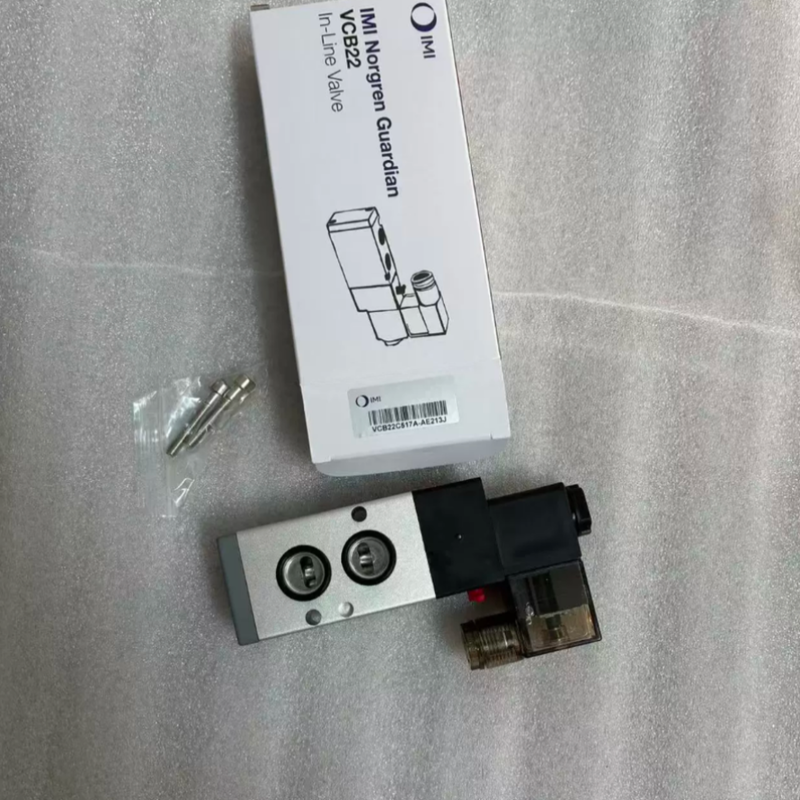

5/2 Pilot Directional Valve VCB22B417A-AB219J Norgren G1/4 24VDC, Spare Part for Assembly Lines

Product Description:

The IMI Norgren VCB series, also known as the Guardian series, comprises pilot-operated spool solenoid valves. This series primarily includes two main models: the compact VCB10 and the high-flow VCB22.

These valves offer a variety of functions to suit different applications, including 3/2, 5/2, and 5/3 valve configurations. They are designed to operate with compressed air that is filtered to 40 microns, and they can work with either lubricated or non-lubricated media.

Installation options are versatile, with choices such as in-line porting, sub-base mounting, and a NAMUR version available to accommodate various system requirements. The VCB series valves are intended specifically for cylinder actuators, providing a reliable and cost-effective solution for general pneumatic control circuits.

Features:

The valve offers a high flow capacity, accommodating a broad range of port sizes. It supports flow rates from 245 to 3350 liters per minute, ensuring efficient performance across various applications.

It features multiple valve functionalities, including solenoid with spring return, double solenoid configurations, as well as 5/3 valves with closed or exhaust center options. These diverse functions provide flexibility for different operational requirements.

Additionally, the valve is available with an optional NAMUR interface, allowing for direct compatibility with NAMUR pneumatic actuators. This feature simplifies installation and integration within existing pneumatic systems.

Technical Parameters:

Applications:

The VCB series solenoid valves serve as essential directional control elements within pneumatic systems. These valves are designed to actuate various pneumatic devices such as cylinders, grippers, stoppers, and pneumatic actuators, playing a crucial role in ensuring efficient and reliable operation.

These solenoid valves find wide application across numerous industries. They are commonly utilized in automated production lines, packaging machinery, textile manufacturing equipment, and woodworking tools. Additionally, they support injection molding auxiliary machines, material handling systems, automotive fixtures, and food processing machinery.

Beyond these, the VCB series valves are also integral to general process valve control, new energy equipment, and warehouse sorting systems. Their versatility and dependable performance make them suitable for a broad range of industrial automation solutions.

Support and Services:

Norgren offers comprehensive Product Technical Support and Services for its Solenoid Valve range to ensure optimal performance and customer satisfaction. Our expert team provides assistance with product selection, installation guidance, troubleshooting, and maintenance advice to maximize the lifespan and efficiency of your solenoid valves.

We provide detailed product documentation, including datasheets, installation manuals, and application notes, to support your engineering and operational needs. Our technical support specialists are available to help diagnose issues, recommend compatible accessories, and offer solutions tailored to your specific application requirements.

In addition to support services, Norgren offers repair and refurbishment options to extend the service life of your solenoid valves, minimizing downtime and replacement costs. We also provide training sessions and webinars to keep your team up-to-date with the latest technologies and best practices in solenoid valve usage and maintenance.

Trust Norgren's Product Technical Support and Services to deliver reliable, expert assistance throughout the lifecycle of your solenoid valve products, ensuring maximum uptime and performance in your pneumatic and fluid control systems.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent any damage from shocks or vibrations.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate efficient processing and delivery.

Shipping is conducted through reliable carriers with tracking options available, ensuring timely and secure delivery to the customer’s specified location.

For bulk orders, valves are packed in reinforced cartons with additional padding to maintain product integrity throughout the shipping process.

Special packaging requests and international shipping options are also available upon consultation.
