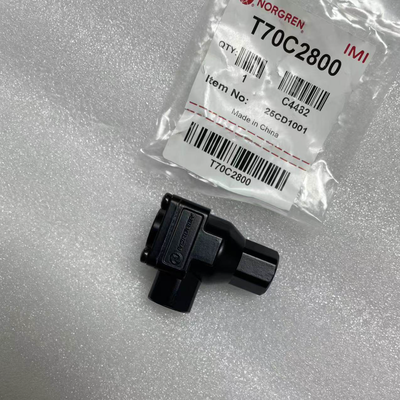

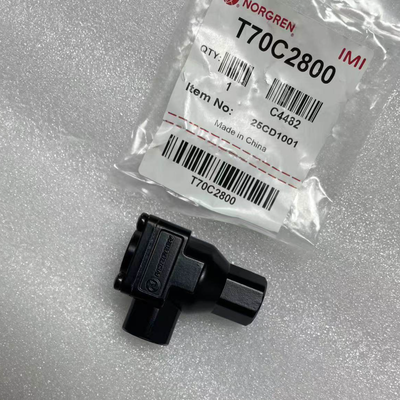

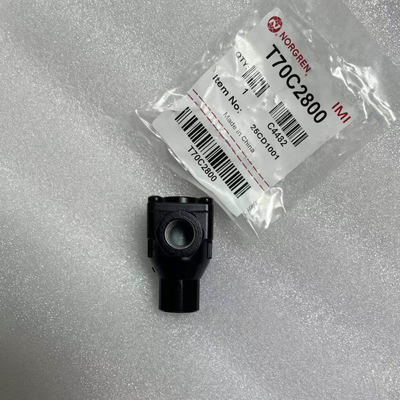

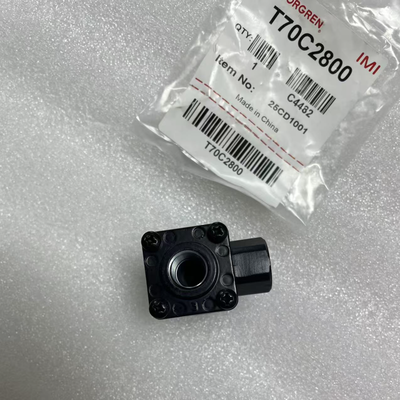

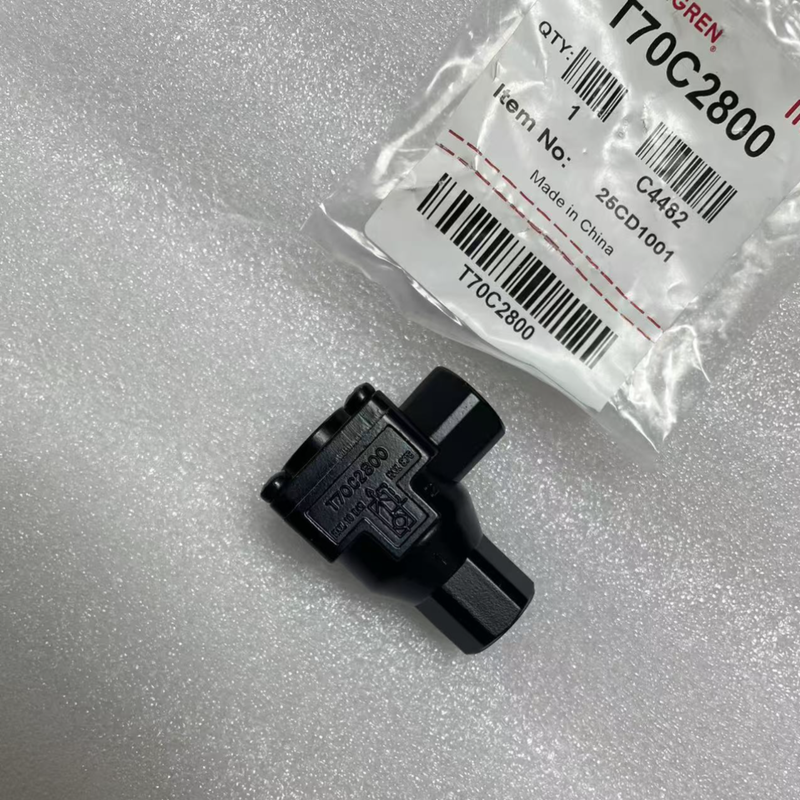

IMI Norgren T70C2800 Pneumatic Quick Exhaust Valve G1/4" Thread For Pneumatic Circuit Acceleration

Product Description:

The NORGREN T70 Series Quick Exhaust Valve is a high-performance inline poppet-type pneumatic valve, specifically engineered for industrial compressed-air systems. Its primary function is to quickly release air directly from pneumatic cylinders and air reservoirs. This design eliminates the need for exhaust air to travel back through control valves, which greatly enhances the operational speed of cylinders, reduces response cycle time, and boosts the overall efficiency of pneumatic systems.

The T70 series is available with both G (BSPP) and NPT thread options and supports various port sizes, including G1/8, G1/4, G3/8, and G1/2. Its compact inline-mount design ensures stable, high-flow performance and robust long-term reliability. Manufactured by IMI Norgren, this valve is extensively used in pneumatic circuits within factory automation worldwide.

Additionally, IMI Norgren provides spare repair kits to facilitate convenient on-site maintenance, helping to extend the service life of the T70 quick exhaust valves. This support ensures minimal downtime and continued performance in demanding industrial environments.

Features:

This product features a direct quick exhaust system designed specifically for air cylinders and air tanks. This design significantly enhances the speed of cylinder movement, ensuring efficient and responsive operation.

Utilizing a poppet-valve structure, it offers a simple and compact inline-mount design that facilitates easy installation. Its straightforward construction contributes to reliable performance and space-saving integration.

It operates effectively within a wide pressure range from 0.5 to 10 bar (7 to 145 psi), providing versatility for various applications. The working medium is filtered compressed air, and the device supports both lubricated and non-lubricated air supplies.

The product boasts a broad temperature tolerance, functioning reliably in environments ranging from -20℃ to +80℃ (-4℉ to +176℉). Its robust housing is made from aluminum and zinc alloy, complemented by NBR nitrile rubber seals that enhance wear resistance and durability.

Multiple threading options are available to accommodate different installation requirements, including ISO-G parallel threads and NPT threads. The product offers a full range of port sizes, from G1/8 to G1/2.

Designed for high flow performance with low pressure loss, this product also includes spare repair kits to support convenient on-site maintenance, ensuring long-term reliability and ease of service.

Technical Parameters:

Applications:

NORGREN T70 quick exhaust valves are extensively utilized in industrial automation pneumatic systems. Their primary function is to speed up the retracting and extending actions of cylinders, thereby enhancing operational efficiency.

These valves find applications across a variety of industries including packaging machinery and printing equipment. They are also commonly integrated into conveyor and material-handling systems, as well as automotive assembly lines and machine tools.

Additionally, the T70 valves are employed in textile machinery and robotic pneumatic actuators. They are suitable for general factory automation tasks, pneumatic fixtures, and clamping equipment. Moreover, their versatility allows use in pneumatic presses, sorting, and processing machinery.

Important Warning: These valves are designed exclusively for industrial compressed-air service. Do NOT exceed the specified pressure and temperature limits. For applications involving other media or special-purpose systems, please consult Norgren technical support.
