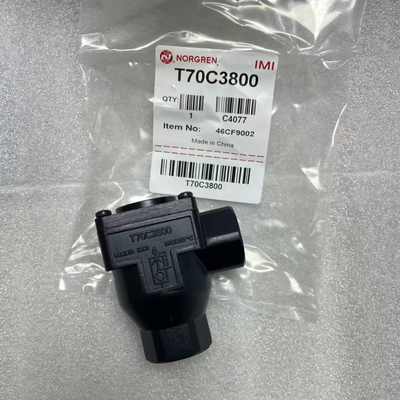

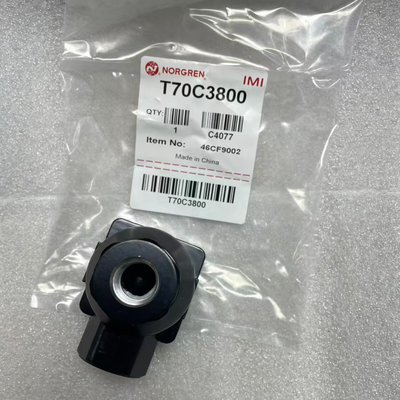

Pneumatic Cylinder Speed Up Valve IMI Norgren T70C3800 G3/8" Quick Exhaust Valve

Product Description:

The NORGREN T70 Series Quick Exhaust Valve is a top-tier inline poppet-type pneumatic valve engineered for use in industrial compressed-air systems. Its primary function is to rapidly expel air directly from pneumatic cylinders and air reservoirs, bypassing the usual return flow through control valves. This efficient design notably enhances the operating speed of cylinders, reduces the response cycle time, and boosts the overall efficiency of pneumatic systems.

The T70 series is available with both G (BSPP) and NPT thread options, accommodating port sizes including G1/8, G1/4, G3/8, and G1/2. Its compact inline-mount construction ensures stable large-flow performance while maintaining long-term reliability in operation. These features make the valve a reliable choice in various pneumatic applications.

Manufactured by IMI Norgren, the T70 series is extensively utilized in factory automation pneumatic circuits around the world. To facilitate maintenance and prolong the service life of the valve, spare repair kits are readily available, allowing for convenient on-site servicing.

Features:

This device is designed to provide direct quick exhaust functionality for air cylinders and air tanks, significantly enhancing the speed of cylinder movement. Its efficient exhaust system ensures faster operation and improved overall performance.

Featuring a poppet-valve structure, the product boasts a simple and compact inline-mount design that makes installation straightforward and hassle-free. This thoughtful engineering allows for easy integration into existing systems.

It operates reliably within a wide pressure range of 0.5 to 10 bar (7 to 145 psi), accommodating various industrial applications. The working medium consists of filtered compressed air, and the device supports both lubricated and non-lubricated air supplies.

The product can withstand a broad temperature spectrum from -20℃ to +80℃ (-4℉ to +176℉), ensuring consistent performance under diverse environmental conditions. Its robust housing, made from aluminium and zinc alloy, combined with NBR nitrile rubber seals, provides excellent wear resistance and durability.

Multiple thread options are available, including ISO-G parallel threads and NPT threads, with a full range of port sizes from G1/8 to G1/2. This versatility enables compatibility with various piping standards and installation requirements.

Additionally, the device offers high flow performance with low pressure loss, optimizing efficiency during operation. Spare repair kits are also available to facilitate convenient field maintenance, extending the product's service life.

Technical Parameters:

Applications:

Support and Services:

Norgren is committed to providing comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice.

We offer detailed product documentation, including datasheets, installation manuals, and wiring diagrams to help you understand and utilize our solenoid valves effectively. Additionally, our engineering experts can provide application support to tailor solutions specific to your operational requirements.

Norgren also provides repair and refurbishment services to extend the lifespan of your solenoid valves, ensuring reliability and cost-effectiveness throughout their service life. For customers requiring custom configurations or integration assistance, we deliver personalized service to meet unique application needs.

To facilitate smooth operations, we recommend regular maintenance checks and adherence to the guidelines outlined in the product manuals. Our support extends to software updates and firmware upgrades where applicable, keeping your solenoid valve systems up to date with the latest enhancements.

Trust Norgren for dependable technical support and service solutions designed to maximize the efficiency and longevity of your solenoid valve installations.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in an anti-static bag and cushioned with foam inserts inside a sturdy corrugated cardboard box. This packaging method helps prevent any damage from shocks, vibrations, or moisture.

For shipping, the products are securely placed in appropriately sized cartons with clear labeling, including product details, handling instructions, and shipping information. Multiple cartons are palletized and shrink-wrapped to maintain stability and facilitate safe transportation.

All shipments comply with international shipping standards, ensuring timely and safe delivery to the customer’s specified location. Tracking information is provided once the order is dispatched to keep customers informed throughout the shipping process.
