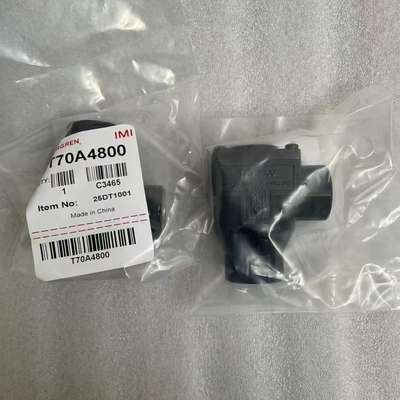

IMI Norgren T70A4800 1/2"NPT Quick Exhaust Valve Pneumatic Directional Valve For Automation Equipment

Product Description:

The NORGREN T70 Series Quick Exhaust Valve is a high-performance, inline poppet-type pneumatic valve specifically engineered for industrial compressed-air systems. Its primary function is to quickly release air directly from pneumatic cylinders and air reservoirs, bypassing the control valves in the exhaust path. This design significantly enhances the operating speed of cylinders, reduces response cycle times, and improves the overall efficiency of pneumatic systems.

This valve is available with both G (BSPP) and NPT thread options, accommodating port sizes such as G1/8, G1/4, G3/8, and G1/2. The T70 series boasts a compact inline-mount construction that ensures stable, large-flow performance alongside long-term reliability in operation. These features make it an excellent choice for various industrial applications requiring efficient and dependable quick exhaust capabilities.

Manufactured by IMI Norgren, the T70 Series is widely implemented in pneumatic circuits within factory automation systems worldwide. To facilitate maintenance and extend the service life of the valve, spare repair kits are readily available, allowing for straightforward on-site repairs and upkeep.

Features:

The device features a direct quick exhaust function for air cylinders and air tanks, which significantly enhances the speed of cylinder movement. This capability ensures more efficient and responsive operation in pneumatic systems.

It is designed with a poppet valve structure that is both simple and compact. The inline-mount design facilitates easy installation, making it convenient to integrate into existing setups without requiring complex adjustments.

The product supports a wide operating pressure range from 0.5 to 10 bar (7 to 145 psi), allowing it to be used reliably in various pressure conditions and applications.

It operates with filtered compressed air as the working medium and is compatible with both lubricated and non-lubricated air supplies. This flexibility accommodates diverse maintenance preferences and operational environments.

The device tolerates broad temperature ranges from -20℃ to +80℃ (-4℉ to +176℉), ensuring stable performance even under extreme thermal conditions.

Constructed with a robust housing made from aluminium and zinc alloy for the body and cover, along with NBR nitrile rubber seals for enhanced wear resistance, the product is built to withstand demanding industrial applications.

Multiple thread options are available, including ISO-G parallel threads and NPT threads. The full range of port sizes from G1/8 to G1/2 provides versatility to fit different plumbing requirements.

It delivers high flow performance with low pressure loss, contributing to overall system efficiency. Additionally, spare repair kits are available to facilitate convenient field maintenance and prolong the product's service life.

Technical Parameters:

Applications:

The NORGREN T70 quick exhaust valves are extensively utilized in industrial automation pneumatic systems. Their main function is to enhance the speed of cylinder retraction and extension, making them ideal for applications requiring rapid actuation.

These valves find wide application across various industries, including packaging machinery and printing equipment. They are also commonly employed in conveyor and material-handling systems, ensuring efficient and swift pneumatic operations.

Additionally, automotive assembly lines and machine tools benefit from these valves for improved automation processes. They are suitable for textile machinery as well as robotic pneumatic actuators, contributing to enhanced performance and reliability.

Beyond these, NORGREN T70 valves are used in general factory automation setups, pneumatic fixtures, and clamping equipment. Their versatility extends to pneumatic presses, sorting machines, and processing machinery, supporting a wide range of industrial applications.

Important Warning: These valves are intended solely for industrial compressed-air service. Do NOT exceed the specified pressure and temperature limits. For usage involving other media or specialized systems, please consult Norgren technical support for guidance.
