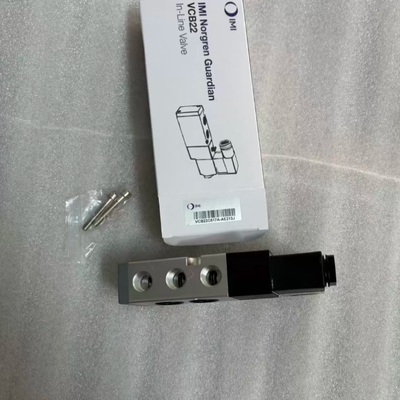

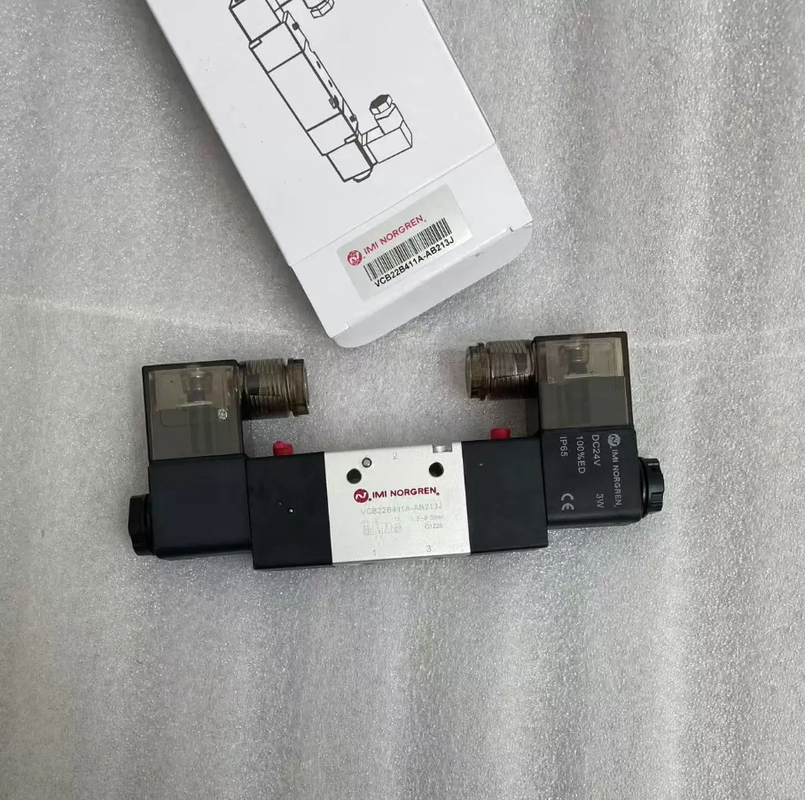

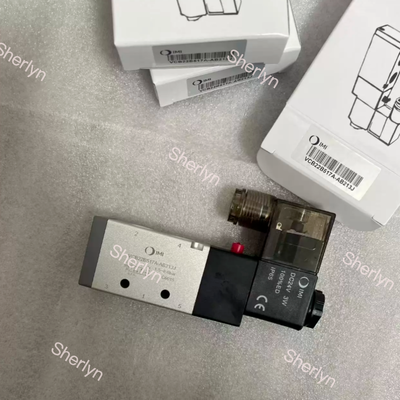

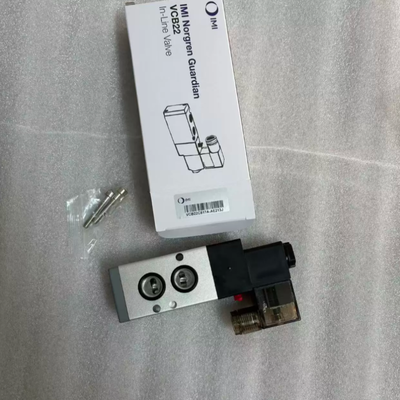

Spool Type Pneumatic Directional Valve VCB22B411A-AB213J Norgren G1/4 24VDC, Spare Valve for Packaging Machinery

Product Description:

The IMI Norgren VCB series, also known as the Guardian series, consists of pilot-operated spool solenoid valves. This series primarily includes two models: the compact VCB10 and the high-flow VCB22, catering to different flow requirements.

These valves support various configurations, including 3/2, 5/2, and 5/3 valve functions, allowing for versatile pneumatic control options. The operating medium is compressed air filtered to 40 micrometers, which can be either lubricated or non-lubricated depending on the application's needs.

Installation flexibility is a key feature, with options such as in-line porting, sub-base mounting, and NAMUR-compliant versions available. This makes the VCB series suitable for a wide range of setups and integration requirements.

Specifically designed for cylinder actuators, these valves provide a reliable and cost-effective solution for general pneumatic control circuits. Their robust design ensures consistent performance in various industrial environments.

Features:

The product features a high flow capacity with a broad range of port sizes. Its flow rate varies between 245 and 3350 liters per minute, allowing for versatile applications across different systems.

It offers multiple valve functions to meet various operational needs. These include solenoid with spring return, double solenoid configurations, as well as 5/3 valve styles with either closed or exhaust center positions. Such options provide flexibility and control in pneumatic operations.

Additionally, the valve is available with an optional NAMUR interface. This design enables direct compatibility with NAMUR pneumatic actuators, facilitating easier installation and integration into existing setups.

Technical Parameters:

Applications:

The VCB series solenoid valves serve as essential directional control components within pneumatic systems. These valves play a crucial role in operating various pneumatic devices, including cylinders, pneumatic grippers, stoppers, and pneumatic actuators.

They are widely utilized in numerous applications such as automated production lines, packaging machinery, and textile machines. Additionally, they are found in woodworking equipment, injection molding auxiliary devices, and material conveying systems.

Beyond these uses, the VCB series is also employed in automotive jigs, food processing machinery, general process valve control, new energy equipment, and warehouse sorting systems, demonstrating their versatility and reliability in diverse industrial settings.

Support and Services:

Norgren offers comprehensive Product Technical Support and Services for our Solenoid Valve range to ensure optimal performance and customer satisfaction. Our expert team provides assistance with product selection, installation guidance, troubleshooting, and maintenance recommendations. We also offer detailed technical documentation, including datasheets, wiring diagrams, and operation manuals to support your application needs. For complex requirements, Norgren’s engineering team can provide customized solutions and modifications. Additionally, we supply genuine replacement parts and repair services to extend the lifespan of your solenoid valves. Our commitment is to deliver reliable, efficient, and timely support throughout the lifecycle of your Norgren Solenoid Valve.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in anti-static packaging to prevent damage from electrostatic discharge. The product is then placed in a sturdy, custom-fitted box with cushioning materials to absorb shocks and vibrations.

For shipping, the packaged solenoid valves are labeled clearly with handling instructions and shipped using reliable carriers to ensure timely and safe delivery. Fragile handling is enforced to maintain product integrity until it reaches the customer.
