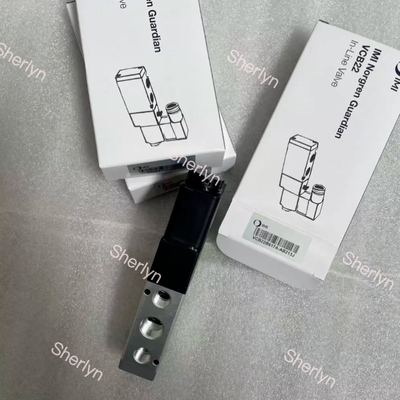

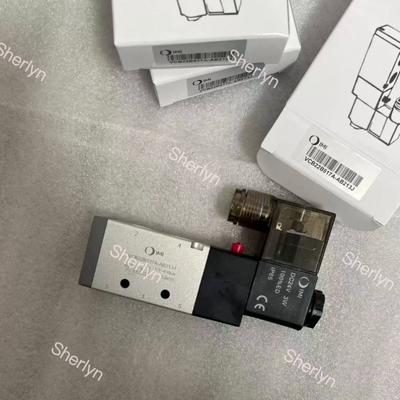

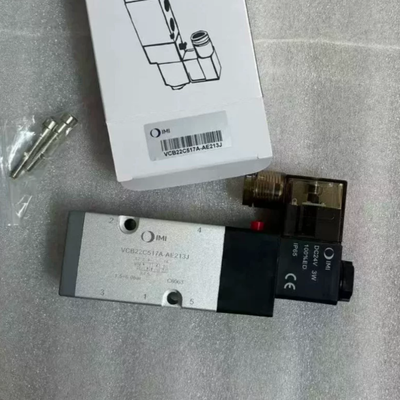

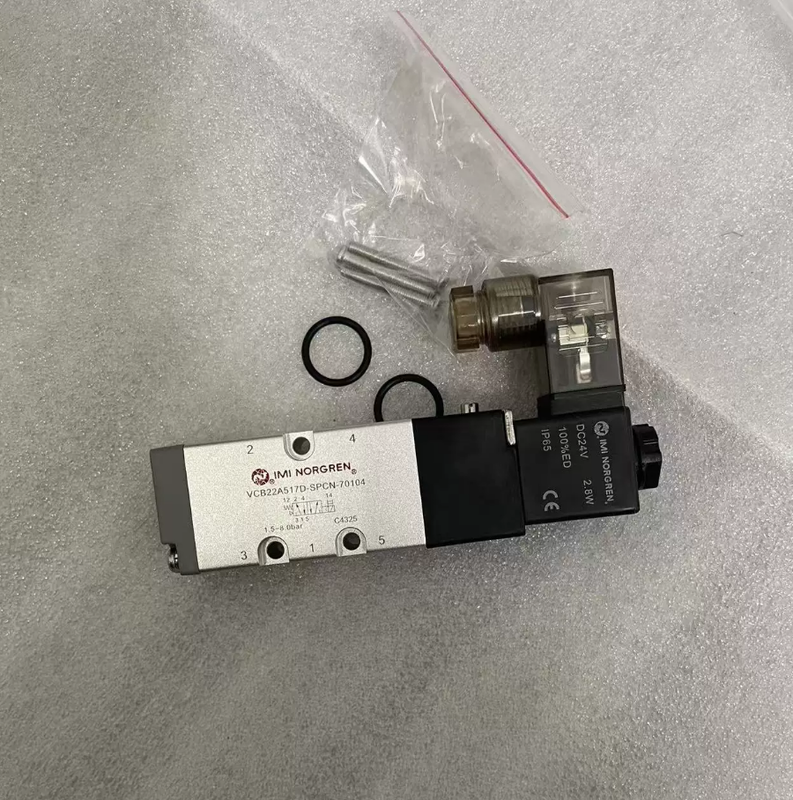

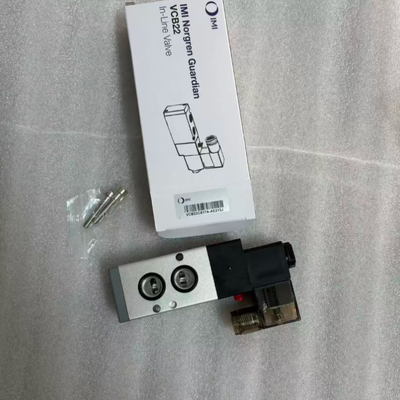

Pneumatic Gripper & Mini Cylinder Control Norgren VCB22A517D-SPCN-70104 Solenoid Valve

Product Description:

The IMI Norgren VCB series, also known as the Guardian series, consists of pilot-operated spool solenoid valves. This series primarily features two main models: the compact VCB10 and the high-flow VCB22. These valves are engineered to meet various operational needs with multiple valve functions available, including 3/2, 5/2, and 5/3 configurations.

The valves are designed to work with 40μm filtered compressed air as the media, and they can operate effectively with either lubricated or non-lubricated air. Installation options are versatile, offering in-line port configurations, sub-base mounting, and versions compliant with NAMUR standards to suit different application requirements.

Specifically designed for use with cylinder actuators, the IMI Norgren VCB series provides a reliable and cost-efficient solution for general pneumatic control circuits. Its robust construction and flexible functionalities make it an ideal choice for various industrial applications.

Features:

This valve offers a high flow capacity with a broad range of port sizes available. The flow rate it supports varies from 245 to 3350 liters per minute, accommodating various application needs.

It features multiple valve functions including solenoid with spring return, double solenoid operation, and configurations such as 5/3 closed center or exhaust center. These options provide flexibility for different control requirements.

Additionally, the valve is equipped with an optional NAMUR interface, allowing it to be directly fitted to NAMUR pneumatic actuators for seamless integration in automated systems.

Technical Parameters:

This Norgren solenoid valve features a Norgren low cracking pressure check valve and incorporates the reliable Norgren NPT non‑return valve design. It is constructed with a Norgren aluminium pneumatic non‑return valve body, ensuring durability and efficient performance in pneumatic applications.

Applications:

The VCB series solenoid valves serve as essential directional control components within pneumatic systems. They play a critical role in operating various pneumatic devices such as cylinders, pneumatic grippers, stoppers, and pneumatic actuators.

These valves are widely utilized in numerous applications, including automated production lines, packaging machinery, textile machines, and woodworking equipment. Additionally, they are integral to injection molding auxiliary equipment, material conveying systems, automotive jigs, and food processing machinery.

Beyond these uses, the VCB series solenoid valves are also employed in general process valve control, new energy equipment, and warehouse sorting systems, showcasing their versatility across multiple industries.

Support and Services:

Norgren offers comprehensive Product Technical Support and Services for its Solenoid Valve range to ensure optimal performance and customer satisfaction. Our expert team provides assistance with product selection, installation guidance, troubleshooting, and maintenance advice tailored to your specific application requirements. We also offer detailed product documentation, including datasheets, wiring diagrams, and operation manuals to support efficient system integration. For complex or customized solutions, Norgren’s engineering support is available to help design and implement the ideal solenoid valve configuration. Additionally, we provide warranty services and repair options to maintain the reliability and longevity of your equipment. Trust Norgren for dedicated technical support and services that enhance the functionality and durability of your solenoid valve installations.

Packing and Shipping:

The Norgren Solenoid Valve is securely packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static material and placed in a custom-fitted foam insert to prevent movement and damage. The packaged product is then placed inside a sturdy, corrugated cardboard box labeled with handling instructions and product information.

For shipping, we utilize reliable carriers that offer tracking and insurance options to guarantee safe and timely delivery. The packaging is designed to withstand standard shipping conditions, protecting the solenoid valve from moisture, dust, and impact. Special packaging requests can be accommodated upon order.
