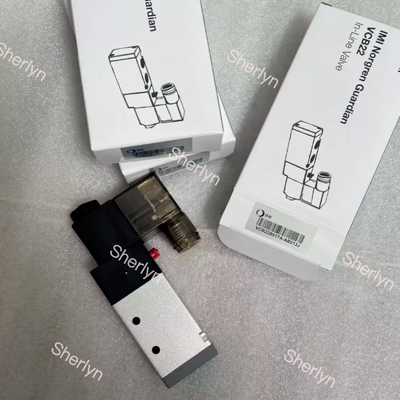

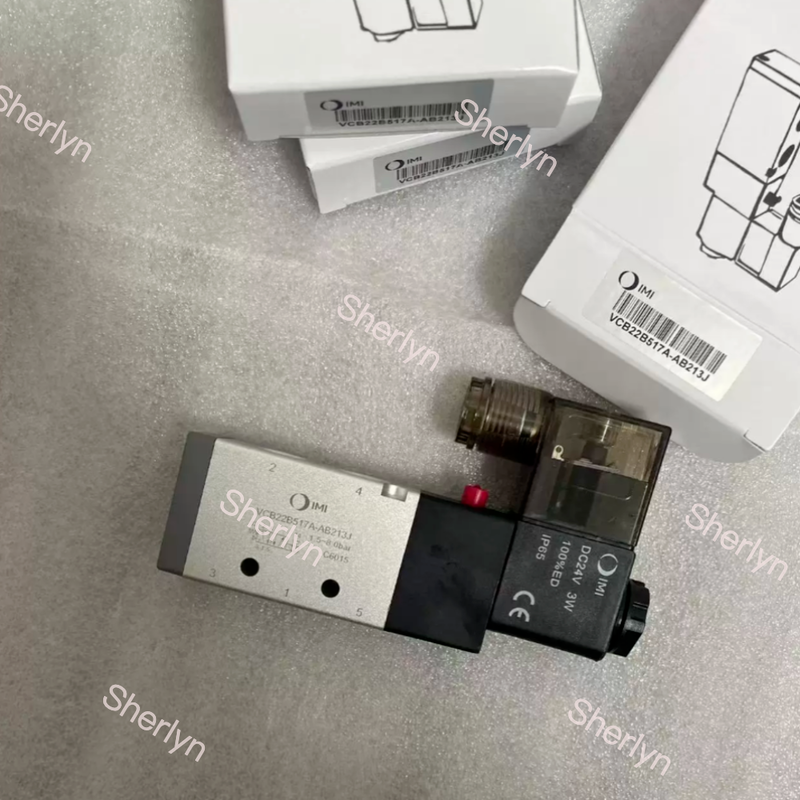

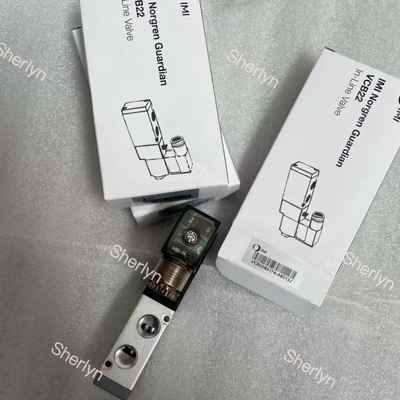

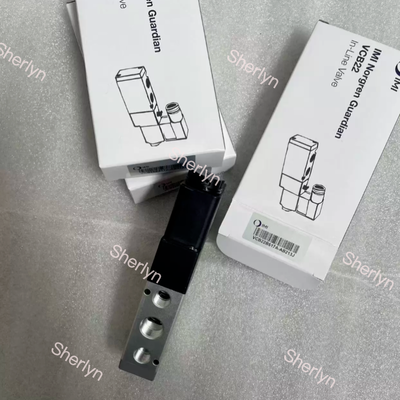

IMI Norgren VCB22C517A-AE213J Solenoid Valve G1/4 24VDC for Cylinder & Packaging Line Control

Product Description:

The IMI Norgren VCB series, also known as the Guardian series, features pilot-operated spool solenoid valves. This series primarily consists of two models: the compact VCB10 and the high-flow VCB22.

These valves offer a variety of functional configurations, including 3/2, 5/2, and 5/3 valve types. They operate using compressed air that has been filtered through a 40μm filter, and can work with either lubricated or non-lubricated media.

Installation options are versatile, with choices such as in-line port connections, sub-base mounting, and a NAMUR version to suit different application needs. The VCB series valves are specifically designed for use with cylinder actuators.

Overall, the IMI Norgren VCB series provides a reliable and cost-effective solution for general pneumatic control circuits, ensuring efficient and dependable performance.

Features:

The valve features a high flow capacity and offers a wide range of port sizes, accommodating flow rates from 245 to 3350 liters per minute. This versatility makes it suitable for various industrial applications requiring efficient fluid control.

It supports multiple valve functions, including solenoid with spring return, double solenoid, and configurations such as 5/3 closed center or exhaust center. These options provide flexibility to meet different operational demands.

Additionally, the valve comes with an optional NAMUR interface, allowing direct compatibility with NAMUR pneumatic actuators. This feature simplifies installation and ensures seamless integration within existing pneumatic systems.

Technical Parameters:

Applications:

The VCB series solenoid valves serve as essential directional control elements within pneumatic systems. These valves are designed to operate various pneumatic devices, including cylinders, pneumatic grippers, stoppers, and pneumatic actuators, ensuring precise control and efficient functionality.

These solenoid valves find widespread use across numerous industries. They are commonly employed in automated production lines, packaging machinery, and textile machines. Additionally, they play a vital role in woodworking equipment, injection molding auxiliary devices, and material conveying systems.

Furthermore, the VCB series is utilized in automotive jigs, food processing machinery, and general process valve control applications. They are also integral components in new energy equipment and warehouse sorting systems, highlighting their versatility and broad applicability in modern industrial environments.

Support and Services:

Norgren is committed to providing exceptional technical support and services for its Solenoid Valve products. Our team of experts is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice to ensure optimal performance and reliability. Comprehensive documentation, including datasheets, installation manuals, and application notes, is readily accessible to support your specific requirements. Additionally, Norgren offers custom engineering solutions and training programs to help maximize the efficiency and lifespan of your solenoid valves. For any technical inquiries or service needs, please refer to Norgren’s official resources and support channels.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transportation. Each valve is individually sealed in anti-static, corrosion-resistant packaging to prevent damage from moisture and contaminants. The product is then placed in a sturdy, cushioned box designed to absorb shocks and vibrations.

For shipping, Norgren Solenoid Valves are packed in durable outer cartons with clear labeling that includes product details, handling instructions, and safety warnings. The packaging is optimized to minimize movement inside the box, reducing the risk of damage. Multiple units are securely arranged to maximize space efficiency while maintaining product integrity.

Norgren partners with reliable carriers to provide timely and safe delivery, offering tracking options and ensuring compliance with international shipping regulations. Special handling services are available upon request to accommodate specific customer requirements.
