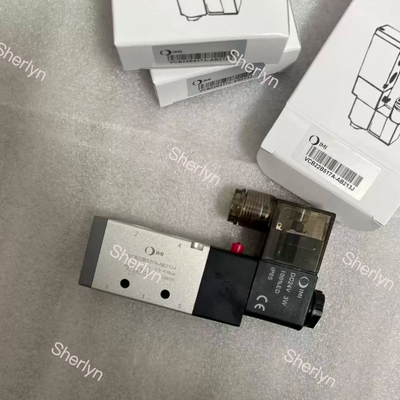

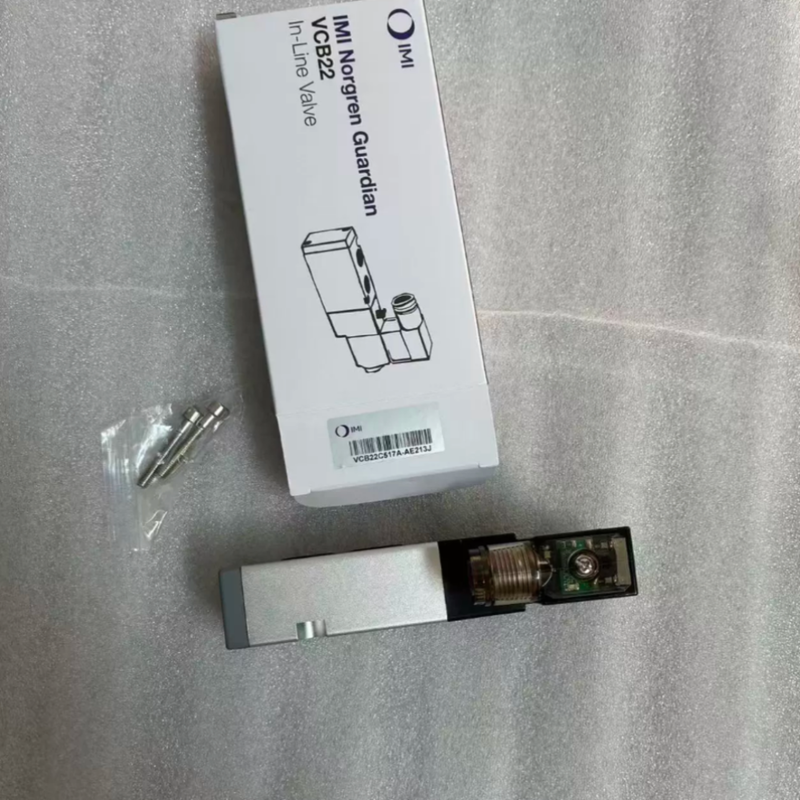

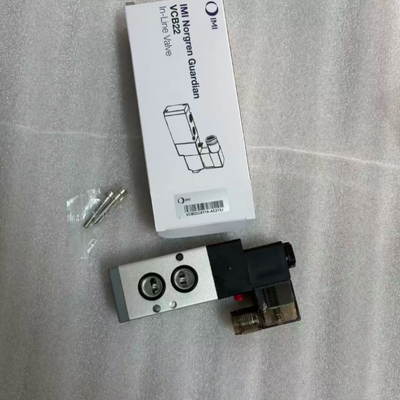

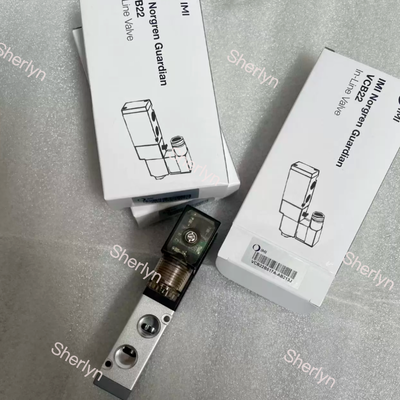

VCB22D517A-AD213J | IMI Norgren High Flow Solenoid Valve G1/2 24VDC Pneumatic Control

Product Description:

The IMI Norgren VCB series, also known as the Guardian series, comprises pilot-operated spool solenoid valves. This series primarily features two main models: the compact VCB10 and the high-flow VCB22.

These valves offer various functional configurations, including 3/2, 5/2, and 5/3 valve types. They are designed to operate with compressed air that is filtered to 40 microns, and can be used with either lubricated or non-lubricated media.

Installation options are flexible, with in-line port designs, sub-base mounting, and NAMUR versions available to suit different application requirements. The VCB series valves are specifically engineered for use with cylinder actuators.

Known for their reliability and cost-effectiveness, these valves are an excellent choice for general pneumatic control circuits, delivering performance and efficiency in a wide range of industrial settings.

Features:

This valve offers a high flow capacity, accommodating a wide range of port sizes. Its flow rate ranges from 245 to 3350 liters per minute, ensuring efficient performance across various applications.

It supports multiple valve functions, including solenoid with spring return, double solenoid, as well as 5/3 configurations featuring closed or exhaust center options. These versatile functionalities make it suitable for diverse control requirements.

Additionally, an optional NAMUR interface is available, allowing direct mounting to NAMUR pneumatic actuators. This feature simplifies installation and enhances compatibility with standardized actuator systems.

Technical Parameters:

Applications:

The VCB series solenoid valves serve as essential directional control elements within pneumatic systems. They are designed to operate various pneumatic devices such as cylinders, grippers, stoppers, and actuators, ensuring precise and efficient control.

These valves find widespread use across numerous industries and applications. Common areas include automated production lines, packaging machinery, and textile equipment. Additionally, they play a critical role in woodworking machinery and injection molding auxiliary devices.

Moreover, the VCB series is utilized in material handling and conveying systems, automotive fixture applications, food processing machinery, and general valve control tasks. Their versatility also extends to new energy equipment and warehouse sorting systems, making them a reliable choice in modern industrial automation.

Support and Services:

Norgren Solenoid Valves are designed to provide reliable and efficient control of fluid and gas flow in a wide range of industrial applications. Our solenoid valves are built with high-quality materials to ensure durability and long service life under various operating conditions.

Technical support for Norgren Solenoid Valves includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips. Our experts help ensure that you choose the right valve for your specific application requirements, optimizing performance and minimizing downtime.

We offer comprehensive services including product customization, repair, and replacement parts to keep your systems running smoothly. Detailed product documentation, including datasheets, wiring diagrams, and installation manuals, are available to support your technical needs.

For any technical inquiries or service requests, our support team is equipped to provide prompt and knowledgeable assistance to help you resolve issues quickly and efficiently.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in anti-static, moisture-resistant packaging to prevent damage from environmental factors. The product is then securely placed in a custom-fitted box with cushioning materials to absorb shocks and vibrations.

For shipping, Norgren solenoid valves are handled with care and shipped using reliable carriers to ensure timely and safe delivery. Tracking information is provided upon dispatch, and the packaging is designed to comply with international shipping standards to prevent any damage during transport.
