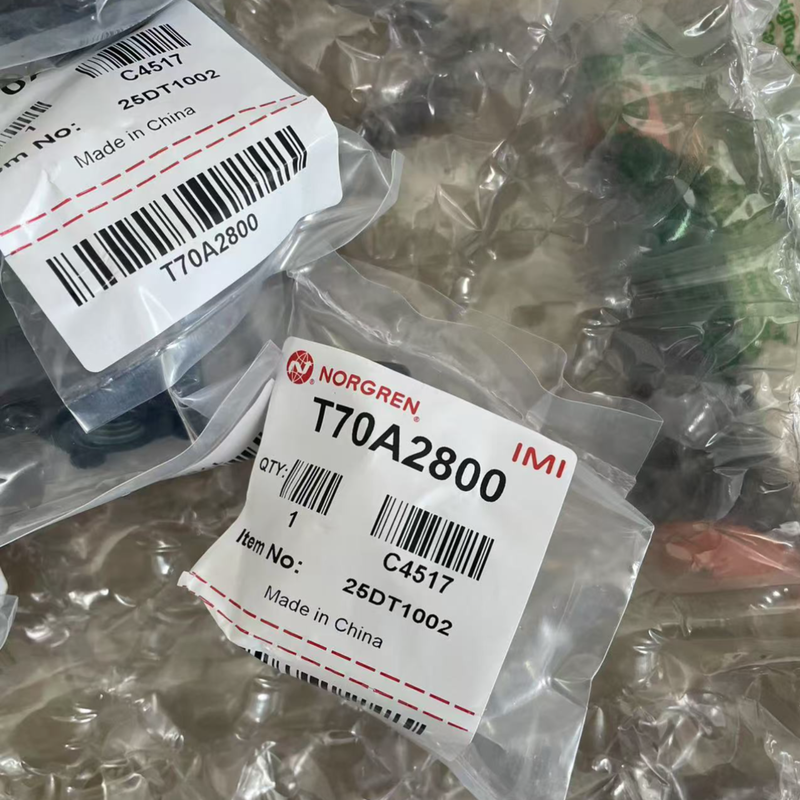

Quick Exhaust Valve For Pneumatic System IMI Norgren T70A2800 1/4"NPT Thread

Product Description:

The NORGREN T70 Series Quick Exhaust Valve is a high-performance, inline poppet-type pneumatic valve specifically engineered for industrial compressed-air systems. It is designed to swiftly release air directly from pneumatic cylinders and air reservoirs, bypassing the return of exhaust air through control valves. This functionality greatly enhances the speed of cylinder operations, reduces response cycle times, and boosts the overall efficiency of pneumatic systems.

The T70 series is available with both G (BSPP) and NPT threading options, accommodating port sizes such as G1/8, G1/4, G3/8, and G1/2. Featuring a compact inline mount design, this valve ensures stable large-flow performance and reliable long-term operation.

Manufactured by IMI Norgren, the T70 valve series is extensively utilized in factory automation pneumatic circuits worldwide. For convenience and durability, spare repair kits are also provided, enabling easy maintenance on-site and helping to prolong the service life of the valves.

Features:

This product features a direct quick exhaust system designed specifically for air cylinders and air tanks, which significantly enhances the speed of cylinder movements. By enabling rapid air release, it ensures more efficient and responsive operations.

Its poppet-valve structure combined with a simple and compact inline-mount design allows for effortless installation. This streamlined design not only saves space but also facilitates easy integration into existing pneumatic setups.

The device operates effectively within a wide pressure range of 0.5 to 10 bar (7 to 145 psi). It is compatible with filtered compressed air and supports both lubricated and non-lubricated air supplies, offering great flexibility for various applications.

Designed to withstand harsh environments, it tolerates temperatures from -20℃ to +80℃ (-4℉ to +176℉). Its robust housing, made from aluminium and zinc alloy for the body and cover, is complemented by NBR nitrile rubber seals that provide exceptional wear resistance.

Multiple threading options are available, including ISO-G parallel threads and NPT threads, accommodating a full range of port sizes from G1/8 to G1/2. This versatility ensures compatibility with diverse pneumatic systems.

Additionally, the product delivers high flow performance with minimal pressure loss. For ongoing reliability, spare repair kits are readily available to support easy field maintenance, helping to maintain optimal functionality over time.

Technical Parameters:

Applications:

The NORGREN T70 quick exhaust valves are extensively utilized in industrial automation pneumatic systems. Their primary function is to speed up the cylinder's retracting and extending actions, enhancing overall system efficiency.

These valves find applications in a variety of industries and equipment, including packaging machinery and printing equipment. They are also commonly implemented in conveyor and material-handling systems to optimize operation speed.

Furthermore, the automotive assembly lines and machine tools benefit from the reliable performance of the T70 valves. Textile machinery and robotic pneumatic actuators also frequently incorporate these components to improve response times.

In addition to these, general factory automation processes, pneumatic fixtures, clamping equipment, pneumatic presses, sorting, and processing machinery widely use NORGREN T70 quick exhaust valves to boost productivity and ensure smooth operation.

Important Warning: These valves are intended exclusively for use with industrial compressed-air service. It is critical not to exceed the specified pressure and temperature limits. For applications involving different media or special-purpose systems, please seek advice from Norgren technical support.
