Product Description:
The SMC CQ2 Series seal kits are authentic replacement components specifically designed for the maintenance and refurbishment of CQ2A, CDQ2A, CQ2B, and CDQ2B series compact pneumatic cylinders. These kits ensure that your cylinders continue to perform efficiently and reliably over time.

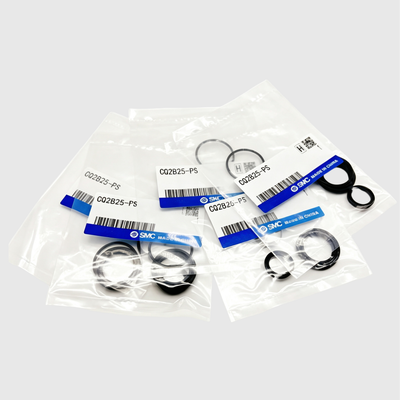

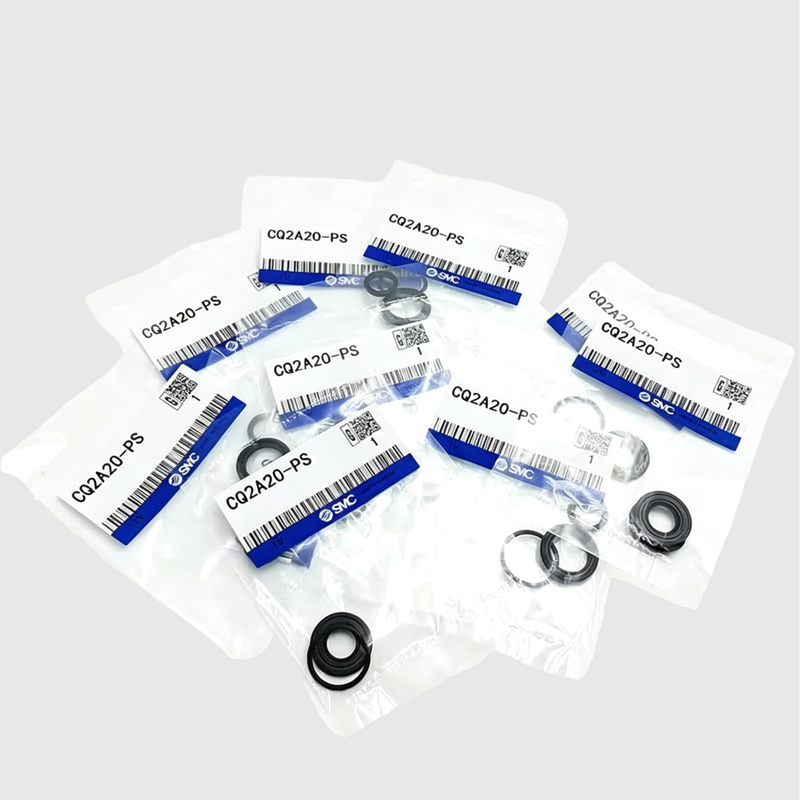

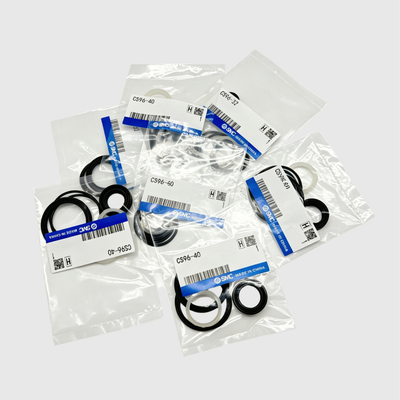

Each seal kit includes a comprehensive set of essential sealing parts, such as the piston seal, rod seal, and tube gasket. All these components are crafted from high-quality nitrile rubber (NBR), which guarantees durability and dependable sealing performance throughout the service life.
Available for bore sizes ranging from 12mm up to 100mm, each seal kit is precisely matched to the cylinder's specific bore dimension. Utilizing these kits helps restore the cylinder's sealing integrity, effectively preventing air leaks and preserving optimum cylinder force and response speed.
These seal kits are compatible with both the standard CQ2 series compact cylinders and the anti-lateral load variants. By using these replacements, you can achieve a cost-effective solution without the need to replace the entire cylinder assembly.
Features:
Complete Seal Kit for Cylinder Overhaul
This comprehensive seal kit contains everything needed for a full cylinder refurbishment, including a piston seal, rod seal, and tube gasket. It is designed to ensure your cylinder operates smoothly and efficiently after maintenance.
Authentic SMC Quality and Precise Fit
Manufactured in strict accordance with SMC's exact specifications, this seal kit guarantees a perfect fit and dependable sealing performance, maintaining the integrity of your pneumatic systems.
Durable NBR Seal Material
The seals are made from high-grade nitrile rubber (NBR), known for its outstanding resistance to wear, compression set, and compatibility with industrial air media, ensuring long-lasting functionality.
Extensive Bore Size Range
Available in various bore sizes to meet different requirements, the seal kit covers bore diameters of 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, making it versatile for numerous applications.
Compatible with Multiple Cylinder Models
This seal kit is suitable for several cylinder types, including CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, and other models within the CQ2 family, providing flexibility for maintenance operations.
Restores and Enhances Cylinder Performance
By replacing worn-out seals, you can restore the cylinder’s original force, speed, and cushioning capabilities, ensuring optimal performance and extending the service life of your equipment.
Minimizes Downtime and Maintenance Costs
The quick and straightforward seal replacement process reduces production downtime and prevents the need for expensive cylinder replacements, resulting in significant cost savings.
Cost-Effective Solution
Offering reliable sealing efficiency at a fraction of the cost of purchasing a new cylinder, this seal kit provides an economical maintenance alternative without compromising quality.
Environmental Compliance and Temperature Range
Fully RoHS compliant, the seal kit meets relevant environmental and safety standards. It is engineered to operate effectively within a temperature range from -10°C up to +70°C.
Technical Parameters:
| Seal Material | NBR |
| Kit Contents | Piston Seal, Rod Seal, Tube Gasket |
| Operating Temperature | -10°C To +70°C |
| Brand | SMC |
| Series | CQ2 |
| Product Type | Cylinder Seal Kit / Repair Kit |
| Bore Sizes Available | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Mm |
| Compatible Cylinder Series | CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, CQ2□S |
Applications:
Factory Automation
Maintenance of compact pneumatic cylinders is essential in automated production lines to ensure smooth and efficient operation. Regular servicing helps in preventing downtime and maintaining high productivity.
Material Handling
Cylinders used in conveyors, pick-and-place units, and various handling systems often require repair and upkeep to maintain optimal performance and reliability in material transport processes.
Packaging Machinery
In packaging and filling equipment, seals of the pneumatic cylinders need to be replaced routinely. Proper seal maintenance guarantees the machinery operates without leaks, ensuring consistent packaging quality.
Electronic Component Manufacturing
Precision assembly equipment in electronic component manufacturing relies on well-maintained cylinders. Regular cylinder maintenance contributes to accuracy and repeatability in the assembly process.
Automotive Assembly
Compact cylinders found in assembly tools and testing fixtures require timely repairs to maintain their functionality. This is crucial for achieving high standards in automotive production lines.
Food and Beverage Processing
In food and beverage processing, pneumatic cylinders play a vital role in processing and packaging lines. Proper maintenance ensures hygienic operation and minimizes the risk of line stoppages.
General Pneumatics
For any application where dependable compact cylinder sealing and performance restoration are needed, regular maintenance and repair practices are indispensable to prolong equipment life and efficiency.
