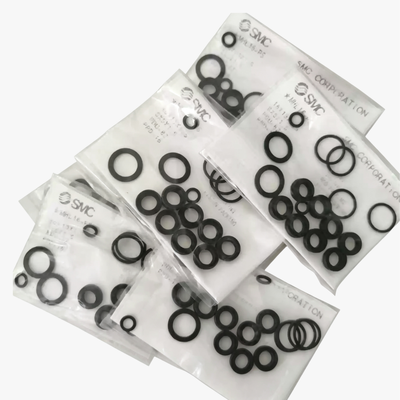

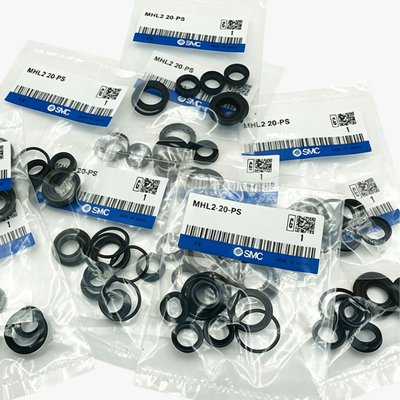

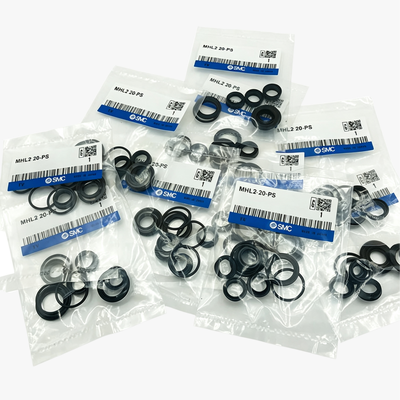

SMC MHL2 Series Pneumatic Finger Rebuild Kit with NBR Material for 10mm to 40mm Bore Sizes and Double Piston Mechanism

Product Description:

These air gripper seal kits are precision-engineered replacement sets specifically designed for the maintenance and overhaul of MHL2 series parallel style wide opening pneumatic grippers. They are available for bore sizes ranging from 10mm to 40mm. Each kit includes all the essential sealing components needed to fully rebuild the gripper, such as the gasket, piston seal, and rod seal.

The seals are crafted from high-quality nitrile rubber (NBR), which provides excellent resistance against wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The MHL2 series grippers incorporate a double piston mechanism, delivering strong gripping force in a compact form factor. This design makes them ideal for handling workpieces with significant dimensional variations.

By regularly replacing the seals using these kits, users can restore optimal gripper performance, prevent air leakage, and significantly extend the service life of existing actuators—all at a fraction of the cost compared to full replacements. It is important to note that the seal kit does not include a grease pack; this must be purchased separately. The recommended grease pack is identified by part number GR-S-010 and comes in a 10g size.

Features:

This complete seal kit includes all necessary components for a full gripper rebuild, featuring a gasket, piston seal, and rod seal. It is designed to restore optimal performance and extend the lifespan of your gripper.

The seal kit is available for multiple bore sizes, including 10mm, 16mm, 20mm, 25mm, 32mm, and 40mm, ensuring compatibility with various applications and gripper models.

Made from high-quality NBR (nitrile rubber), these seals provide excellent oil resistance and superior wear resistance, contributing to reliable and long-lasting operation in demanding environments.

Specifically compatible with the MHL2 series of parallel style wide opening pneumatic grippers, this kit helps to restore gripping force and seal integrity by effectively eliminating air leakage.

As a cost-effective alternative to replacing the entire gripper, this seal kit allows you to renew your actuator’s sealing capabilities easily, thereby extending its service life with minimal downtime.

Installation is quick and straightforward, requiring only standard tools, making it suitable for maintenance in various settings without specialized equipment.

The seals operate effectively within a temperature range from -10°C to +60°C, and the double acting mechanism ensures reliable gripping performance in both directions.

Each bore size is assigned a unique kit number, simplifying inventory management and ensuring you always have the correct parts on hand.

Additionally, a separate grease pack (GR-S-010, 10g) is available to complement the seal kit, providing necessary lubrication for optimal seal performance.

Technical Parameters:

Applications:

Customization:

Introducing the SMC Pulse Valve Diaphragm, model number MHL2 10-PS, a high-quality pneumatic solenoid valve membrane designed for optimal performance. Manufactured in China and CE certified, this solenoid valve sealing diaphragm ensures reliable sealing and durability in various applications.

Our product customization services allow you to choose from multiple bore sizes including 10mm, 16mm, 20mm, 25mm, 32mm, and 40mm to perfectly fit your requirements. The diaphragm is made with premium NBR seal material, operating efficiently within a temperature range of -10°C to +60°C.

The kit contents include essential components such as gasket, piston seal, and rod seal, making it a comprehensive seal kit / repair kit solution suitable for ASCO series 210 diaphragm replacements and maintenance.

We offer flexible payment terms including T/T, Western Union, and PayPal, with a minimum order quantity of just 1 piece. Pricing is negotiable to suit your budget, and products are securely packaged in cartons for safe delivery.

With a supply ability of 5000 pieces per month and a delivery time ranging from 1 to 7 work days after payment, we ensure timely fulfillment to support your operational needs.

Choose SMC for your pulse valve diaphragm needs and benefit from customized solutions tailored to enhance the performance of your pneumatic systems with reliable solenoid valve sealing diaphragms.

Support and Services:

Our Pulse Valve Diaphragm is designed to ensure optimal performance and reliability in your pulse valve systems. For technical support, we provide detailed installation guides, troubleshooting tips, and maintenance instructions to help you achieve the best results.

Our expert technical team is available to assist with product selection, system integration, and any operational challenges you may encounter. We offer comprehensive services including product testing, custom modifications, and on-site support to meet your specific application needs.

Regular maintenance of the Pulse Valve Diaphragm is essential for prolonging its service life. We recommend routine inspections and timely replacement of the diaphragm to prevent system downtime and maintain efficient pulse valve operation.

For optimal service, we provide a range of spare parts and accessories compatible with the Pulse Valve Diaphragm, ensuring seamless replacements and upgrades. Our commitment is to deliver high-quality support and services that enhance the performance and durability of your pulse valve systems.
