Product Description:

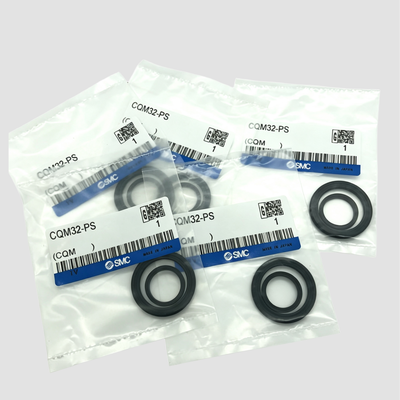

These guide rod cylinder seal kits are precision-engineered replacement sets specifically designed for the maintenance and complete overhaul of CQMB series compact guided pneumatic cylinders. Suitable for bore sizes ranging from 12mm to 63mm, each kit includes all essential sealing components necessary for a full cylinder rebuild: the piston seal, rod seal, and tube gasket.
Manufactured from premium-quality NBR (nitrile rubber), the seals provide excellent resistance to wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The CQMB series compact guide cylinders incorporate an integrated guide rod and plate design, delivering exceptional non-rotating accuracy within ±0.2° and lateral load resistance that is four times greater than standard CQ2K cylinders. This makes them an ideal choice for precision assembly as well as pick and place operations.
By regularly replacing seals using these kits, users can restore the cylinder’s optimal performance, prevent air leakage, and significantly extend the service life of existing actuators, all while saving on the cost compared to buying new cylinders. Please note that the seal kit does not include a grease pack, which must be purchased separately; the grease pack part number is GR-S-010 and contains 10g of grease.
Features:
Complete Seal Kit for Full Cylinder Rebuild

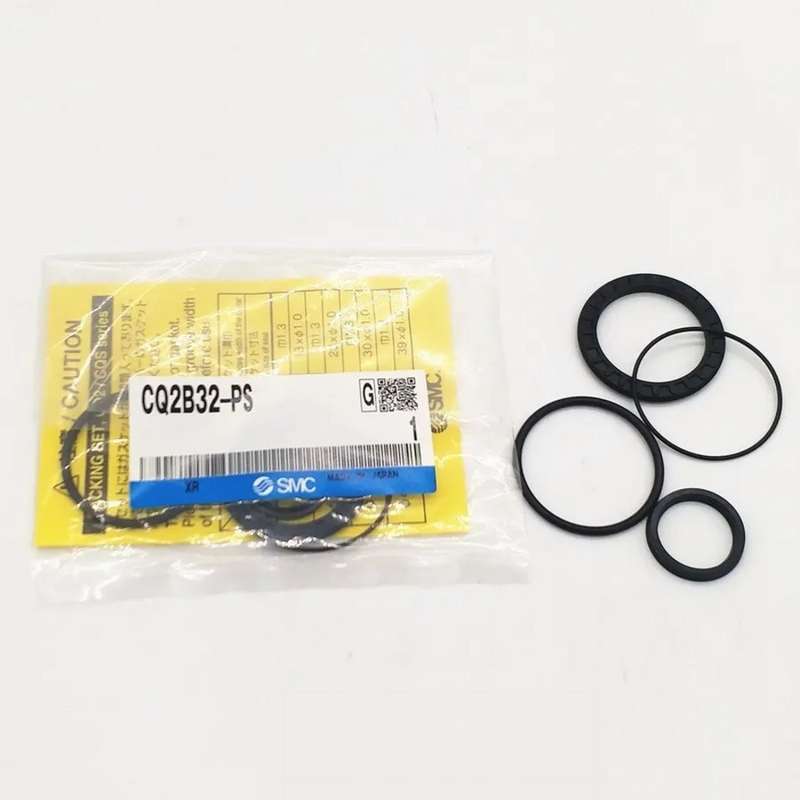

Each complete seal kit contains all the essential components needed for a thorough cylinder overhaul. This includes a piston seal, rod seal, and tube gasket, providing everything required to restore your cylinder’s performance effectively.
Wide Range of Bore Sizes
Our seal kits are available for a variety of bore sizes, accommodating 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm cylinders. This broad selection ensures compatibility with numerous applications and setups.
Durable High-Quality NBR Seals
The seals are crafted from superior nitrile rubber (NBR), known for its exceptional resistance to oil and wear. This material choice guarantees long-lasting performance even in demanding operating conditions.
Designed Specifically for CQMB Series Cylinders
These kits are engineered to fit CQMB compact guide rod cylinders, which feature built-in guide rods. This compatibility makes them an ideal solution for maintaining the performance and reliability of CQMB series actuators.
Restores Original Cylinder Performance
By replacing worn or damaged seals, the kit eliminates air leakage, which helps to restore the cylinder’s original force output and operational speed. This ensures your equipment functions as efficiently as when it was new.
Maintains Non-Rotating Accuracy
The seal kits support cylinders that provide a non-rotating accuracy of ±0.2°, allowing for precise movements where rotational play is minimal or unacceptable.
High Resistance to Lateral Loads
Suitable for cylinders that endure lateral loads up to four times greater than those of the CQ2K series, these seals help maintain durability and stability even under significant stress.
Cost-Effective Maintenance Solution
Purchasing this seal kit represents a fraction of the cost of a new cylinder, making it an economical option to extend the lifespan of your actuator while maintaining optimal performance.
Wide Operating Temperature Range
The seals perform reliably within a temperature range from -10°C to +70°C, accommodating various environments and operational conditions.
Streamlined Inventory Management
With only one kit number required per bore size, managing stock becomes simpler and more efficient, reducing complexity in your maintenance operations.
Optional Grease Pack Available
For proper lubrication during installation, a separate grease pack (GR-S-010, 10g) is available, ensuring smooth assembly and extended seal life.
Technical Parameters:
| Product Type |
Seal Kit / Repair Kit |
| Series |
CQMB |
| Operating Temperature Range |
-10°C To +70°C |
| Seal Material |
NBR |
| Kit Contents |
Piston Seal, Rod Seal, Tube Gasket |
| Bore Sizes |
12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm |
| Description |
Industrial valve diaphragm repair part, Pneumatic solenoid valve membrane, Industrial valve diaphragm repair part |
Applications:
Maintenance and Repair of Guided Cylinders Across Various Industries
Pick and Place Units
Maintenance of guided cylinders plays a crucial role in ensuring precision positioning within pick and place systems. Proper upkeep helps maintain the accuracy and efficiency of these automated components.
Factory Automation
In automated production lines, guided cylinders often require repair to sustain optimal performance. Regular servicing contributes to uninterrupted factory operations.
Material Handling
Replacing seals in cylinders used on conveyors and handling systems is essential for preventing leaks and maintaining system reliability during material transport.
Clamping and Pressing
Cylinders subjected to high-force clamping and pressing operations demand consistent maintenance to withstand mechanical stress and ensure safety.
Packaging Machinery
Seal kits are frequently employed in cylinders within packaging and filling machines to preserve airtight seals and maintain operational efficiency.
Electronic Component Manufacturing
In the field of precision assembly equipment for electronic components, cylinder maintenance is vital to uphold exactness and prevent downtime.
CNC Machines
Guided cylinder repair is a key aspect of maintaining machine tools that require high precision, ensuring consistent and accurate machining processes.
General Industrial Pneumatics
Across various applications, any system utilizing guided cylinders benefits from reliable sealing solutions to maintain functionality and prevent leaks.
Support and Services:
Our Pulse Valve Diaphragm product is designed to deliver reliable performance and long service life in demanding industrial applications. To ensure optimal operation, we offer comprehensive technical support and services tailored to your needs.
Our technical support team provides expert guidance on installation, maintenance, and troubleshooting of pulse valve diaphragms. We assist in selecting the right diaphragm material and specifications to match your system requirements, helping to maximize efficiency and minimize downtime.
We offer detailed product documentation, including installation manuals, maintenance schedules, and performance data sheets to support your operations. In addition, we provide training sessions for maintenance personnel to ensure proper handling and replacement procedures.
For service needs, we supply high-quality replacement diaphragms that meet strict quality standards, ensuring compatibility and durability. Our team can also assist with custom diaphragm design and manufacturing for specialized applications.
Regular maintenance services, including inspection and testing, are available to help detect early signs of wear and prevent unexpected failures. We are committed to delivering prompt and effective support to keep your pulse valve systems running smoothly.
Trust our expertise and comprehensive service offerings to enhance the reliability and lifespan of your pulse valve diaphragm components.
Packing and Shipping:
The Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. Each diaphragm is individually wrapped in a protective film to prevent contamination and damage. The wrapped diaphragms are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.
For shipping, we use reliable carriers and provide tracking information to ensure timely and safe delivery. All packages are clearly labeled with product details and handling instructions to maintain product integrity throughout the shipping process. Bulk orders are securely palletized to prevent movement and damage during transportation.
