Compact Flange Cylinder Spare Parts CQMB63 PS Seal Kit Complete sealing assembly for rapid field repair of heavy load workpiece holding positioning fixtures

Product Description:

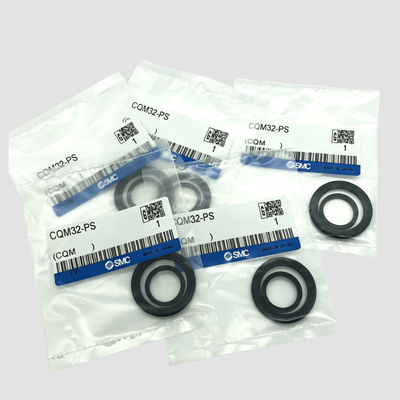

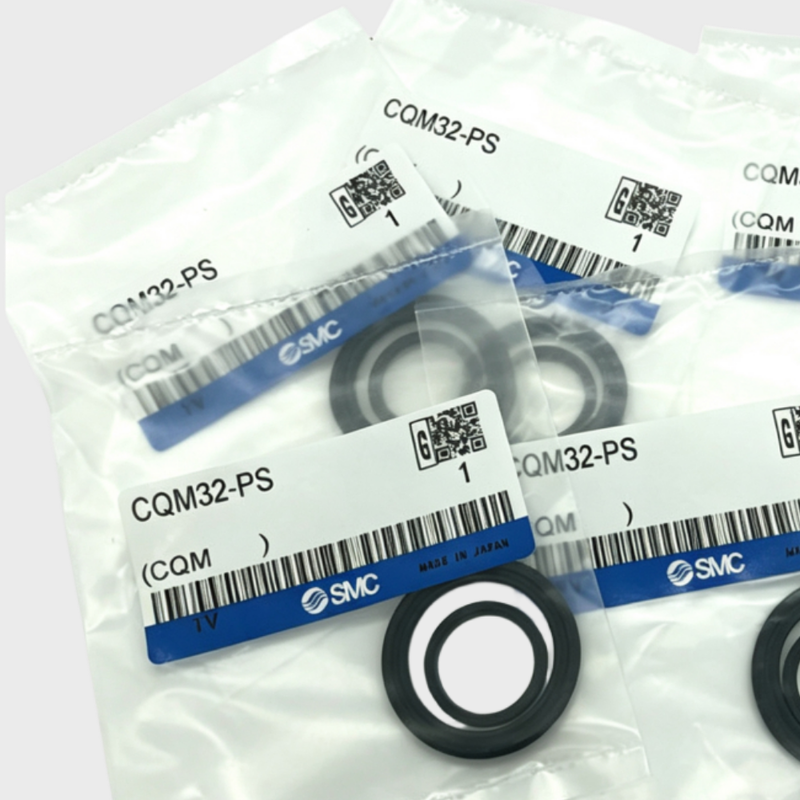

These guide rod cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and overhaul of CQMB series compact guided pneumatic cylinders. They cater to bore sizes ranging from 12mm up to 63mm. Each kit is equipped with all the essential sealing components needed for a complete cylinder rebuild, including a piston seal, rod seal, and tube gasket.

Manufactured from high-quality NBR (nitrile rubber), the seals provide excellent resistance to wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The CQMB series compact guide cylinders incorporate an integrated guide rod and plate design. This design offers superior non-rotating accuracy of ±0.2° and lateral load resistance that is four times greater than that of standard CQ2K cylinders, making them especially suitable for precise assembly tasks and pick-and-place operations.

Using these seal kits for regular replacement helps restore the cylinder’s original performance, prevents air leakage, and significantly extends the service life of existing actuators. This maintenance approach is highly cost-effective compared to full replacement. Please note that the seal kit does not come with a grease pack; the grease pack must be purchased separately. The grease pack part number is GR-S-010, containing 10 grams.

Features:

This comprehensive seal kit includes all necessary components for a full cylinder rebuild. Each kit contains a piston seal, a rod seal, and a tube gasket, ensuring a complete solution for restoring your cylinder's functionality.

Our seal kits are designed to accommodate a variety of bore sizes. Available sizes include 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, providing flexibility to fit different cylinder specifications.

The seals are made from high-quality nitrile rubber (NBR), which offers outstanding resistance to oil and wear. This ensures longevity and reliable performance in demanding environments.

Specifically engineered to be compatible with CQMB compact guide rod cylinders, these kits work seamlessly with models that feature integrated guide rods.

By replacing worn or damaged seals, this kit effectively eliminates air leakage. This restoration helps regain the cylinder’s original force and speed, improving overall efficiency.

The kit supports cylinders providing precise non-rotating accuracy within ±0.2°, ensuring stable and accurate operations in your applications.

Suitable for cylinders that require lateral load resistance up to four times that of the CQ2K series, enhancing durability and operational stability.

This seal kit offers an economical alternative to purchasing a new cylinder. By extending the service life of your actuators, it reduces downtime and maintenance costs.

The seals function effectively within temperatures ranging from -10°C to +70°C, making them suitable for various environmental conditions.

With a single kit number assigned per bore size, stocking and managing inventory becomes straightforward and efficient.

Proper lubrication during installation is made easy with the separately available GR-S-010 grease pack (10g), ensuring optimal seal performance.

Technical Parameters:

Applications:

Maintenance of guided cylinders plays a crucial role in ensuring the accuracy and reliability of precision positioning systems. Regular service helps to maintain optimal performance in these applications.

Guided cylinders require timely repairs in automated production lines to minimize downtime and maintain smooth operation of factory automation processes.

Replacing seals in cylinders used within conveyors and handling systems is essential to prevent leakage and ensure consistent material flow throughout the handling operations.

Cylinders involved in high-force clamping and pressing tasks demand regular maintenance to preserve their effectiveness and prolong equipment lifespan.

Seal kits are critical for the upkeep of cylinders employed in packaging and filling equipment, helping to sustain efficiency and prevent contamination.

Proper maintenance of cylinders used in precision assembly equipment is vital in the electronic component manufacturing industry to achieve high-quality results.

Guided cylinder repairs are necessary in CNC machine tools that require high precision to maintain exact machining tolerances and overall equipment reliability.

Any industrial application that depends on reliable guided cylinder sealing benefits from comprehensive maintenance practices to ensure continuous and efficient operation.
