Product Description:

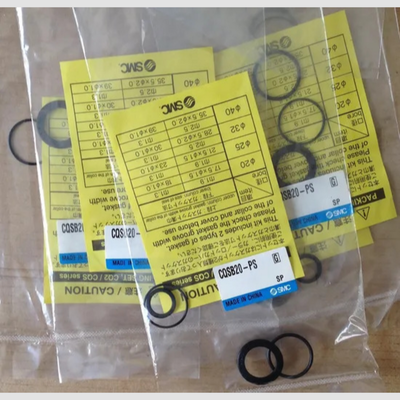

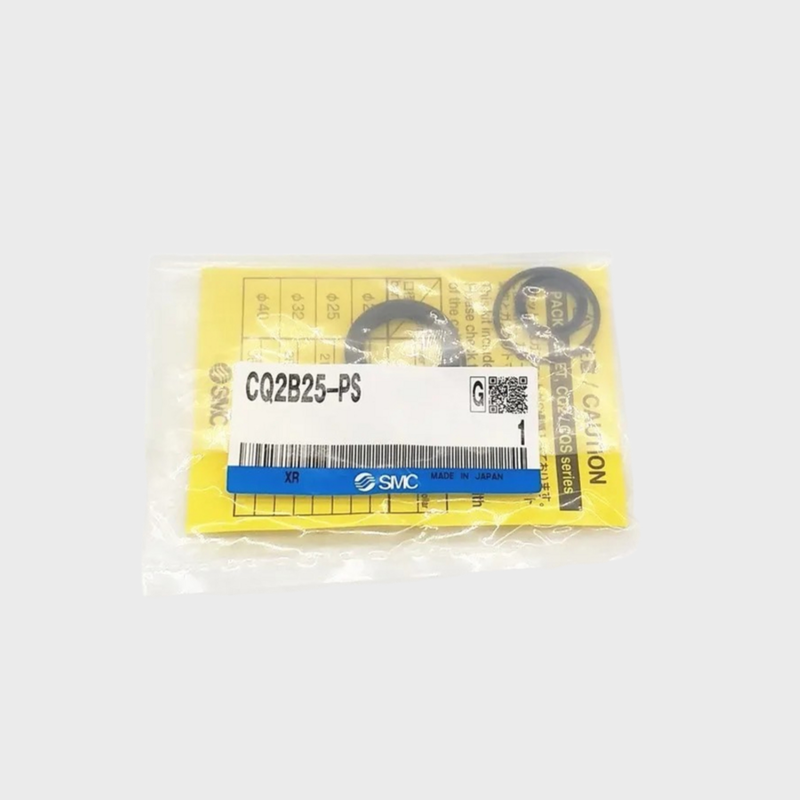

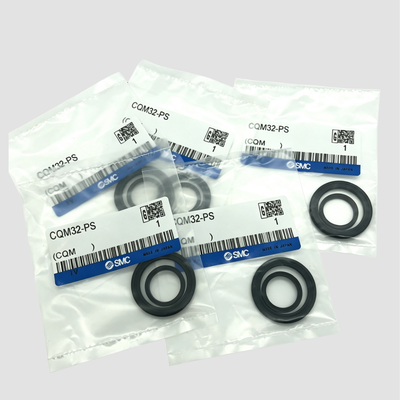

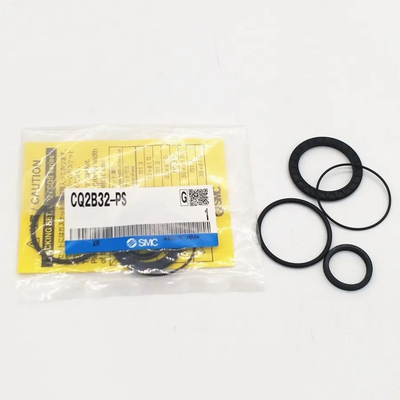

These guide rod cylinder seal kits are precision-engineered replacement sets specifically designed for the maintenance and complete overhaul of CQMB series compact guided pneumatic cylinders. They are available for bore sizes ranging from 12mm to 63mm. Each kit comprises all the essential sealing components needed for a thorough cylinder rebuild, including a piston seal, rod seal, and tube gasket.
The seals are made from high-quality NBR (nitrile rubber), which provides excellent resistance to wear, oil, and abrasion. This material choice ensures dependable performance in various pneumatic applications. The CQMB series compact guide cylinders incorporate an integrated guide rod and plate design, delivering high non-rotational accuracy of ±0.2° and a lateral load resistance that is four times greater than that of standard CQ2K cylinders. These features make the cylinders particularly suitable for precision assembly tasks and pick and place operations.
By regularly replacing the seals using these kits, users can restore the cylinder's optimal performance, prevent air leakage, and significantly extend the service life of existing actuators. This cost-effective maintenance solution avoids the need for complete cylinder replacement. Please note that the seal kits do not include grease packs; these must be ordered separately. The recommended grease pack has the part number GR-S-010 and contains 10 grams.
Features:
Complete Seal Kit
Each seal kit contains all necessary components for a thorough cylinder rebuild, including a piston seal, rod seal, and tube gasket. This comprehensive set ensures your cylinder is fully restored.
Wide Range of Bore Sizes
The kits are available in a variety of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, providing solutions for many different cylinder types.
Premium Quality NBR Seals
Featuring seals made from nitrile rubber (NBR), these components deliver excellent resistance to oil and wear, ensuring durability and long-lasting performance.
Compatibility with CQMB Series
Specifically designed to fit CQMB compact guide rod cylinders that have built-in guide rods, ensuring perfect compatibility and seamless installation.
Restores Cylinder Performance
By replacing worn-out seals, these kits effectively eliminate air leakage, restoring the original force and speed of your cylinder for optimal operation.
Non-Rotating Precision
The seal kits support cylinders that offer non-rotating accuracy within ±0.2°, maintaining precise and reliable movement in your applications.
High Lateral Load Resistance
Suitable for use with cylinders that provide lateral load resistance up to four times greater than the CQ2K series, ensuring robustness under demanding conditions.
Cost-Effective Maintenance Solution
These seal kits offer an affordable alternative to purchasing new cylinders, significantly extending the service life of your actuators while reducing maintenance costs.
Operating Temperature Range
Designed to perform reliably within a temperature range from -10°C to +70°C, making them suitable for a wide array of environments.
Ideal for Inventory Management
With a single kit number assigned per bore size, stocking and managing inventory becomes simpler and more efficient for maintenance teams.
Optional Grease Pack
A separate grease pack (GR-S-010, 10g) is available to ensure proper lubrication during installation, further enhancing seal performance and longevity.
Technical Parameters:
| Product Type |
Seal Kit / Repair Kit |
| Kit Contents |
Piston Seal, Rod Seal, Tube Gasket |
| Seal Material |
NBR |
| Series |
CQMB |
| Operating Temperature Range |
-10°C To +70°C |
| Bore Sizes |
12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm |
| Applications |
ASCO 8210 series spare diaphragm, Solenoid valve sealing diaphragm, ASCO 8210 series spare diaphragm |
Applications:
Pick and Place Units
Maintenance of guided cylinders is crucial in precision positioning systems to ensure accurate and reliable operation during pick and place tasks.
Factory Automation
Guided cylinders used in automated production lines require timely repairs to maintain the smooth flow and efficiency of factory automation processes.
Material Handling
The replacement of seals in cylinders is essential for conveyors and material handling systems to prevent leaks and extend equipment life.
Clamping and Pressing
Regular maintenance of cylinders is necessary for high-force clamping and pressing operations to maintain performance and safety.
Packaging Machinery
Seal kits designed for cylinders in packaging and filling equipment help ensure the reliability and efficiency of packaging machinery.
Electronic Component Manufacturing
Cylinder maintenance plays a vital role in precision assembly equipment used in the manufacturing of electronic components.
CNC Machines
Repair of guided cylinders is critical in machine tools where high precision is required, such as CNC machines.
General Industrial Pneumatics
Applications that demand reliable sealing of guided cylinders benefit from proper maintenance and sealing solutions in a variety of industrial pneumatic systems.
