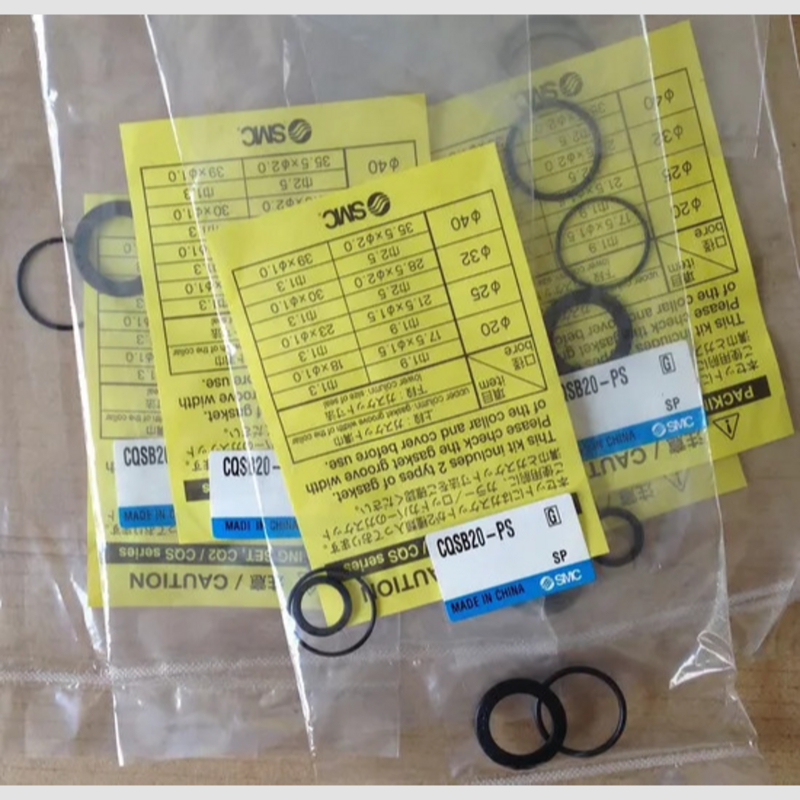

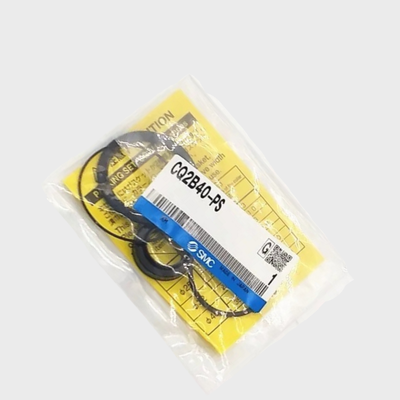

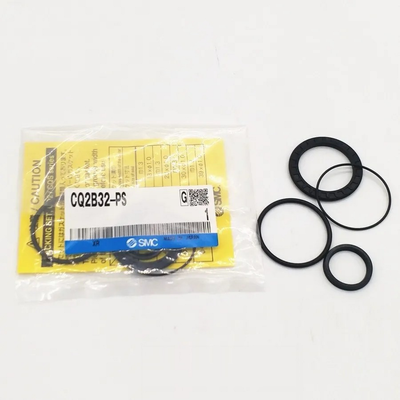

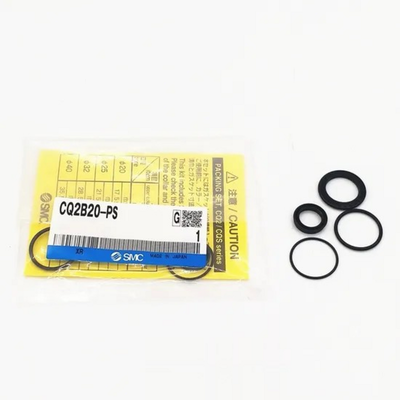

CQMB20 PS Seal Repair Kit Compatible With SMC 20mm bore compact flange air cylinder Replace aged internal seals stop air leakage for clamping jig

Product Description:

These guide rod cylinder seal kits are meticulously crafted replacement sets specifically designed for the maintenance and comprehensive overhaul of CQMB series compact guided pneumatic cylinders. They are available in bore sizes ranging from 12mm up to 63mm. Each kit is equipped with all the essential sealing components needed for a full cylinder rebuild, including a piston seal, rod seal, and tube gasket.

Manufactured from premium-quality NBR (nitrile rubber), the seals provide excellent resistance against wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The CQMB series compact guide cylinders incorporate an integrated guide rod and plate design that delivers high non-rotating accuracy of ±0.2° as well as lateral load resistance that is four times greater than that of standard CQ2K cylinders. This makes them especially suitable for precision assembly tasks and pick-and-place operations.

Routine replacement of seals using these kits restores optimal cylinder performance, prevents air leakage, and significantly extends the lifespan of existing actuators. This is achieved at a fraction of the cost compared to purchasing new cylinders. Please note that the seal kit does not come with a grease pack, which must be ordered separately. The grease pack required is identified by part number GR-S-010 and weighs 10 grams.

Features:

This comprehensive seal kit contains everything needed for a complete cylinder rebuild. Each set includes a piston seal, rod seal, and tube gasket, ensuring a thorough restoration of your cylinder's performance.

The seal kits are offered in multiple bore sizes to accommodate various cylinder specifications. Available sizes include 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, providing flexibility for different applications.

Made from high-quality nitrile rubber (NBR), the seals exhibit excellent resistance to oil and wear. This material choice ensures long-lasting durability and reliable cylinder operation.

Specifically engineered to fit CQMB compact guide rod cylinders equipped with built-in guide rods, these seal kits guarantee compatibility and optimal functionality within the CQMB series.

By replacing worn or damaged seals, the kit effectively eliminates air leakage. This restoration helps return the cylinder to its original force output and operational speed, enhancing overall performance.

The seal kits support cylinders that deliver ±0.2° non-rotating accuracy, making them suitable for applications requiring precise linear motion without rotation.

These seals are suitable for cylinders designed to handle lateral loads up to four times greater than those of the CQ2K series, ensuring stable performance under demanding conditions.

Offering a budget-friendly alternative to purchasing new cylinders, the seal kits extend the service life of actuators while reducing maintenance expenses.

The seal kits perform reliably in environments with temperatures ranging from -10°C to +70°C, making them versatile for various industrial conditions.

Each bore size corresponds to a single kit number, simplifying stock management and ensuring easy identification and ordering.

A separate grease pack (model GR-S-010, 10g) is available to provide proper lubrication during the installation process, ensuring optimal seal performance.

Technical Parameters:

Applications:

In the field of Pick and Place Units , maintaining guided cylinders is crucial for ensuring precision in positioning systems. Regular upkeep helps maintain the accuracy required for seamless operation in these automated units.

Within Factory Automation , the repair of guided cylinders plays a vital role in keeping automated production lines running smoothly and efficiently. Timely maintenance minimizes downtime and enhances productivity.

For Material Handling systems, replacing seals in cylinders used in conveyors and other handling equipment is essential to prevent leaks and ensure reliable movement of materials.

Clamping and Pressing operations rely on cylinders capable of generating high force. Proper maintenance of these cylinders is key to sustaining the performance and safety of clamping and pressing machinery.

In the realm of Packaging Machinery , using specialized seal kits for cylinders within packaging and filling equipment helps maintain tight seals and improve operational reliability.

Electronic Component Manufacturing requires high precision, and regular cylinder maintenance in assembly equipment contributes to consistent production quality and reduced equipment failure.

CNC Machines demand exceptional precision, making guided cylinder repair an important aspect of maintaining machine tools that require accurate and repeatable movements.

Finally, General Industrial Pneumatics cover a broad range of applications where dependable sealing of guided cylinders is necessary to ensure the reliability and efficiency of pneumatic systems.
