Product Description:

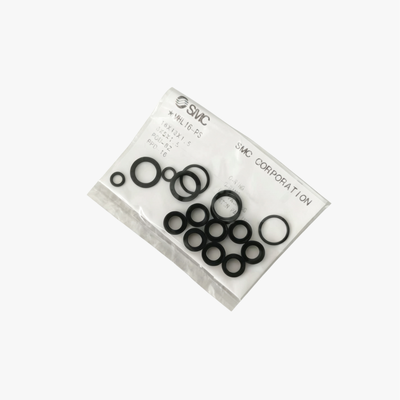

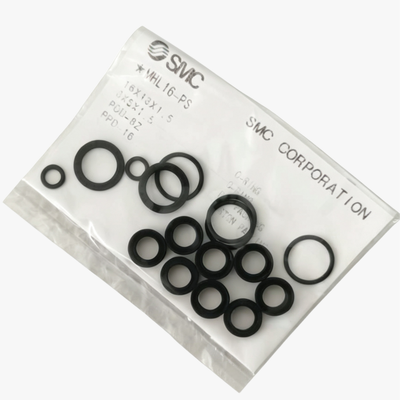

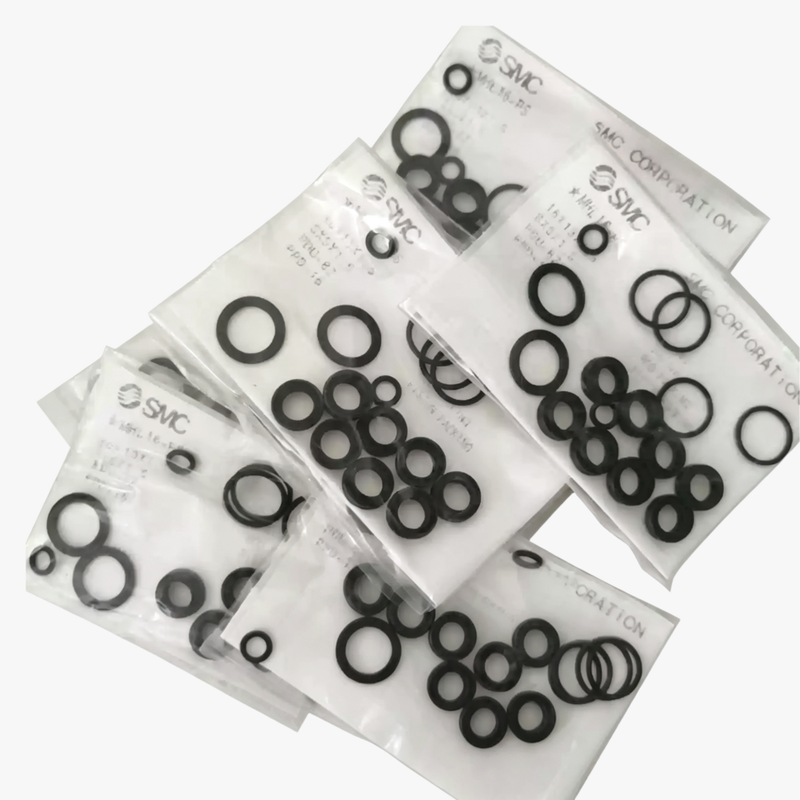

These air gripper seal kits are precisely engineered replacement sets intended for the maintenance and overhaul of the MHL2 series parallel style wide opening pneumatic grippers. Designed to accommodate bore sizes ranging from 10mm to 40mm, each kit includes all essential sealing components needed for a full gripper rebuild, such as the gasket, piston seal, and rod seal.
Manufactured using high-quality NBR (nitrile rubber), the seals provide excellent resistance to wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The MHL2 series grippers incorporate a double piston mechanism that delivers high gripping force within a compact design, making them ideal for handling workpieces with significant dimensional variations.
Regular replacement of seals using these kits helps restore the original performance of the gripper, prevents air leakage, and significantly extends the service life of the actuators. This maintenance solution offers a cost-effective alternative compared to full actuator replacement. Please note, the seal kit does not include a grease pack; this must be ordered separately (grease pack part number: GR-S-010, 10g).
Features:
This complete seal kit includes all necessary components for a thorough gripper rebuild, featuring a gasket, piston seal, and rod seal. It ensures a comprehensive restoration of your pneumatic gripper's performance.
The kit is available in multiple bore sizes including 10mm, 16mm, 20mm, 25mm, 32mm, and 40mm, catering to a variety of applications and equipment requirements.
Manufactured from NBR (nitrile rubber), the seals provide excellent resistance to oil and wear, enhancing the durability and reliability of the gripper’s sealing system.
These seals are specially designed to be compatible with the MHL2 series parallel style wide opening pneumatic grippers, ensuring a perfect fit and optimal operation.
By eliminating air leaks, this seal kit helps restore the gripper's original gripping force and improves sealing performance, which in turn extends the service life of your actuator.
As a cost-effective solution, this kit offers an alternative to replacing the entire gripper. It allows for maintenance and repairs that save money while maintaining high functionality.
Installation is quick and straightforward, requiring only standard tools, making it convenient for maintenance personnel to perform repairs without specialized equipment.
The seals operate effectively within a temperature range of -10°C to +60°C, making them suitable for various industrial environments.
The kit supports double acting action, providing reliable gripping force in both directions for improved control and precision.
Each bore size has its own unique kit number, which simplifies inventory management and ordering processes.
Additionally, a separate grease pack (GR-S-010, 10g) is available to enhance lubrication and further extend the lifespan of the seals.
Technical Parameters:
| Seal Material |
NBR |
| Bore Sizes |
10mm, 16mm, 20mm, 25mm, 32mm, 40mm |
| Operating Temperature |
-10°C To +60°C |
| Product Type |
Seal Kit / Repair Kit |
| Series |
MHL2 |
| Kit Contents |
Gasket, Piston Seal, Rod Seal |
| Description |
3/8‑2 1/2 inch solenoid valve diaphragm, 2-way valve repair kit, 3/8‑2 1/2 inch solenoid valve diaphragm |
Applications:
Pick and Place Units
Maintenance of parallel grippers is essential in precision positioning systems to ensure accuracy and consistent performance during automated handling tasks.
Factory Automation
In automated production lines, regular repair and upkeep of grippers help maintain smooth operation and reduce downtime.
Material Handling
Replacing seals in grippers used on conveyors and handling systems is a crucial step to preserve their functionality and extend equipment lifespan.
Packaging Machinery
Proper maintenance of grippers in packaging and filling machines ensures reliable operation and supports high-speed production processes.
Electronic Component Manufacturing
Gripper repair plays a vital role in precision assembly equipment, facilitating accurate manipulation of delicate components.
General Industrial Pneumatics
For any applications requiring dependable air gripper sealing, timely maintenance and repair are key to maintaining system integrity.
Customization:
Introducing the SMC Pulse Valve Diaphragm, model number MHL2 10-PS, a high-quality seal kit designed for reliable performance and durability. Manufactured in China and certified with CE, this product meets stringent quality standards ensuring optimal operation.
Our Pulse Valve Diaphragm is compatible with 3/8‑2 1/2 inch solenoid valve diaphragms, including the ASCO series 210 diaphragm, making it a versatile choice for various applications. Available in multiple bore sizes of 10mm, 16mm, 20mm, 25mm, 32mm, and 40mm, it adapts seamlessly to your specific requirements.
The kit contents include essential components such as a gasket, piston seal, and rod seal, all made from durable NBR seal material, capable of operating efficiently within a temperature range of -10°C to +60°C. This ensures long-lasting sealing performance under diverse working conditions.
With a minimum order quantity of 1 piece and a supply ability of 5000 pieces per month, we offer flexible purchasing options tailored to your needs. Pricing is negotiable to provide the best value for your investment.
Packaging is securely done in cartons to ensure safe delivery, with a prompt delivery time of 1-7 work days after payment. We accept multiple payment terms including T/T, Western Union, and PayPal for your convenience.
Choose the SMC Pulse Valve Diaphragm MHL2 10-PS for a reliable, certified solution compatible with 3/8‑2 1/2 inch solenoid valve diaphragms and the ASCO series 210 diaphragm, backed by excellent supply capabilities and customer service.
Support and Services:
Our Pulse Valve Diaphragm is designed to ensure optimal performance and durability in demanding industrial applications. For technical support, our team of experts is available to provide guidance on installation, maintenance, and troubleshooting to maximize the lifespan and efficiency of your pulse valve diaphragm.
We offer comprehensive services including product inspection, replacement parts supply, and custom solutions tailored to your specific operational requirements. Regular maintenance and timely replacement of the diaphragm are crucial to prevent system downtime and maintain consistent pulse valve operation.
Technical documentation, including installation manuals and maintenance guides, is available to assist you in achieving the best results with our pulse valve diaphragm products. Our support services aim to minimize operational interruptions and ensure your equipment performs at its best.
Please ensure that all servicing and replacements are carried out following the recommended procedures to maintain warranty coverage and product integrity.
