Product Description:

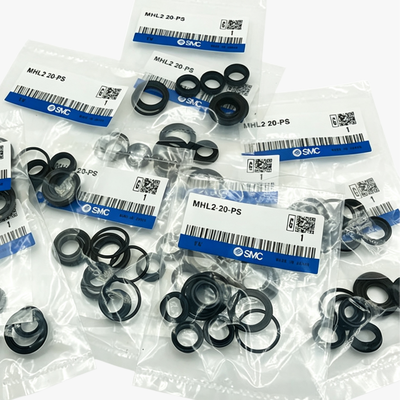

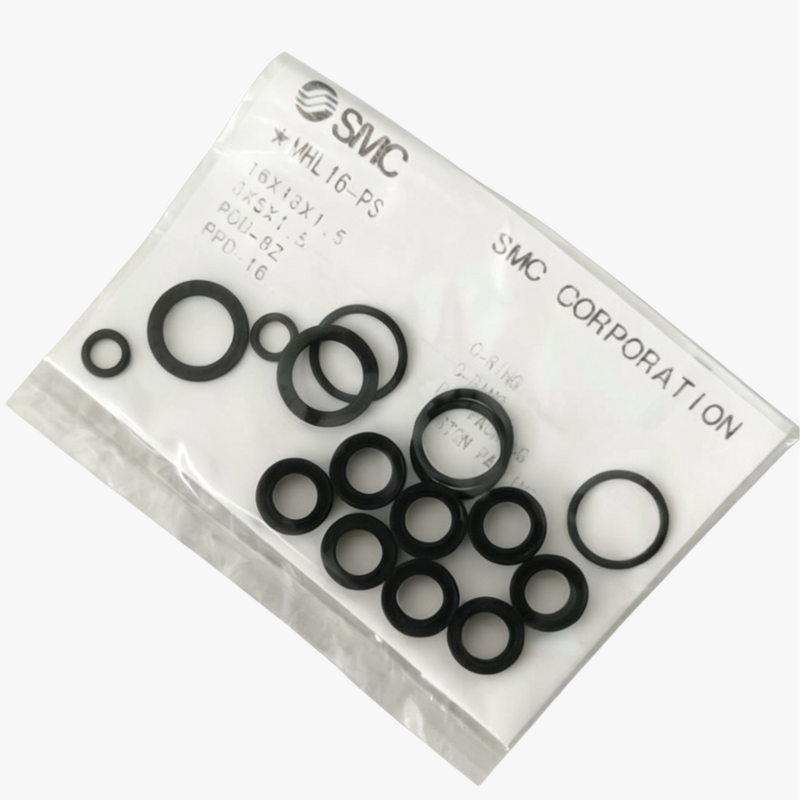

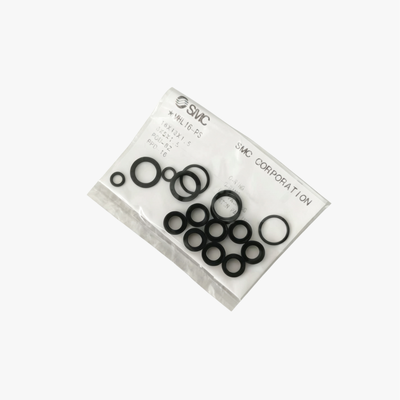

These air gripper seal kits are meticulously crafted replacement sets intended for the maintenance and refurbishment of MHL2 series parallel style wide opening pneumatic grippers. They cater to bore sizes ranging from 10mm to 40mm, and each kit is equipped with all the necessary sealing components needed for a thorough gripper rebuild, including a gasket, piston seal, and rod seal.
The seals are produced from premium quality NBR (nitrile rubber), which provides outstanding resistance against wear, oil, and abrasion. This ensures dependable performance in various pneumatic applications. The MHL2 series grippers utilize a double piston mechanism that delivers high gripping force within a compact design, making them ideal for managing workpieces with significant dimensional variations.
Consistently replacing seals using these kits helps restore the gripper's optimal performance, prevents air leakage, and significantly extends the lifespan of existing actuators. This maintenance approach is cost-effective compared to full replacements. Please note that the seal kit does not come with a grease pack, which must be purchased separately. The grease pack part number is GR-S-010, available in 10g.
Features:
This complete seal kit includes a gasket, piston seal, and rod seal, providing everything needed for a comprehensive gripper rebuild. It is designed to restore the gripper’s original performance by ensuring effective sealing and eliminating air leakage.
The kit is available for various bore sizes, including 10mm, 16mm, 20mm, 25mm, 32mm, and 40mm, accommodating a wide range of pneumatic grippers. Each bore size has a dedicated kit number to make inventory management straightforward and convenient.
Made from NBR (nitrile rubber), the seals offer excellent resistance to oil and wear, ensuring durability and longevity under demanding operating conditions. They are specifically compatible with the MHL2 series parallel style wide opening pneumatic grippers.
By using this seal kit, you can restore the gripping force and sealing efficiency of your equipment, preventing air leakage that could compromise performance. It serves as a cost-effective alternative to replacing the entire gripper, thereby extending the lifespan of your actuator.
Installation is quick and simple, requiring only standard tools, which minimizes downtime during maintenance. The kit supports double-acting operation for dependable gripping action in both directions.
The seals perform well within an operating temperature range from -10°C to +60°C. Additionally, a separate grease pack (model number GR-S-010, 10g) is available to complement the seal kit and further enhance maintenance efficiency.
Technical Parameters:
| Seal Material |
NBR |
| Series |
MHL2 |
| Operating Temperature |
-10°C To +60°C |
| Kit Contents |
Gasket, Piston Seal, Rod Seal |
| Bore Sizes |
10mm, 16mm, 20mm, 25mm, 32mm, 40mm |
| Product Type |
Seal Kit / Repair Kit |
Applications:
Pick and Place Units
Maintenance of parallel grippers plays a crucial role in ensuring precision positioning systems operate efficiently. Regular servicing helps maintain accuracy and prolong the lifespan of the equipment.
Factory Automation
Repairing grippers used in automated production lines is essential to minimize downtime and maintain smooth operation. Skilled maintenance ensures that the equipment continues to perform reliably in demanding manufacturing environments.
Material Handling
Replacing seals in grippers used within conveyors and handling systems is important to preserve the integrity of the equipment. Proper sealing prevents leaks and enhances the overall durability of material handling components.
Packaging Machinery
The maintenance of grippers involved in packaging and filling machines helps to ensure consistent performance and reduce the risk of failure during operation. Regular upkeep supports high-speed and accurate packaging processes.
Electronic Component Manufacturing
In the realm of precision assembly equipment, timely repair of grippers is vital for maintaining the delicate handling required in electronic component production. This ensures product quality and operational reliability.
General Industrial Pneumatics
Applications that demand dependable air gripper sealing benefit greatly from effective maintenance practices. Reliable sealing is critical in various industrial settings to ensure optimal pneumatic performance.
Customization:
Introducing the SMC Pulse Valve Diaphragm, model number MHL2 10-PS, a high-quality solenoid valve sealing diaphragm designed for reliability and durability. Manufactured in China and certified with CE standards, this product ensures excellent performance for various industrial applications.
This product is part of the MHL2 series and comes as a comprehensive seal kit / repair kit, including essential components such as gasket, piston seal, and rod seal. The seal material used is NBR, providing superior sealing capabilities for extended service life.
Available bore sizes for this pulse valve diaphragm range from 10mm to 40mm, including 10mm, 16mm, 20mm, 25mm, 32mm, and 40mm, making it compatible with multiple valve configurations. It is an ideal 2-way valve repair kit and perfectly fits 3/8‑2 1/2 inch solenoid valve diaphragm requirements.
We offer flexible pricing through negotiation, with a minimum order quantity of just 1 piece. The packaging is secure in cartons to ensure safe delivery. With a supply ability of 5000 pieces per month, we guarantee timely delivery within 1-7 work days after payment. Payment terms include T/T, Western Union, and Paypal for your convenience.
Choose the SMC MHL2 10-PS pulse valve diaphragm for your solenoid valve sealing diaphragm needs and experience quality and efficiency in valve repair and maintenance.
Support and Services:
Our Pulse Valve Diaphragm product is supported by a dedicated technical support team committed to ensuring optimal performance and longevity of your equipment. We provide comprehensive installation guidance, troubleshooting assistance, and maintenance tips to help you achieve reliable operation.
Our services include detailed product documentation, replacement parts availability, and expert advice tailored to your specific application needs. We also offer training sessions to help your personnel understand the correct handling and servicing of the pulse valve diaphragm.
Whether you require assistance with product selection, technical specifications, or operational optimization, our support team is equipped to provide prompt and effective solutions. We strive to minimize downtime and enhance the efficiency of your pulse valve systems through our expert support and service offerings.
