Product Description:

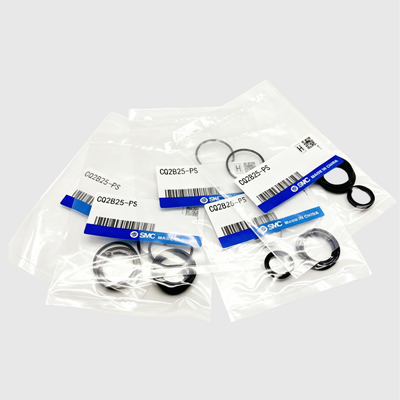

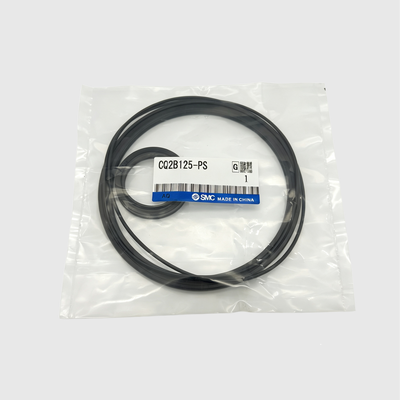

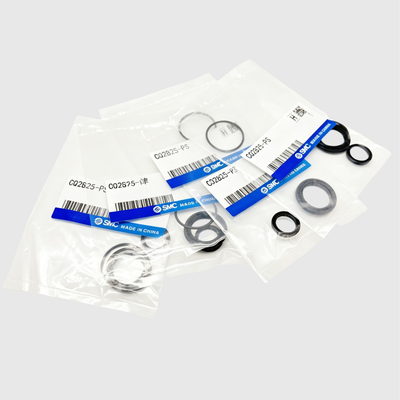

The SMC CQ2 Series seal kits are authentic replacement parts specifically designed for the maintenance and refurbishment of compact pneumatic cylinders in the CQ2A, CDQ2A, CQ2B, and CDQ2B series. These kits ensure that your cylinders continue to function efficiently by providing all necessary sealing components.
Each seal kit includes a comprehensive set of essential seals, such as the piston seal, rod seal, and tube gasket. These components are crafted from high-quality NBR (nitrile rubber), which guarantees dependable performance and a prolonged service life under various operating conditions.
Available for bore sizes ranging from 12mm up to 100mm, the kits are tailored to match the specific bore dimension of your cylinder. By using the correct seal kit, you can effectively restore the sealing integrity of your cylinder, preventing air leaks and maintaining the cylinder’s optimal force and response speed.
These seal kits are compatible with both the standard CQ2 series compact cylinders and the anti-lateral load type models. Utilizing these kits offers a cost-effective solution compared to replacing the entire cylinder assembly, making them an economical choice for routine maintenance and repair.
Features:
Complete Seal Kit for Full Cylinder Overhaul
This comprehensive seal kit includes all necessary components such as piston seals, rod seals, and tube gaskets, ensuring a complete and efficient overhaul of your cylinder.
Authentic SMC Quality Assurance
Each kit is produced according to precise SMC standards, guaranteeing a perfect fit and dependable sealing performance that meets industrial demands.
Durable NBR Seal Material
The seals are crafted from high-grade nitrile rubber (NBR), providing excellent resistance against wear, compression set, and exposure to industrial air media, enhancing longevity and reliability.
Extensive Bore Size Availability
Seal kits are offered for a wide range of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, making them versatile for various applications.
Compatibility with Multiple Cylinder Models
These kits are compatible with numerous cylinder types within the CQ2 family such as CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, and CQP2, ensuring broad usability across different systems.
Restoration of Cylinder Performance
By replacing worn seals, the kit helps restore the cylinder’s original force, speed, and cushioning capabilities, effectively reviving its operational efficiency.
Minimised Downtime
The seal replacement process is quick and straightforward, reducing production stoppages and preventing the need for costly complete cylinder replacements.
Cost-Effective Maintenance Solution
This kit offers a budget-friendly alternative to purchasing new cylinders, delivering equivalent sealing performance while significantly cutting maintenance expenses.
Compliance with Environmental Standards
The product meets RoHS compliance requirements, ensuring it adheres to environmental and safety regulations for industrial applications.
Wide Operating Temperature Range
Designed to function efficiently within a temperature range from -10°C to +70°C, these seals are suitable for diverse working environments.
Technical Parameters:
| Compatible Cylinder Series |
CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, CQ2□S |
| Bore Sizes Available |
12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Series |
CQ2 |
| Seal Material |
NBR |
| Brand |
SMC |
| Kit Contents |
Piston Seal, Rod Seal, Tube Gasket |
| Product Type |
Cylinder Seal Kit / Repair Kit |
| Operating Temperature |
-10°C To +70°C |
Applications:
Factory Automation
Maintenance of compact pneumatic cylinders is crucial in automated production lines to ensure smooth and efficient operation. Regular servicing helps prevent unexpected downtime and maintains optimal performance of the machinery.
Material Handling
Pneumatic cylinders used in conveyors, pick-and-place units, and various handling systems often require repairs to maintain their functionality. Proper cylinder repair ensures the reliability and longevity of these material handling applications.
Packaging Machinery
In packaging and filling equipment, the replacement of seals in pneumatic cylinders is essential. This maintenance task helps to avoid leaks and maintain the integrity of the packaging process.
Electronic Component Manufacturing
Precision assembly equipment in the electronic manufacturing industry depends on well-maintained cylinders. Regular maintenance ensures that cylinder performance remains consistent, supporting high-quality assembly production.
Automotive Assembly
Compact pneumatic cylinders used in assembly tools and testing fixtures require timely repairs to sustain efficient automotive assembly operations. Maintaining these cylinders prevents tool failure and production delays.
Food and Beverage Processing
Cylinders in food and beverage processing and packaging lines need routine maintenance to comply with hygiene standards and ensure continuous operation without contamination or breakdowns.
General Pneumatics
For any application demanding reliable sealing and performance restoration of compact cylinders, proper maintenance and repair are necessary. This guarantees the cylinders function effectively across various industrial uses.
