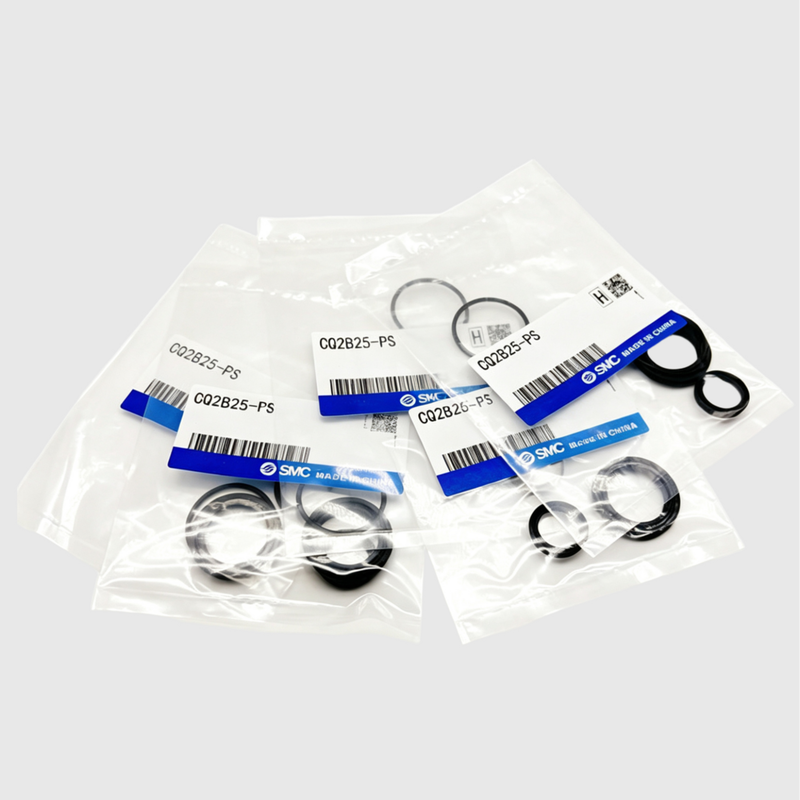

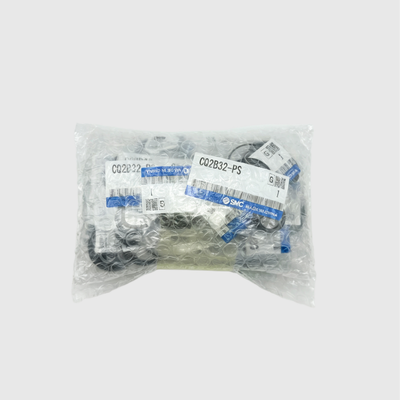

Product Description:
The SMC CQ2 Series seal kits are authentic replacement components specifically designed for the maintenance and refurbishment of CQ2A, CDQ2A, CQ2B, and CDQ2B series compact pneumatic cylinders. These kits ensure that your cylinders remain in optimal working condition by providing all necessary parts for a thorough overhaul.
Each seal kit includes a comprehensive set of essential sealing elements such as the piston seal, rod seal, and tube gasket. All parts are crafted from premium-grade NBR (nitrile rubber), which guarantees durability, dependable performance, and an extended service life under demanding operating conditions.
Available in bore sizes ranging from 12mm up to 100mm, the kits are ordered to match the exact bore dimension of the cylinder requiring maintenance. This precision fit helps in restoring the sealing integrity of the cylinder, effectively preventing air leaks and maintaining the cylinder’s optimal force output and response speed.
These seal kits are compatible with both the standard CQ2 series compact cylinders and the anti-lateral load variants. As a cost-effective solution, they offer a practical alternative to replacing the entire cylinder assembly, reducing downtime and overall maintenance expenses.
Features:
Complete Seal Kit for Full Cylinder Overhaul
This comprehensive seal kit includes everything you need for a complete cylinder maintenance: piston seal, rod seal, and tube gasket. It ensures a thorough overhaul and optimal performance restoration.
Genuine SMC Quality Assurance
Each component is manufactured precisely according to SMC's strict specifications, guaranteeing a perfect fit and dependable sealing performance that meets the highest industry standards.
Durable NBR Seal Material
Crafted from premium nitrile rubber (NBR), these seals provide excellent resistance against wear, compression set, and exposure to industrial air media, ensuring long-lasting reliability.
Extensive Bore Size Options
The seal kits are available in a wide range of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, accommodating various cylinder dimensions.
Compatible with Multiple Cylinder Models
Designed to fit a variety of cylinders such as CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, and other members of the CQ2 family, providing versatile application options.
Restores Optimal Cylinder Performance
By replacing worn seals, this kit helps restore the cylinder’s original force, speed, and cushioning capabilities, enhancing overall operational efficiency.
Minimizes Downtime
Quick and easy seal replacement significantly reduces production interruptions, preventing the need for costly cylinder replacements and keeping your processes running smoothly.
Cost-Effective Maintenance Solution
Offering equivalent sealing performance at a fraction of the price of new cylinders, this kit provides a budget-friendly maintenance option without compromising quality.
RoHS Compliant for Safety and Environmental Standards
All components comply with RoHS requirements, ensuring safety and adherence to environmental regulations for industrial applications.
Wide Operating Temperature Range
These seals are suitable for use in environments ranging from -10°C to +70°C, making them adaptable to various industrial conditions.
Technical Parameters:
| Seal Material |
NBR |
| Operating Temperature |
-10°C To +70°C |
| Series |
CQ2 |
| Product Type |
Cylinder Seal Kit / Repair Kit |
| Brand |
SMC |
| Compatible Cylinder Series |
CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, CQ2□S |
| Bore Sizes Available |
12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Mm |
| Kit Contents |
Piston Seal, Rod Seal, Tube Gasket |
Applications:
In the field of factory automation, maintaining compact pneumatic cylinders is vital for smooth operation of automated production lines. Regular upkeep ensures that these cylinders perform efficiently and reduce downtime.
When it comes to material handling, repairing cylinders used in conveyors, pick-and-place units, and other handling systems is crucial. Proper maintenance helps sustain the reliability and accuracy of these systems.
In packaging machinery, replacing seals in cylinders used within packaging and filling equipment is a key maintenance task. This helps prevent leaks and maintains the integrity of the packaging process.
Electronic component manufacturing heavily relies on precise assembly equipment where cylinder maintenance plays an important role. Ensuring cylinders function correctly contributes to the overall precision of the production.
The automotive assembly industry requires frequent repairs of compact cylinders found in assembly tools and testing fixtures. Keeping these cylinders in optimal condition supports effective and accurate assembly operations.
In the food and beverage processing sector, maintaining cylinders that operate within processing and packaging lines is essential. Proper maintenance guarantees consistent performance and compliance with hygiene standards.
More generally, any pneumatic application that demands dependable compact cylinder sealing and restoration of performance benefits greatly from dedicated maintenance efforts. This ensures ongoing reliability and extends the service life of the equipment.
