Product Description:

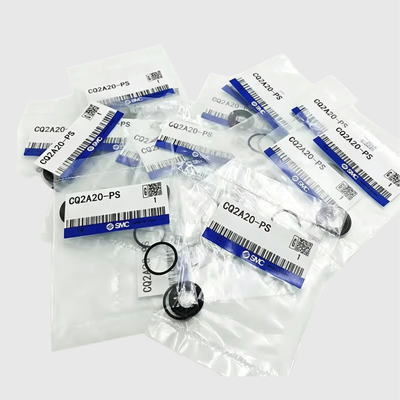

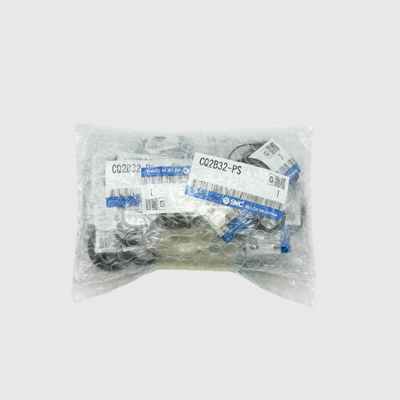

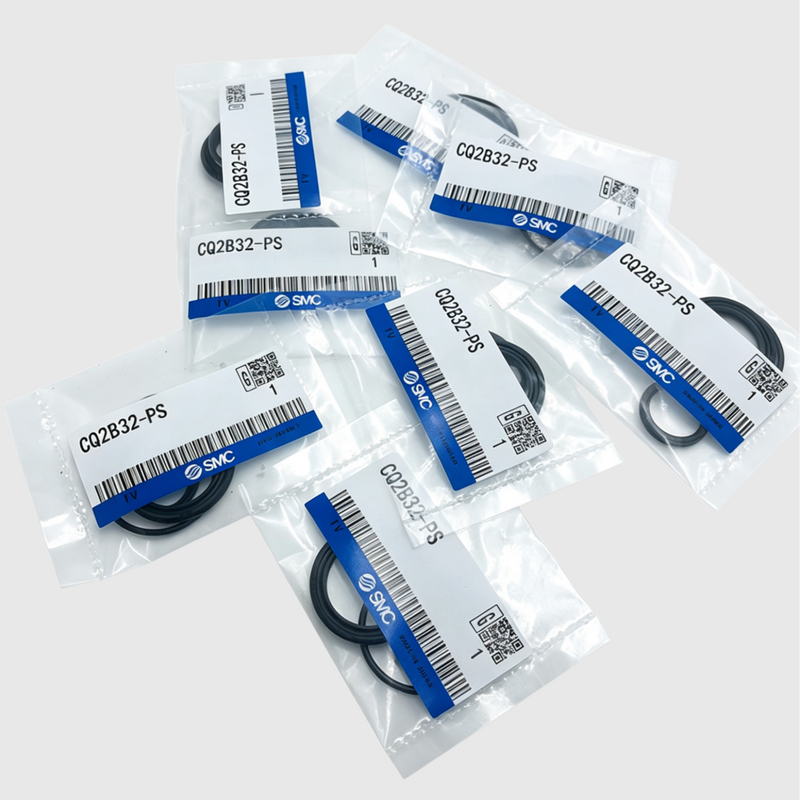

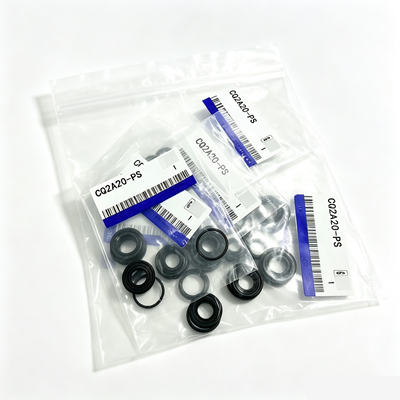

The SMC CQ2 Series seal kits are authentic replacement components specifically designed for the maintenance and refurbishment of the CQ2A, CDQ2A, CQ2B, and CDQ2B series of compact pneumatic cylinders. These kits ensure that your cylinders continue to operate efficiently by providing essential sealing parts.
Each seal kit includes a comprehensive set of vital sealing elements, such as the piston seal, rod seal, and tube gasket. All parts are crafted from premium-grade NBR (nitrile rubber), guaranteeing dependable performance and extended durability under various operating conditions.
Available for bore sizes ranging from 12mm up to 100mm, the seal kits are ordered based on the exact bore dimension of the cylinder, ensuring a perfect fit. By restoring the sealing integrity of the cylinders, these kits help to eliminate air leakage and preserve the optimal force and response speed of the pneumatic system.
Moreover, these seal kits are compatible with both the standard CQ2 series compact cylinders and the anti-lateral load variants. They offer a cost-effective solution by allowing users to refurbish their existing cylinders without the need to replace the entire cylinder assembly.
Features:
Complete Seal Kit for Cylinder Overhaul
This comprehensive seal kit contains all necessary components including the piston seal, rod seal, and tube gasket, providing everything needed for a full cylinder refurbishment.
Authentic SMC Quality Assurance
Each seal kit is manufactured precisely according to SMC’s strict specifications, ensuring a perfect fit and dependable sealing performance throughout its use.
Durable NBR Seal Material
Constructed from premium nitrile rubber (NBR), the seals exhibit excellent resistance to wear and compression set, as well as compatibility with industrial air media.
Extensive Bore Size Availability
The kits cover a wide range of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, catering to diverse cylinder requirements.
Compatible with Multiple Cylinder Models
These seal kits are designed to fit various cylinders such as the CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, and other models within the CQ2 family.
Restores Original Cylinder Performance
Replacing the worn seals with this kit helps renew the cylinder’s original force, speed, and cushioning capabilities, enhancing overall functionality.
Minimizes Downtime Efficiently
The quick and straightforward seal replacement process reduces production interruptions, preventing expensive cylinder replacement and associated downtime.
Cost-Effective Maintenance Solution
Providing sealing performance equivalent to new cylinders, this kit offers a cost-efficient alternative by costing only a fraction of a brand-new cylinder.
Environmentally Compliant
The seal kit complies with RoHS standards, ensuring it meets necessary environmental and safety regulations suitable for industrial applications.
Wide Operating Temperature Range
Designed to operate effectively between -10°C and +70°C, these seals maintain performance across a broad temperature spectrum.
Technical Parameters:
| Product Type |
Cylinder Seal Kit / Repair Kit |
| Operating Temperature |
-10°C To +70°C |
| Series |
CQ2 |
| Compatible Cylinder Series |
CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, CQ2□S |
| Kit Contents |
Piston Seal, Rod Seal, Tube Gasket |
| Bore Sizes Available |
12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Mm |
| Brand |
SMC |
| Seal Material |
NBR |
Applications:
Maintenance of Compact Pneumatic Cylinders Across Various Industries
In the field of factory automation , the upkeep of compact pneumatic cylinders is essential to ensure smooth operation within automated production lines. Regular maintenance helps prevent downtime and enhances overall efficiency.
When it comes to material handling , repairing cylinders used in conveyors, pick-and-place units, and various handling systems is crucial. Proper repair work ensures these components function reliably and maintain productivity.
In the domain of packaging machinery , replacing seals within cylinders employed in packaging and filling equipment is a key maintenance task. This helps to avoid leaks and ensures consistent performance during packaging operations.
For electronic component manufacturing , maintaining cylinders in precision assembly equipment is vital. Such maintenance activities contribute to the accuracy and reliability required in this highly sensitive industry.
Within the automotive assembly sector, repairing compact cylinders used in assembly tools and testing fixtures helps to sustain production quality and minimize equipment failure.
In the food and beverage processing industry, regular maintenance of cylinders involved in processing and packaging lines is necessary to uphold hygiene standards and operational efficiency.
Overall, in general pneumatics , any application that demands reliable sealing and the restoration of compact cylinder performance can benefit from specialized maintenance and repair services.
