Product Description:

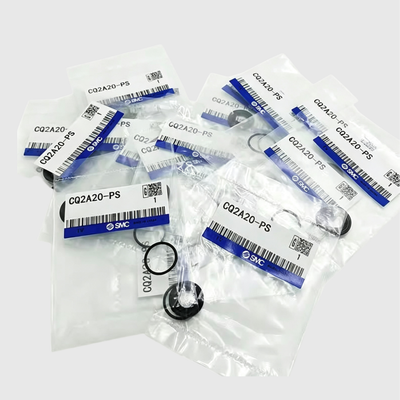

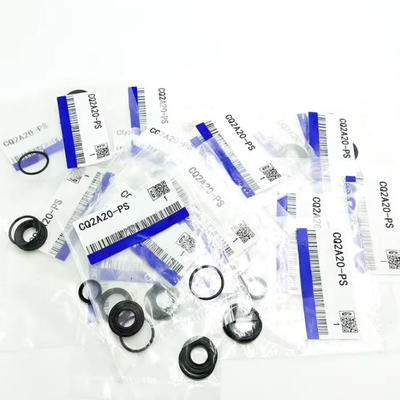

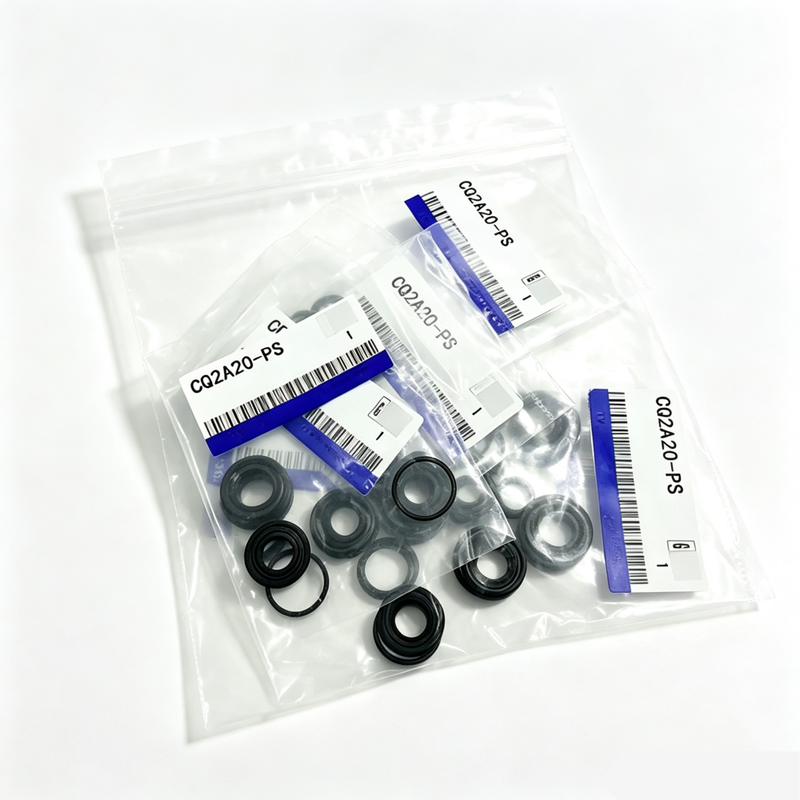

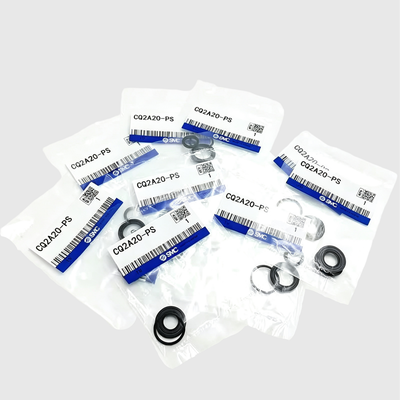

The SMC CQ2 Series seal kits are authentic replacement components specifically engineered for the maintenance and refurbishment of the CQ2A, CDQ2A, CQ2B, and CDQ2B series of compact pneumatic cylinders. These kits ensure that your cylinders continue to operate efficiently by providing all the necessary sealing parts in one package.
Each seal kit includes a comprehensive set of essential sealing elements such as the piston seal, rod seal, and tube gasket. These parts are crafted from premium quality NBR (nitrile rubber), which guarantees dependable performance and a prolonged service lifespan under varying operating conditions.
Available for bore diameters ranging from 12mm up to 100mm, the kits can be ordered according to the precise bore size of your pneumatic cylinder. This ensures a perfect fit and optimal sealing capability, helping to restore the cylinder's sealing integrity and prevent any air leakage that could compromise its function.
Designed to be compatible not only with the standard CQ2 series compact cylinders but also with the anti-lateral load versions, these seal kits deliver an economical solution. By using these kits, users can avoid the higher costs associated with replacing the entire cylinder assembly, while maintaining the cylinder’s optimal force and response speed.
Features:
Complete Seal Kit for Full Cylinder Overhaul
Each seal kit is comprehensive, containing a piston seal, rod seal, and tube gasket to ensure a thorough overhaul of your cylinder. This all-in-one package facilitates efficient maintenance and restores optimal functionality.
Authentic SMC Quality Assurance
Manufactured in strict accordance with SMC’s precise specifications, these seal kits guarantee a perfect fit and dependable sealing performance. Trust in genuine SMC products for durability and reliability.
Durable NBR Seal Material
Constructed from premium nitrile rubber (NBR), the seals exhibit excellent resistance to wear and compression set, making them ideal for use with industrial air media. Their robust material ensures long-lasting performance.
Extensive Bore Size Options
The kits are available to accommodate a wide range of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm. This variety ensures compatibility with many cylinder sizes.
Compatible with Multiple Cylinder Models
Designed to fit a variety of CQ2 family cylinders such as CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, and CQP2, these kits provide flexible application across many commonly used cylinders.
Restores Cylinder Performance
By replacing worn or damaged seals, the kit helps recover the original force, speed, and cushioning characteristics of your cylinder, ensuring it operates as effectively as when new.
Minimizes Downtime
The quick and straightforward seal replacement process reduces production interruptions, avoiding the need for costly full cylinder replacements and keeping your operations running smoothly.
Cost-Effective Maintenance Solution
Offering sealing performance comparable to new cylinders, these kits provide a budget-friendly maintenance option at a fraction of the replacement cost.
RoHS Compliant for Safety and Environment
The seal kits meet all necessary RoHS standards, ensuring they comply with environmental and safety regulations for industrial applications.
Wide Operating Temperature Range
Designed to function reliably within temperatures from -10°C to +70°C, these seals are suitable for a broad range of working environments.
Technical Parameters:
| Kit Contents | Piston Seal, Rod Seal, Tube Gasket |
| Series | CQ2 |
| Bore Sizes Available | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Mm |
| Product Type | Cylinder Seal Kit / Repair Kit |
| Seal Material | NBR |
| Operating Temperature | -10°C To +70°C |
| Brand | SMC |
| Compatible Cylinder Series | CQ2A, CDQ2A, CQ2B, CDQ2B, CQ2Z, CQP2, CQ2□S |
