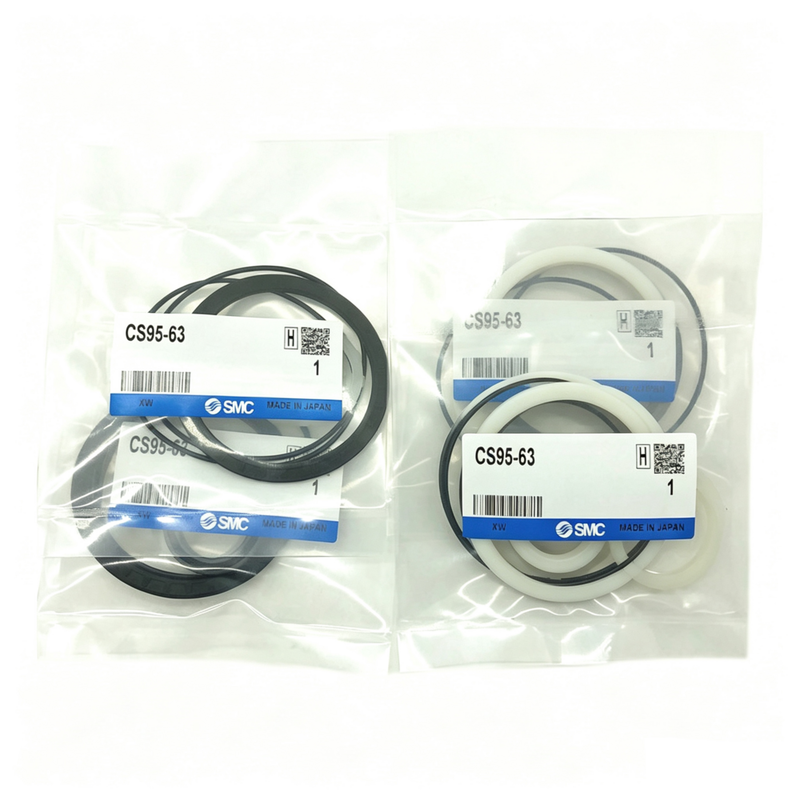

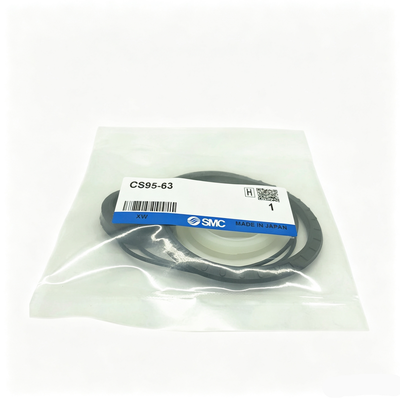

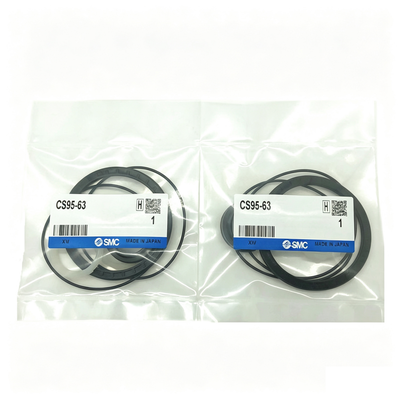

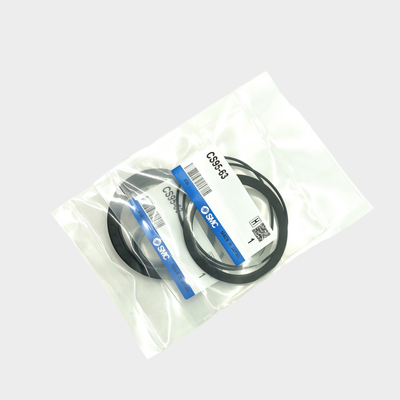

High Wear Resistant NBR Material 63mm Bore Size Pneumatic Cylinder Seal Kit for ISO 15552 Cylinders

Product Description:

These SMC cylinder seal kits are precisely engineered replacement sets, specifically designed for the maintenance and comprehensive overhaul of CS96 series tie rod pneumatic cylinders, which comply with ISO 15552 standards. The kits are available for a wide range of bore sizes, from 32mm to 160mm, making them versatile for various applications.

Each kit contains all the essential sealing components needed for a full cylinder rebuild. This includes the cushion seal, cushion valve seal, wear ring, piston seal, rod seal, and tube gasket. These parts ensure that the cylinder operates smoothly and efficiently after maintenance.

The seals are made from premium materials such as NBR (nitrile rubber), resin, and urethane. These high-quality materials provide excellent durability and reliable performance across diverse industrial pneumatic uses. Additionally, the kits support a temperature range from -10°C to +70°C and meet RoHS compliance standards.

To assist with proper installation, each kit includes a grease pack, with quantities adjusted to the bore size: 10g for 32-50mm bores, 20g for 63-80mm bores, 30g for 100mm bores, and 40g for 125-160mm bores. This ensures optimal lubrication for effective seal function.

Timely replacement of seals using these kits restores the cylinder’s performance, prevents air leakage, and significantly extends the service life of existing actuators. This maintenance approach offers a cost-effective alternative to completely replacing the cylinder.

The CS96 series cylinders are designed with a profile tube featuring enclosed tie rods. Their air cushion and bumper cushion combination notably reduce noise levels at the end of the stroke, contributing to quieter operation in pneumatic systems.

Features:

The Complete Seal Kit contains all necessary components for a full cylinder rebuild. Inside each kit, you will find cushion seals, cushion valve seals, wear rings, piston seals, rod seals, and tube gaskets, ensuring a comprehensive solution for maintenance needs.

These kits are available for a wide range of bore sizes including 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm, and 160mm cylinders. This variety makes it easy to find the right fit for different cylinder models.

Crafted from high-quality materials such as NBR (nitrile rubber), resin, and urethane, the seals exhibit excellent resistance to wear and compression set. They are specifically designed to withstand typical pneumatic media, ensuring durability and reliability.

The seal kits are compatible with CS96 series tie rod cylinders that comply with the ISO 15552 standard. This compatibility guarantees adherence to international quality benchmarks.

Each kit also includes a grease pack, which facilitates proper lubrication during installation, helping to achieve optimal performance and longevity of the seals.

By replacing worn seals using this kit, internal and external leakage issues can be effectively resolved. This restoration allows the cylinder to regain its original force and speed, improving overall functionality.

The design supports quiet operation, especially in cylinders equipped with air cushion and bumper cushion combinations. This feature significantly reduces noise at the end of the cylinder stroke.

Utilizing this seal kit offers a cost-effective maintenance solution. It provides an affordable alternative to purchasing a new cylinder while extending the service life of the existing actuator.

Installation is made quick and simple, with the kit designed for straightforward replacement using standard tools, minimizing downtime and effort.

Suitable for operating temperatures ranging from -10°C to +70°C, these seals are well-suited for a variety of environmental conditions.

The kit is RoHS compliant, satisfying environmental and safety standards to support responsible usage.

With just one kit number required per bore size, inventory management becomes easier, making these seal kits ideal for stocking.

Technical Parameters:

Applications:

In the realm of factory automation, the upkeep of tie rod cylinders plays a crucial role in ensuring the smooth operation of automated production lines. Regular maintenance helps in minimizing downtime and extending the lifespan of the equipment.

When it comes to material handling, repair services for cylinders used in conveyors, pick-and-place units, and various handling systems are essential. Proper cylinder repair guarantees consistent performance and efficient material flow throughout the facility.

Packaging machinery relies heavily on the proper functioning of sealing components. Replacing seals in cylinders within packaging and filling equipment is vital to maintain airtight operations and prevent leaks, ensuring product integrity.

In the field of electronic component manufacturing, precision assembly equipment demands meticulous cylinder maintenance. Routine servicing ensures accurate and reliable cylinder performance, which is key to producing high-quality electronic products.

The food and beverage processing industry utilizes seal kits specifically designed for cylinders in various processing and packaging lines. These kits help uphold hygiene standards while providing durable and efficient sealing solutions.

For general industrial pneumatics, any application that requires dependable sealing of ISO 15552 standard cylinders benefits from specialized maintenance and repair. Reliable sealing is fundamental to the overall effectiveness and safety of pneumatic systems.
