Product Description:

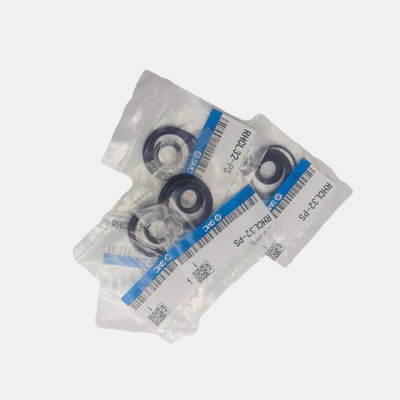

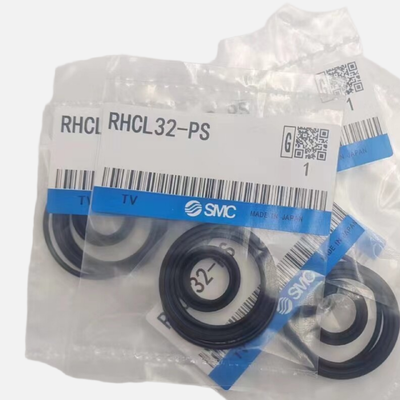

These cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and overhaul of RHC series high power pneumatic cylinders. They cater to bore sizes ranging from 20mm to 100mm and contain all the essential sealing components needed for a complete cylinder refurbishment. Each kit comprises a cushion seal, piston seal, wear ring, cylinder tube gasket, rod seal, and various O-rings.
The seals are constructed from premium materials such as NBR (nitrile rubber), special resin, and urethane, which provide outstanding durability and reliable performance in diverse industrial pneumatic applications. The RHC series is tailored for high-speed and heavy-load operations, incorporating a longer cushion design that can effectively halt heavy or fast-moving loads, all while retaining the straightforward design of a standard air cushion cylinder. Additionally, each kit includes a 10g grease pack to ensure proper lubrication during installation.
Using these seal replacement kits regularly helps restore the performance of your cylinders, prevents air leakage, and significantly extends the lifespan of existing actuators, offering a cost-effective alternative to full cylinder replacement. The kits are compatible with both RHCL and RHCB series of high power cylinders.
Note: Item 21, which is the piston gasket, is a non-replaceable part and therefore not included in the seal kit.
Features:
Complete Seal Kit Overview
The Complete Seal Kit is designed to provide everything needed for a full cylinder rebuild. Each kit contains a cushion seal, piston seal, wear ring, cylinder tube gasket, rod seal, and multiple O-rings, ensuring comprehensive maintenance and restoration of your pneumatic cylinder.
Available in a wide range of bore sizes, these kits fit cylinders with bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm. This variety makes it easy to find the appropriate kit for your specific application.
Manufactured using high-quality materials such as NBR (nitrile rubber), special resins, and urethane seals, these components provide excellent durability. They exhibit strong resistance to wear, compression set, and are compatible with typical pneumatic media, ensuring long-lasting performance.
The seal kits are expertly engineered for high power applications, perfectly suited for use with RHC series cylinders. These cylinders boast energy absorption capacities from 10 to 20 times greater than standard general-purpose cylinders.
Each kit includes a 10g grease pack to guarantee proper lubrication during installation. This helps to reduce wear and extend the life of the seals after replacement.
Performance and Maintenance Benefits
Replacing worn or damaged seals with this kit effectively eliminates internal and external leakage in cylinders. This restoration returns the cylinder's original force and speed, ensuring peak operational efficiency.
Designed to handle high-speed operations, the seal kits are suitable for cylinders running at speeds up to 3000 mm/s, especially under light to medium load conditions.
Opting for this seal kit is a cost-effective maintenance solution. It provides significant savings compared to purchasing a new cylinder and helps to extend the overall service life of your actuator.
Installation is quick and straightforward, requiring only standard tools. This ease of replacement minimizes downtime and simplifies routine maintenance processes.
The kits are suitable for operating environments with temperatures ranging from -10°C to +70°C, accommodating a variety of industrial applications.
Inventory Management
For convenience, each bore size is assigned a unique kit number, making it easier to manage and stock inventory efficiently. This streamlined approach helps keep your maintenance department well-prepared.
Technical Parameters:
| Kit Contents |
Cushion Seal, Piston Seal, Wear Ring, Tube Gasket, Rod Seal, O-rings |
| Series |
RHC / RHCL / RHCB |
| Bore Sizes |
20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm |
| Product Type |
Seal Kit / Repair Kit |
| Operating Temperature |
-10°C To +70°C |
| Seal Materials |
NBR |
| Description |
Solenoid valve sealing diaphragm, 2-way valve repair kit designed for efficient maintenance and reliable sealing performance. |
Applications:
High-Speed Automation
Maintenance services for cylinders used in high-speed automated production lines ensure smooth and efficient operation. These maintenance efforts help prevent downtime and maintain consistent performance under rapid cycling conditions.
Material Handling
We provide repair solutions for cylinders employed in conveyors, pick-and-place units, and various handling systems. Proper cylinder repair is critical to sustaining reliable material transport and positioning within industrial processes.
Clamping and Pressing
Our seal replacement services cater to cylinders involved in high-force clamping, lifting, and pressing tasks. Replacing worn seals helps maintain the necessary power and precision required in demanding mechanical operations.
Packaging Machinery
We offer seal kits specifically designed for cylinders used in high-speed packaging and filling machines. These kits help maintain the integrity and speed of packaging lines, minimizing downtime and product loss.
Electronic Component Manufacturing
Cylinder maintenance is crucial in precision assembly equipment within the electronics industry. Ensuring cylinders operate flawlessly supports the manufacturing of high-quality electronic components.
General Industrial Pneumatics
For any application requiring dependable, high-power cylinder sealing, our services provide effective solutions. Reliable sealing is vital across a wide range of industrial pneumatic applications to ensure safety and efficiency.
Support and Services:
Our Pulse Valve Diaphragm product is supported by a dedicated technical team committed to ensuring optimal performance and longevity of your equipment. We provide comprehensive installation guidance, troubleshooting assistance, and maintenance tips to help you maximize the efficiency of your pulse valve systems.
In addition to technical support, we offer a range of services including diaphragm replacement, performance testing, and customization options tailored to meet specific operational requirements. Our experts are available to consult on system integration and to recommend compatible components for seamless functionality.
We also supply detailed product documentation, including user manuals, specification sheets, and maintenance schedules, to assist you in proper handling and care of the pulse valve diaphragms. Regular updates and technical bulletins are provided to keep you informed about the latest advancements and best practices.
Commitment to quality and customer satisfaction is at the core of our support services, ensuring that you receive prompt and effective solutions whenever you need them.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first placed in a protective plastic sleeve to prevent contamination and damage. It is then securely positioned in a custom-molded foam insert within a sturdy cardboard box. This packaging method safeguards the product from shocks, vibrations, and environmental factors.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All shipments are handled with care, and we offer various shipping methods to meet customer requirements, including expedited and standard delivery services. International orders are packaged in compliance with customs regulations to avoid delays.
Our commitment is to deliver the Pulse Valve Diaphragm in perfect condition, ready for immediate use upon arrival.
