Product Description:

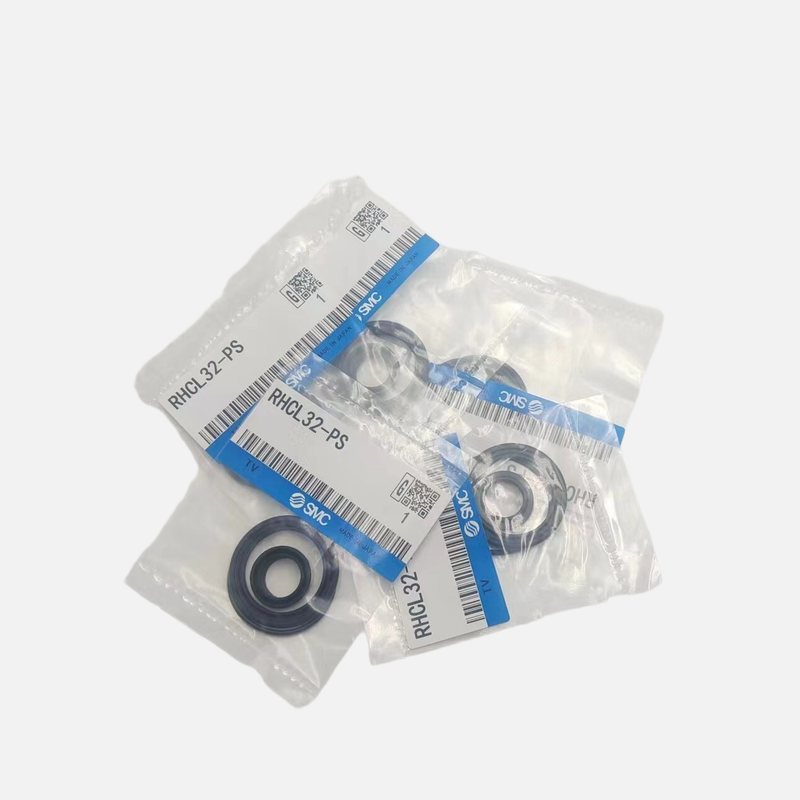

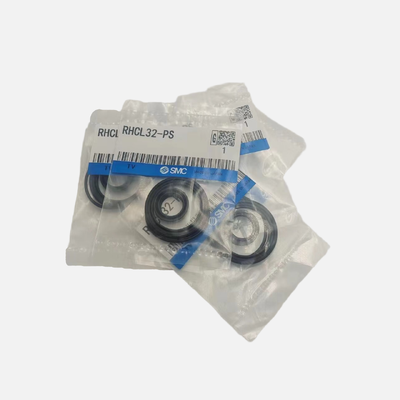

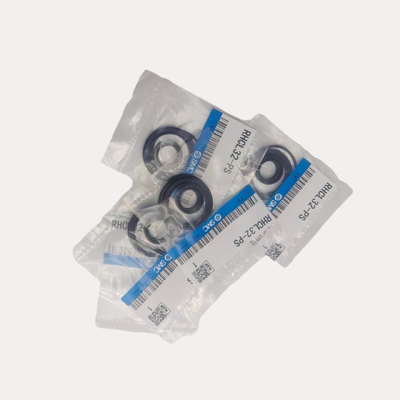

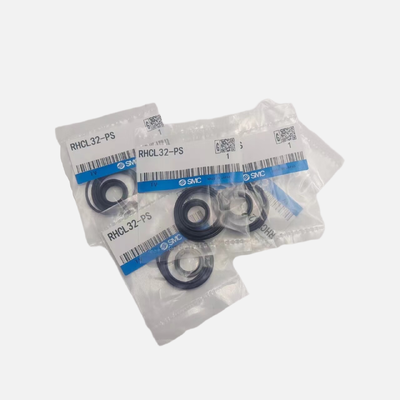

These cylinder seal kits are precision-engineered replacement sets created specifically for the maintenance and overhaul of RHC series high power pneumatic cylinders. They are compatible with bore sizes ranging from 20mm to 100mm. Each kit encompasses all the vital sealing components needed to perform a complete cylinder rebuild, including a cushion seal, piston seal, wear ring, cylinder tube gasket, rod seal, and multiple O-rings.
The seals are crafted from premium materials such as NBR (nitrile rubber), special resin, and urethane. This high-quality construction guarantees exceptional durability and reliable performance in a wide array of industrial pneumatic applications. The RHC series itself is engineered for demanding high-speed and heavy-load scenarios, featuring an extended cushion design that efficiently stops heavy or rapid loads, all while preserving the straightforward design typical of standard air cushion cylinders. Additionally, each kit contains a 10g grease pack to ensure proper lubrication throughout installation.
Regularly replacing seals using these kits significantly revitalizes cylinder performance, effectively prevents air leaks, and prolongs the service life of existing pneumatic actuators, all at a fraction of the cost compared to purchasing new cylinders. These replacement kits are designed to be fully compatible with both the RHCL and RHCB series of high power cylinders.
Note: Please be aware that Item 21, the piston gasket, is considered a non-replaceable part and therefore is not included within the seal kit.
Features:
Complete Seal Kit for Full Cylinder Rebuild
The Complete Seal Kit contains all necessary components for a thorough cylinder rebuild. This includes a cushion seal, piston seal, wear ring, cylinder tube gasket, rod seal, and O-rings. Each kit ensures that you have every essential part to restore your cylinder to optimal working condition.
Wide Range of Bore Sizes
These seal kits are available for a broad selection of bore sizes, including 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm cylinders. This extensive range ensures compatibility with various cylinder models and applications.
Durable and High-Quality Materials
Crafted from premium materials such as NBR (nitrile rubber), special resin, and urethane seals, the kit components offer exceptional resistance to wear, compression set, and common pneumatic media. These materials guarantee long-lasting performance under demanding conditions.
Designed for High Power Cylinders
The seal kits are tailored for RHC series cylinders, which have an energy absorption capacity 10 to 20 times greater than general-purpose cylinders. This high power design ensures reliability even in strenuous applications.
Included Grease Pack for Proper Lubrication
Each kit comes with a 10-gram grease pack to facilitate proper lubrication during installation, ensuring smooth operation and extending the lifetime of the seals and cylinder components.
Restores Original Cylinder Performance
By replacing worn seals, internal and external leakage is eliminated, which helps restore the cylinder’s original force and operational speed. This maintenance step is essential for maintaining efficiency.
Supports High-Speed Operation
These seals are suitable for cylinders that operate at speeds up to 3000 mm/s, handling light to medium loads effectively without compromising durability or functionality.
Cost-Effective Maintenance Solution
Utilizing this seal kit is a cost-efficient alternative to purchasing a new cylinder. It extends the service life of actuators while keeping maintenance expenses low.
Easy and Quick Installation
The kit is designed for simple replacement procedures that can be performed using standard tools, minimizing downtime and labor costs during maintenance.
Wide Operating Temperature Range
Suitable for applications ranging from -10°C to +70°C, these seals provide dependable performance across various environmental conditions.
Ideal for Inventory Management
With only one kit number needed for each bore size, managing stock is simplified, making it easier for maintenance teams to keep essential parts on hand.
Technical Parameters:
| Bore Sizes |
20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm |
| Product Type |
Seal Kit / Repair Kit |
| Operating Temperature |
-10°C To +70°C |
| Kit Contents |
Cushion Seal, Piston Seal, Wear Ring, Tube Gasket, Rod Seal, O-rings |
| Series |
RHC / RHCL / RHCB |
| Seal Materials |
NBR |
| Keywords |
ASCO series 210 diaphragm, pilot valve repair kit, ASCO 8210 series spare diaphragm |
Applications:
High-Speed Automation
Maintenance services focus on cylinders used within high-speed automated production lines. Ensuring these cylinders function efficiently is critical to maintaining continuous and rapid manufacturing processes.
Material Handling
Repair and upkeep of cylinders in material handling systems such as conveyors, pick-and-place units, and other automated handling equipment are essential. Proper cylinder maintenance enhances reliability and operational performance in these applications.
Clamping and Pressing
Cylinders used in high-force operations like clamping, lifting, and pressing require regular seal replacement. This helps maintain optimal sealing performance and ensures safety and effectiveness during demanding industrial tasks.
Packaging Machinery
Specialized seal kits are provided for cylinders incorporated in high-speed packaging and filling machinery. These kits help extend the service life of cylinders and minimize downtime in packaging operations.
Electronic Component Manufacturing
Precision assembly equipment in electronic component manufacturing relies on well-maintained cylinders. Regular maintenance supports accuracy and consistency in these critical manufacturing processes.
General Industrial Pneumatics
For any industrial application demanding reliable, high-power cylinder sealing, thorough maintenance and appropriate seal replacement are paramount. This ensures dependable performance across various pneumatic systems.
